MqContextC - the class known as ctx or context is the application-handle of the application-server and also the main data-handle … More...

Inheritance diagram for csmqmsgque.MqContextC:

Collaboration diagram for csmqmsgque.MqContextC:

Classes
struct	MqCall

Public Member Functions
delegate void	MqServiceICB ()
	implements the csmqmsgque API object: public version from MqTokenF as method

delegate void	MqServiceCCB (MqContextC ctx)
	implements the csmqmsgque API object: public version from MqTokenF as static

new MqContextC	Next ()
	`C#: MqContextC ctx.Next()` → C-API get next instance from linked-list of MqContextS type

new MqContextC	Prev ()
	`C#: MqContextC ctx.Prev()` → C-API get previous instance from linked-list of MqContextS type

MqFactoryC	ClassFactoryGet ()
	`C#: MqFactoryC ctx.ClassFactoryGet()` → C-API get the MqFactoryC used by the MqContextC

void	ClassFactorySet (MqFactoryC item)
	`C#: ctx.ClassFactorySet(MqFactoryC item)` → C-API link the MqContextC to a new MqFactoryC

string	ClassIdentGet ()
	`C#: string ctx.ClassIdentGet()` → C-API get the application-identification …

void	ClassIdentSet (string ident)
	`C#: ctx.ClassIdentSet(string ident)` → C-API link the MqContextC to a new MqFactoryC identified by ident

string	ClassOriginalIdentGet ()
	`C#: string ctx.ClassOriginalIdentGet()` → C-API get the MqFactoryS.originalIdent from the MqContextC

MkBufferListC	ConfigGetIoTcpL ()
	`C#: MkBufferListC ctx.ConfigGetIoTcpL()` → C-API get the configuration-data of the tcp-client-server-link as MkBufferListC …

int	ConfigGetBuffersize ()
	`C#: int ctx.ConfigGetBuffersize()` → C-API get the minimum of the read/send buffersize of the socket

MqIdentE	ConfigGetIdentFrom ()
	`C#: MqIdentE ctx.ConfigGetIdentFrom()` → C-API get the MqConfigS.identFrom

int	ConfigGetIoPipe ()
	`C#: int ctx.ConfigGetIoPipe()` → C-API return the MqIoPipeConfigS

string	ConfigGetIoUds ()
	`C#: string ctx.ConfigGetIoUds()` → C-API return the MqIoUdsConfigS

bool	ConfigGetIsParent ()
	`C#: bool ctx.ConfigGetIsParent()` → C-API does the context object is a parent ? An objext is a parent id the MqConfigS.parent attribute is null

bool	ConfigGetIsServer ()
	`C#: bool ctx.ConfigGetIsServer()` → C-API does the context object is a server ?

bool	ConfigGetIsString ()
	`C#: bool ctx.ConfigGetIsString()` → C-API does the context object is using the string-mode ?

string	ConfigGetName ()
	`C#: string ctx.ConfigGetName()` → C-API get the name of the context object

int	ConfigGetPkgsize ()
	`C#: int ctx.ConfigGetPkgsize()` → C-API get the maximun size of a BDY package

string	ConfigGetPostfix ()
	`C#: string ctx.ConfigGetPostfix()` → C-API get the MqConfigS.dispPostfix

string	ConfigGetPrefix ()
	`C#: string ctx.ConfigGetPrefix()` → C-API get the MqConfigS.dispPrefix

MqStartE	ConfigGetStartAs ()
	`C#: MqStartE ctx.ConfigGetStartAs()` → C-API return the MqConfigS.startAs value

MqStatusIsEF	ConfigGetStatusIs ()
	`C#: MqStatusIsEF ctx.ConfigGetStatusIs()` → C-API return the MqContextS.statusIs value

string	ConfigGetStorage ()
	`C#: string ctx.ConfigGetStorage()` → C-API get the storage of the context object

long	ConfigGetTimeout ()
	`C#: long ctx.ConfigGetTimeout()` → C-API get the timeout value of the context object

void	ConfigSetConfigFile (string filename)
	`C#: ctx.ConfigSetConfigFile(string filename)` → C-API set the config-file and parse for well-known config-items

List< object >	ConfigGetIoTcp ()
	`C#: {host:string port:string myhost:string myport:string} ctx.ConfigGetIoTcp()` → C-API get the configuration-data of the tcp-client-server-link …

void	ConfigReset ()
	`C#: ctx.ConfigReset()` → C-API clean the MqContextS.config data

bool	ConfigCheckStartAs (MqStartE data)
	`C#: bool ctx.ConfigCheckStartAs(MqStartE data)` → C-API check if MqConfigS.startAs can be set to data

void	ConfigSetAllDebug (int data)
	`C#: ctx.ConfigSetAllDebug(int data)` → C-API set the MkRuntimeS::debug value

void	ConfigSetBuffersize (int data)
	`C#: ctx.ConfigSetBuffersize(int data)` → C-API set the MqIoConfigS.buffersize value

void	ConfigSetDaemon (string pidfile)
	`C#: ctx.ConfigSetDaemon(string pidfile)` → C-API start the server-context as daemon …

void	ConfigSetIdentFrom (MqIdentE data)
	`C#: ctx.ConfigSetIdentFrom(MqIdentE data)` → C-API set the MqConfigS.identFrom value

void	ConfigSetIgnoreExit (bool data)
	`C#: ctx.ConfigSetIgnoreExit(bool data)` → C-API set the MqSetupS.ignoreExit value

void	ConfigSetIoPipe (int fh)
	`C#: ctx.ConfigSetIoPipe(int fh)` → C-API set the pipe configuration data …

void	ConfigSetIoTcp (string host=null, string port=null, string myhost=null, string myport=null)
	`C#: ctx.ConfigSetIoTcp(string host = null, string port = null, string myhost = null, string myport = null)` → C-API configure a context to use a tcp-client-server-link …

void	ConfigSetIoTcp (MkBufferListC vals)
	`C#: ctx.ConfigSetIoTcp(MkBufferListC vals)` → C-API configure a context to use a tcp-client-server-link …

void	ConfigSetIoUds (string file)
	`C#: ctx.ConfigSetIoUds(string file)` → C-API configure a context to use a uds-client-server-link …

void	ConfigSetIsServer (bool data)
	`C#: ctx.ConfigSetIsServer(bool data)` → C-API set the MqSetupS.isServer value

void	ConfigSetIsString (bool data)
	`C#: ctx.ConfigSetIsString(bool data)` → C-API set the MqConfigS.native value 'S'string or 'L'owEndian or 'B'igEndian

void	ConfigSetName (string data)
	`C#: ctx.ConfigSetName(string data)` → C-API set the MqConfigS.dispName value and cleanup old value

void	ConfigSetPkgsize (int data)
	`C#: ctx.ConfigSetPkgsize(int data)` → C-API set the MqIoConfigS.pkgsize value

void	ConfigSetPostfix (string data)
	`C#: ctx.ConfigSetPostfix(string data)` → C-API set the client-part (2) of the application-identifer MqConfigS.dispName …

void	ConfigSetPrefix (string data)
	`C#: ctx.ConfigSetPrefix(string data)` → C-API set the server-part (1) of the application-identifer MqConfigS.dispName …

void	ConfigSetStartAs (MqStartE data)
	`C#: ctx.ConfigSetStartAs(MqStartE data)` → C-API set the MqConfigS.startAs value

void	ConfigSetStartAsString (string data)
	`C#: ctx.ConfigSetStartAsString(string data)` → C-API set the MqConfigS.startAs value using string `default`, `thread`, `fork` or `spawn`

void	ConfigSetStorage (string data)
	`C#: ctx.ConfigSetStorage(string data)` → C-API set the Storage value and cleanup old value

void	ConfigSetTimeout (long data)
	`C#: ctx.ConfigSetTimeout(long data)` → C-API set the MqIoConfigS.timeout value

void	EnvProtect ()
	`C#: ctx.EnvProtect()` → C-API protect the service-environment

void	EnvRestore ()
	`C#: ctx.EnvRestore()` → C-API restore the service-environment

MkErrorC	ErrorFORMAT ()
	`C#: MkErrorC fmtobj.ErrorFORMAT()` → C-API helper used to access MkErrorDEFAULT from MqContextC

MkErrorE	ErrorCopy (MqContextC sourceCtx)
	`C#: MkErrorE targetCtx.ErrorCopy(MqContextC sourceCtx)` → C-API copy a MkErrorS from the sourceCtx to the targetCtx …

MkErrorE	ErrorMove (MqContextC sourceCtx)
	`C#: MkErrorE targetCtx.ErrorMove(MqContextC sourceCtx)` → C-API move a MkErrorS from the sourceCtx to the targetCtx …

MqContextC	LinkGetParent ()
	`C#: MqContextC ctx.LinkGetParent()` → C-API get the initial parent-context from a client/server link …

void	LinkConnect ()
	`C#: ctx.LinkConnect()` → C-API re-connect a client-server-link after a server crash or a network downtime …

void	LinkCreate (MkBufferListC args=null)
	`C#: ctx.LinkCreate(MkBufferListC args = null)` → C-API make ctx to a parent-context and setup a new client-server-link …

void	LinkCreateChild (MqContextC parent, MkBufferListC args=null)
	`C#: ctx.LinkCreateChild(MqContextC parent, MkBufferListC args = null)` → C-API make a context to a child-context on-top of an existing parent-client-server-link …

void	LinkCreateChild (MqContextC parent, params string[] args)
	`C#: ctx.LinkCreateChild(MqContextC parent, MkBufferListC args = null)` → C-API make a context to a child-context on-top of an existing parent-client-server-link …

void	LinkCreate (params string[] args)
	`C#: ctx.LinkCreate(MkBufferListC args = null)` → C-API make ctx to a parent-context and setup a new client-server-link …

void	LinkDelete ()
	`C#: ctx.LinkDelete()` → C-API close the client-server-link …

int	LinkGetCtxId ()
	`C#: int ctx.LinkGetCtxId()` → C-API get an identifier which is unique per parent-or-child-context …

string	LinkGetTargetIdent ()
	`C#: string ctx.LinkGetTargetIdent()` → C-API get the ident of the link-target …

bool	LinkIsConnected ()
	`C#: bool ctx.LinkIsConnected()` → C-API is the context connected? …

bool	LinkIsParent ()
	`C#: bool ctx.LinkIsParent()` → C-API is the context a parent-context? …

void	LinkShutdown ()
	`C#: ctx.LinkShutdown()` → C-API shutdown the communication with a server

void	LogConfig (MkObjectC fmtobj=null, int debug=0, [CallerMemberName]string callfunc=null, int lvl=0)
	`C#: ctx.LogConfig(MkObjectC fmtobj = null, int debug = 0, [CallerMemberName]string callfunc = null, int lvl = 0)` → C-API log the MqContextC part MqConfigS …

void	LogEnv (MkObjectC fmtobj=null, int debug=0, [CallerMemberName]string callfunc=null, int lvl=0)
	`C#: ctx.LogEnv(MkObjectC fmtobj = null, int debug = 0, [CallerMemberName]string callfunc = null, int lvl = 0)` → C-API log the MqContextC part MqEnvS …

void	LogLink (MkObjectC fmtobj=null, int debug=0, [CallerMemberName]string callfunc=null, int lvl=0)
	`C#: ctx.LogLink(MkObjectC fmtobj = null, int debug = 0, [CallerMemberName]string callfunc = null, int lvl = 0)` → C-API log the MqContextC part MqLinkS …

void	LogSetup (MkObjectC fmtobj=null, int debug=0, [CallerMemberName]string callfunc=null, int lvl=0)
	`C#: ctx.LogSetup(MkObjectC fmtobj = null, int debug = 0, [CallerMemberName]string callfunc = null, int lvl = 0)` → C-API log the MqContextC part MqSetupS …

void	LogShort (MkObjectC fmtobj=null, int debug=0, [CallerMemberName]string callfunc=null, int lvl=0, string label=null)
	`C#: ctx.LogShort(MkObjectC fmtobj = null, int debug = 0, [CallerMemberName]string callfunc = null, int lvl = 0, string label = null)` → C-API log the MqContextC with less info then MqContextLog …

new void	LogType (MkObjectC fmtobj=null, int debug=0, [CallerMemberName]string callfunc=null, int lvl=0)
	`C#: ctx.LogType(MkObjectC fmtobj = null, int debug = 0, [CallerMemberName]string callfunc = null, int lvl = 0)` → C-API log the MqContextC part MkTypeS …

string	LogParentOrChild ()
	`C#: string ctx.LogParentOrChild()` → C-API is ctx a PARENT or a CHILD ? …

string	LogServerOrClient ()
	`C#: string ctx.LogServerOrClient()` → C-API is ctx a SERVER or a CLIENT ? …

MkBufferC	GetBuffer ()
	`C#: MkBufferC ctx.GetBuffer()` → C-API get the MqContextS.ctxbuf object

MqContextC	GetRoot ()
	`C#: MqContextC ctx.GetRoot()` → C-API get the Root (toplevel initial context)

int	Exit ([CallerMemberName]string callfunc=null, [CallerFilePath]string callfile=null, [CallerLineNumber]int callline=-1)
	`C#: int ctx.Exit([CallerMemberName]string callfunc = null, [CallerFilePath]string callfile = null, [CallerLineNumber]int callline = -1)` → C-API delete the context and exit the current process or thread …

void	ProcessEvent (MqWaitOnEventE wait=MqWaitOnEventE.NO, long timeout=(long) MkTimeoutE.DEFAULT)
	`C#: ctx.ProcessEvent(MqWaitOnEventE wait = MqWaitOnEventE.NO, long timeout = (long)MkTimeoutE.DEFAULT)` → C-API enter the event-loop and wait for an incoming service-request. …

void	ProxyForward (MqContextC targetCtx, MqDumpC dump=null, long timeout=(long) MkTimeoutE.DEFAULT)
	`C#: sourceCtx.ProxyForward(MqContextC targetCtx, MqDumpC dump = null, long timeout = (long)MkTimeoutE.DEFAULT)` → C-API send the entire read-data-package-data to the link-target …

void	ProxyItem (MqContextC targetCtx)
	`C#: sourceCtx.ProxyItem(MqContextC targetCtx)` → C-API Copy a single-data-item from the sourceCtx to the targetCtx.

MkBufferListC	ReadALL (MkBufferListC val_inout=null)
	`C#: MkBufferListC ctx.ReadALL(MkBufferListC val_inout = null)` → C-API get a temporary MkBufferListC from all data in the read-data-package …

MkBufferListC	ReadBFL ()
	`C#: MkBufferListC ctx.ReadBFL()` → C-API get a temporary MkBufferListC from next list-item in the read-data-package …

MkBufferC	ReadBUF ()
	`C#: MkBufferC ctx.ReadBUF()` → C-API get a temporary MkBufferC from the read-data-package …

byte[]	ReadBIN ()
	`C#: doc_mq_cs_ReadBIN` → C-API generic function to read an MK_BIN object from the read-data-package object …

bool	ReadBOL ()
	`C#: doc_mq_cs_ReadBOL` → C-API read a PRIMITIVE TYPE from the read-data-package …

byte[]	ReadBinaryR ()
	`C#: byte[] ctx.ReadBinaryR()` → C-API read a MkBinaryR from the read-data-package …

double	ReadDBL ()
	`C#: doc_mq_cs_ReadDBL` → C-API read a PRIMITIVE TYPE from the read-data-package …

float	ReadFLT ()
	`C#: doc_mq_cs_ReadFLT` → C-API read a PRIMITIVE TYPE from the read-data-package …

Int32	ReadHDL ()
	`C#: Int32 ctx.ReadHDL()` → C-API read the handle from the read-data-package

short	ReadI16 ()
	`C#: doc_mq_cs_ReadI16` → C-API read a PRIMITIVE TYPE from the read-data-package …

int	ReadI32 ()
	`C#: doc_mq_cs_ReadI32` → C-API read a PRIMITIVE TYPE from the read-data-package …

long	ReadI64 ()
	`C#: doc_mq_cs_ReadI64` → C-API read a PRIMITIVE TYPE from the read-data-package …

byte	ReadI8 ()
	`C#: doc_mq_cs_ReadI8` → C-API read a PRIMITIVE TYPE from the read-data-package …

long	ReadLONG ()
	`C#: long ctx.ReadLONG()` → C-API read the long native object from the read-data-package

string	ReadSTR ()
	`C#: doc_mq_cs_ReadSTR` → C-API read a PRIMITIVE TYPE from the read-data-package …

string	ReadStringR ()
	`C#: string ctx.ReadStringR()` → C-API read a MkStringR from the read-data-package …

void	ReadL_END ()
	`C#: ctx.ReadL_END()` → C-API finish to extract a list-items from the read-data-package. …

void	ReadL_START (MkBufferC buf=null)
	`C#: ctx.ReadL_START(MkBufferC buf = null)` → C-API start to extract a list-items from the read-data-package. …

void	ReadT_END ()
	`C#: ctx.ReadT_END()` → C-API finish to extract a longterm-transaction-item from the read-data-package. …

void	ReadT_START ()
	`C#: ctx.ReadT_START()` → C-API start to extract a longterm-transaction-item from the read-data-package. …

void	ReadDbg ()
	ReadDbg

MkTypeE	ReadGetNextType ()
	`C#: MkTypeE ctx.ReadGetNextType()` → C-API get the type (MkTypeE) of the next Item in the read-data-buffer or "0" if not available

int	ReadGetNumItems ()
	`C#: int ctx.ReadGetNumItems()` → C-API get the number of items left in the read-data-package …

bool	ReadItemExists ()
	`C#: bool ctx.ReadItemExists()` → C-API check if an item exists in the read-data-package …

void	ReadUndo ()
	`C#: ctx.ReadUndo()` → C-API undo the last MqContextC READ API function call …

MkBufferListC	RouteGetTree ()
	`C#: MkBufferListC ctx.RouteGetTree()` → C-API create an overview about all available routing-target and services …

void	RouteCreate (string route, string service, bool overwrite=false)
	`C#: ctx.RouteCreate(string route, string service, bool overwrite = false)` → C-API create/delete a routing-link between context an a service using route

void	RouteDelete (string route, string service, bool overwrite=false)
	`C#: ctx.RouteDelete(string route, string service, bool overwrite = false)` → C-API delete a routing-link created with MqRouteCreate

MqContextC[]	RouteResolve (string ident, int retnum=-1)
	`C#: MqContextC[] ctx.RouteResolve(string ident, int retnum = -1)` → C-API return a list of all context belonging to ident …

void	RouteTraverse (string service, MkBufferListC args=null)
	`C#: ctx.RouteTraverse(string service, MkBufferListC args = null)` → C-API traverse a tree down and call service if available.

void	RouteTraverse (string service, params string[] args)
	`C#: ctx.RouteTraverse(string service, MkBufferListC args = null)` → C-API traverse a tree down and call service if available.

string	RouteGetPath ()
	`C#: string ctx.RouteGetPath()` → C-API return the absolut route-connection-string up to the current ctx …

void	SendBFL (MkBufferListC val)
	`C#: ctx.SendBFL(MkBufferListC val)` → C-API append a MkBufferListC object to the send-data-package object …

void	SendBIN (byte[] val)
	`C#: doc_mq_cs_SendBIN` → C-API append a MK_BIN object to the send-data-package. …

void	SendBOL (bool val)
	`C#: doc_mq_cs_SendBOL` → C-API MqContextC - append a native PRIMITIVE TYPE value to the send-data-package …

void	SendBUF (MkBufferC val)
	`C#: ctx.SendBUF(MkBufferC val)` → C-API append a MkBufferC object to the send-data-package object …

void	SendBUS_FLAT (MkBufferStreamC val)
	`C#: ctx.SendBUS_FLAT(MkBufferStreamC val)` → C-API append a MkBufferStreamC object to the send-data-package object …

void	SendBinaryR (byte[] val)
	`C#: ctx.SendBinaryR(byte[] val)` → C-API append a MkBinaryR object to the send-data-package. …

void	SendDBL (double val)
	`C#: doc_mq_cs_SendDBL` → C-API MqContextC - append a native PRIMITIVE TYPE value to the send-data-package …

void	SendFLT (float val)
	`C#: doc_mq_cs_SendFLT` → C-API MqContextC - append a native PRIMITIVE TYPE value to the send-data-package …

void	SendHDL (Int32 val)
	`C#: ctx.SendHDL(Int32 val)` → C-API send the handle to the send-data-package

void	SendI16 (short val)
	`C#: doc_mq_cs_SendI16` → C-API MqContextC - append a native PRIMITIVE TYPE value to the send-data-package …

void	SendI32 (int val)
	`C#: doc_mq_cs_SendI32` → C-API MqContextC - append a native PRIMITIVE TYPE value to the send-data-package …

void	SendI64 (long val)
	`C#: doc_mq_cs_SendI64` → C-API MqContextC - append a native PRIMITIVE TYPE value to the send-data-package …

void	SendI8 (byte val)
	`C#: doc_mq_cs_SendI8` → C-API MqContextC - append a native PRIMITIVE TYPE value to the send-data-package …

void	SendLONG (long val)
	`C#: ctx.SendLONG(long val)` → C-API send the long native object to the send-data-package

void	SendLTR (int transLId)
	SendLTR

void	SendL_FLAT (MkBufferListC val)
	`C#: ctx.SendL_FLAT(MkBufferListC val)` → C-API append a MkBufferListC object as flat list of items to the send-data-package object …

void	SendSTR (string val)
	`C#: doc_mq_cs_SendSTR` → C-API MqContextC - append a native PRIMITIVE TYPE value to the send-data-package …

void	SendStringR (string val)
	`C#: ctx.SendStringR(string val)` → C-API MqContextC - append a native PRIMITIVE TYPE value to the send-data-package …

void	SendEND (string token, long timeout=(long) MkTimeoutE.DEFAULT)
	`C#: ctx.SendEND(string token, long timeout = (long)MkTimeoutE.DEFAULT)` → C-API MqContextC - finish the send-data-block and call synchronous/asynchronous a remote-service …

void	SendEND_AND_CALLBACK (string token, MqServiceCCB callback, long timeout=(long) MkTimeoutE.DEFAULT)
	`C#: ctx.SendEND_AND_CALLBACK(string token, MqServiceICB\|MqServiceCCB\|MqServiceIF callback, long timeout = (long)MkTimeoutE.DEFAULT)` → C-API finish the send-data-block, call the remote service, do not-wait for the result but expect the result on a callback …

void	SendEND_AND_CALLBACK (string token, MqServiceICB callback, long timeout=(long) MkTimeoutE.DEFAULT)
	`C#: ctx.SendEND_AND_CALLBACK(string token, MqServiceICB\|MqServiceCCB\|MqServiceIF callback, long timeout = (long)MkTimeoutE.DEFAULT)` → C-API finish the send-data-block, call the remote service, do not-wait for the result but expect the result on a callback …

void	SendEND_AND_CALLBACK (string token, MqServiceIF callback, long timeout=(long) MkTimeoutE.DEFAULT)
	`C#: ctx.SendEND_AND_CALLBACK(string token, MqServiceICB\|MqServiceCCB\|MqServiceIF callback, long timeout = (long)MkTimeoutE.DEFAULT)` → C-API finish the send-data-block, call the remote service, do not-wait for the result but expect the result on a callback …

void	SendEND_AND_SUB (string token, MqServiceCCB callback, long timeout=(long) MkTimeoutE.DEFAULT)
	`C#: ctx.SendEND_AND_SUB(string token, MqServiceICB\|MqServiceCCB\|MqServiceIF callback, long timeout = (long)MkTimeoutE.DEFAULT)` → C-API finish the send-data-block, call the remote service, do wait for the result and expect multiple sub-results on a callback …

void	SendEND_AND_SUB (string token, MqServiceICB callback, long timeout=(long) MkTimeoutE.DEFAULT)
	`C#: ctx.SendEND_AND_SUB(string token, MqServiceICB\|MqServiceCCB\|MqServiceIF callback, long timeout = (long)MkTimeoutE.DEFAULT)` → C-API finish the send-data-block, call the remote service, do wait for the result and expect multiple sub-results on a callback …

void	SendEND_AND_SUB (string token, MqServiceIF callback, long timeout=(long) MkTimeoutE.DEFAULT)
	`C#: ctx.SendEND_AND_SUB(string token, MqServiceICB\|MqServiceCCB\|MqServiceIF callback, long timeout = (long)MkTimeoutE.DEFAULT)` → C-API finish the send-data-block, call the remote service, do wait for the result and expect multiple sub-results on a callback …

void	SendEND_AND_TRANSACTION (string token, string callback, long timeout=(long) MkTimeoutE.DEFAULT)
	`C#: ctx.SendEND_AND_TRANSACTION(string token, string callback, long timeout = (long)MkTimeoutE.DEFAULT)` → C-API finish the send-data-block, call the remote service to do a longterm-transaction-call …

void	SendEND_AND_WAIT (string token, long timeout=(long) MkTimeoutE.DEFAULT)
	`C#: ctx.SendEND_AND_WAIT(string token, long timeout = (long)MkTimeoutE.DEFAULT)` → C-API finish the send-data-block, call the remote service and wait for result…

void	SendSTART ()
	`C#: ctx.SendSTART()` → C-API initialize the send-data-package. …

void	SendSYNC ()
	`C#: ctx.SendSYNC()` → C-API garantee that all pending asynchronous-service-calls are processed. …

void	SendL_END ()
	`C#: ctx.SendL_END()` → C-API finish to append an embedded body-list-item to the send-data-package. …

void	SendL_START ()
	`C#: ctx.SendL_START()` → C-API start to append an embedded body-list-item to the send-data-package. …

void	SendT_END ()
	`C#: ctx.SendT_END()` → C-API closed a longterm-transaction-item …

void	SendT_START ()
	`C#: ctx.SendT_START()` → C-API open a longterm-transaction-item …

void	SendERROR ()
	`C#: ctx.SendERROR()` → C-API send the data from the MkErrorC to the link target . …

void	SendRETURN ()
	`C#: ctx.SendRETURN()` → C-API MqContextC - finish the send-data-block on the server and optional return the results. …

void	SendRETURN_SUB ()
	`C#: ctx.SendRETURN_SUB()` → C-API return Sub-Data-Blocks required by MqSendEND_AND_SUB …

void	ServiceCreate (string token, MqServiceCCB callback)
	`C#: ctx.ServiceCreate(string token, MqServiceICB\|MqServiceCCB\|MqServiceIF callback)` → C-API create a link between a service-token and a service-callback …

void	ServiceCreate (string token, MqServiceICB callback)
	`C#: ctx.ServiceCreate(string token, MqServiceICB\|MqServiceCCB\|MqServiceIF callback)` → C-API create a link between a service-token and a service-callback …

void	ServiceCreate (string token, MqServiceIF callback)
	`C#: ctx.ServiceCreate(string token, MqServiceICB\|MqServiceCCB\|MqServiceIF callback)` → C-API create a link between a service-token and a service-callback …

void	ServiceDelete (string token)
	`C#: ctx.ServiceDelete(string token)` → C-API delete a service. …

bool	ServiceIsTransaction ()
	`C#: bool ctx.ServiceIsTransaction()` → C-API check if the ongoing-service-call belongs to a transaction …

void	ServiceProxy (string token, int id=(int) MqSlaveE.OTHER)
	`C#: ctx.ServiceProxy(string token, int id = (int)MqSlaveE.OTHER)` → C-API create a service to link a master-context with a slave-context. …

void	ServiceProxyCtx (string token, MqContextC target)
	`C#: ctx.ServiceProxyCtx(string token, MqContextC target)` → C-API same as MqServiceProxy but use an MqContextC as input.

bool	ServiceProxyCtxExists (string token, MqContextC target)
	`C#: bool ctx.ServiceProxyCtxExists(string token, MqContextC target)` → C-API check if service who belongs to token is a proxy-service

void	ServiceProxyRoundRobin (string token, string ident)
	`C#: ctx.ServiceProxyRoundRobin(string token, string ident)` → C-API create a proxy-service using Round-Robin as load-balancer …

void	ServiceStorage (string token)
	`C#: ctx.ServiceStorage(string token)` → C-API setup a service listen on a MqContextC_ServiceApi_Identifer and save all read-data-package into the STORAGE …

bool	ServiceTokenCheck (string token)
	`C#: bool ctx.ServiceTokenCheck(string token)` → C-API in an ongoing-service-call check if the current MqContextC_ServiceApi_Identifer is *token* …

bool	ServiceTokenExists (string token)
	`C#: bool ctx.ServiceTokenExists(string token)` → C-API check if the MqContextC_ServiceApi_Identifer *token* is defined as *ctx* service …

string	ServiceTokenGet ()
	`C#: string ctx.ServiceTokenGet()` → C-API in an ongoing-service-call get the current MqContextC_ServiceApi_Identifer …

MqContextC	SlaveGetMaster ()
	`C#: MqContextC ctx.SlaveGetMaster()` → C-API opposite function of MqSlaveGetFilter

MqContextC	SlaveGet (int id)
	`C#: MqContextC ctx.SlaveGet(int id)` → C-API get the slave-context from a master-context …

MqContextC	SlaveGetFilter ()
	`C#: MqContextC ctx.SlaveGetFilter()` → C-API get the filter-ctx or the master-ctx …

MqContextC	SlaveGetProxy (int id)
	`C#: MqContextC ctx.SlaveGetProxy(int id)` → C-API on slave return the master and on master return the slave identified by id.

bool	SlaveCheck (int id)
	`C#: bool ctx.SlaveCheck(int id)` → C-API check if slave-id is valid

void	SlaveCreate (int id, MqContextC slave)
	`C#: ctx.SlaveCreate(int id, MqContextC slave)` → C-API create a master/slave link between the master-parent-context and the slave-parent-context …

void	SlaveDelete (int id)
	`C#: ctx.SlaveDelete(int id)` → C-API Delete a slave object from a master/slave link identified by id. …

bool	SlaveIs ()
	`C#: bool ctx.SlaveIs()` → C-API is the context a slave-context ? …

void	SlaveWorker (int id, string fct="WORKER", MkBufferListC args=null)
	`C#: ctx.SlaveWorker(int id, string fct = "WORKER", MkBufferListC args = null)` → C-API create a master/slave link using the image of the ctx object self. …

void	SlaveWorker (int id, string fct="WORKER", params string[] args)
	`C#: ctx.SlaveWorker(int id, string fct = "WORKER", MkBufferListC args = null)` → C-API create a master/slave link using the image of the ctx object self. …

int	StorageDelete (int transLIdP_inout=0)
	`C#: int ctx.StorageDelete(int transLIdP_inout = 0)` → C-API delete the storage-row identified by the *transLIdP_inout* …

int	StorageImport (int transLIdP_inout=0)
	`C#: int ctx.StorageImport(int transLIdP_inout = 0)` → C-API import the storage-package into the read-data-package …

void	StorageClose ()
	`C#: ctx.StorageClose()` → C-API close the storage. …

void	StorageDecrRef (int transLId)
	`C#: ctx.StorageDecrRef(int transLId)` → C-API decrease the internal refCount lock of the database-entry

void	StorageIncrRef (int transLId)
	`C#: ctx.StorageIncrRef(int transLId)` → C-API increase the internal refCount lock of the database-entry

void	StorageLog ([CallerMemberName]string callfunc=null)
	`C#: ctx.StorageLog([CallerMemberName]string callfunc = null)` → C-API log the storage the status of the open transactions

void	StorageOpen (string storageFile)
	`C#: ctx.StorageOpen(string storageFile)` → C-API switch to a file-based-transaction-database …

int	StorageCount ()
	`C#: int ctx.StorageCount()` → C-API count the number of storage-rows …

int	StorageErrCnt (int transLId)
	`C#: int ctx.StorageErrCnt(int transLId)` → C-API increment and return the database row-error-count for the row defined with transLId

int	StorageExport ()
	`C#: int ctx.StorageExport()` → C-API export the read-data-package into the STORAGE …

List< object >	StorageResolve ()
	`C#: {otherCtxP:MqContextC otherLIdP:int} ctx.StorageResolve()` → C-API extract the `context->link.protect.rmtTransLId` entry from the database

	MqContextC (MqContextC tmpl=null)
	CONSTRUCTOR.


object	ReadNEXT ()
	`C#: object ctx.ReadNEXT()` → C-API get the next argument as native object …

List< object >	ReadLIST ()
	`C#: List<object> ctx.ReadLIST()` → C-API get all arguments as native list …


void	ConfigSetIoTcp (List< object > items)

void	ConfigSetIoTcp (params object[] items)

void	ConfigSetIoTcp (params string[] items)

Public Member Functions inherited from csmkkernel::MkObjectC
delegate void	MkObjectDeleteSCB (string typeName, int typeHdl, int objHdl)

void	ErrorCheck (MkErrorE err)

bool	Check ()

string	ToNameOfClass ()

void	HandleDelete ()

bool	HandleExists ()

Int32	HandleGet ()

Int32	HandleGetOfType ()

Int32	HandleGetOr0 ()

MkObjectC	Next ()

MkObjectC	Prev ()

void	DbgDump (string message="var",[CallerMemberName]string callfunc=null)

void	DbgL (string message, int debug=0,[CallerMemberName]string callfunc=null, int lvl=0)

void	DbgLogC ([CallerMemberName]string callfunc=null)

void	DbgO ([CallerMemberName]string callfunc=null)

void	DbgSTACK (int skip=0, int num=-1,[CallerMemberName]string callfunc=null)

void	LogC (string message, int debug=0,[CallerMemberName]string callfunc=null)

void	LogHEX (string callfunc, byte[] data)

void	Log (MkObjectC fmtobj=null, int debug=0,[CallerMemberName]string callfunc=null, int lvl=0)

void	LogLong (MkObjectC fmtobj=null, int debug=0,[CallerMemberName]string callfunc=null, int lvl=0)

void	LogShort (MkObjectC fmtobj=null, int debug=0,[CallerMemberName]string callfunc=null, int lvl=0)

void	LogType (MkObjectC fmtobj=null, int debug=0,[CallerMemberName]string callfunc=null, int lvl=0)

MkErrorC	ErrorCatch (Exception exception=null,[CallerMemberName]string callfunc=null)

MkErrorC	ToError ()

bool	IsNull ()

string	ToName ()

string	ToNameOfType ()

override string	ToString ()

int	RefGet ()

void	SysKill (int pid, int signal)

int	SysGetPid ()

void	Dispose ()

void	Delete ()

Static Public Member Functions

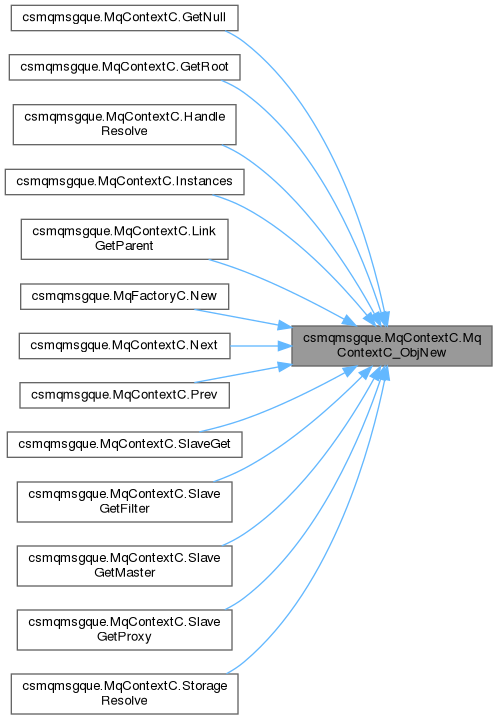

static MqContextC	MqContextC_ObjNew (IntPtr hdl)

static MqContextC	MqContextC_ObjNewOrNull (IntPtr hdl)

new static MqContextC	HandleResolve (Int32 netHdl)
	`C#: [static] MqContextC MqContextC.HandleResolve(Int32 netHdl)` → C-API Handle-Resolve-Slot - return a MqContextC from *netHdl* or null if invalid…

new static MqContextC	Instances ()
	`C#: [static] MqContextC MqContextC.Instances()` → C-API get head-instance from linked-list of MqContextS type …

new static MqContextC	GetNull ()
	`C#: [static] MqContextC MqContextC.GetNull()` → C-API Null-Slot - return a MqContextC typed `NULL` instance …

static MqContextC	Create (MqContextC tmpl=null)
	`C#: [constructor,static] MqContextC MqContextC.Create(MqContextC tmpl = null)` → C-API create and initialize the MqContextC ...

Static Public Member Functions inherited from csmkkernel::MkObjectC
static MkObjectC	MkObjectC_ObjNew (IntPtr hdl)

static IntPtr	getOBJ (string cls, MkObjectC obj)

static IntPtr	getOBJ_null_allow (MkObjectC obj)

static MkObjectC	HandleResolve (Int32 netHdl)

static void	HandleDeleteByNetHdl (Int32 netHdl)

static MkObjectC	Instances ()

static MkObjectC	GetNull ()

static void	DbgM (string message, int debug=0,[CallerMemberName]string callfunc=null, int lvl=0)

static int	SysHashI32 (string key, int length=-1)

static string	SysHashSTR (string key, int length=-1)

static void	DeleteCallbackCleanup (string ident)

static void	DeleteCallbackSetup (string ident, MkObjectDeleteSCB callback=null, string filter=null)

static int	getPId ()

static int	getTId ()

static string	getStackTrace (int level=2)

static string	getCallerProc (int level=2)

static int	getCallerLine (int level=2)

static string	getCallerFile (int level=2)

Static Protected Member Functions
static IntPtr	CTOR (MqContextC tmpl=null)
	`C#: [constructor,static] MqContextC MqContextC.Create(MqContextC tmpl = null)` → C-API create and initialize the MqContextC ...

Static Protected Member Functions inherited from csmkkernel::MkObjectC
static object	atomObjNew (Type type, ConstructorInfo ctor, IntPtr obj)

static object	atomObjCreate (Type type, ConstructorInfo ctor, IntPtr obj)

static IntPtr	atomSelfCreate (ConstructorInfo ctor, IntPtr obj, IntPtr env)

static object	atomSelfNull (ConstructorInfo ctor)

static void	atomSelfUnlink (IntPtr self, IntPtr env)

static ConstructorInfo	getCtor (Type type)

static string	Name (IntPtr mkrt, IntPtr obj)

Object	Send (string callSig, MqServiceICB data, params object[] objv)

Object	Send (string callSig, MqServiceCCB data, params object[] objv)

Object	Send (string callSig, MqServiceIF data, params object[] objv)

Object	Send (string callSig, params object[] objv)

Additional Inherited Members
Protected Member Functions inherited from csmkkernel::MkObjectC
	MkObjectC (IntPtr obj)

	MkObjectC ()

virtual void	Dispose (bool disposing)

Protected Attributes inherited from csmkkernel::MkObjectC
IntPtr	pmkrt

Properties inherited from csmkkernel::MkObjectC
IntPtr	hdl

IntPtr	hdl_null_allow

IntPtr	mkrt

Detailed Description

MqContextC - the class known as ctx or context is the application-handle of the application-server and also the main data-handle …

The context is the package-item with the required features and created by the implementation-layer-programmer. The context can be a client or a server.

HOWTO client-context

The client-context-creation is triggerd by the software-workflow on demand. The client is calling the MqLinkCreate to create a connection to the server using the connection-arguments to specify the target.

The life-cycle of a client is:

ContextCreate	create and initialize the MqContextC ...
LinkCreate	make ctx to a parent-context and setup a new client-server-link …
SendTT	MqContextC - append a native PRIMITIVE TYPE value to the send-data-package …
ReadTT	read a PRIMITIVE TYPE from the read-data-package …
LinkDelete	close the client-server-link …
ContextDelete	Destructor - delete a MqContextC instance …
Exit	delete the context and exit the current process or thread …

HOWTO server-context

The server-context-creation is always triggerd by the MqLinkCreate command of the client. The server is usually using a factory-constructor to call the MqContextCreate and finally to call the MqContextDelete.
The server-context is fully under control of the client.

The life-cycle of a server is:

SETUP	define a class and add the setup/cleanup code
MqServerSetupIF	define the server-setup-interface (callback) used on startup …
ServiceCreate	create a link between a service-token and a service-callback …
MqServerCleanupIF	define the server-cleanup-interface (callback) used on cleanup …
ServiceDelete	delete a service. …
STARTUP	define the factory and start the listener
FactoryAdd	Add a new MqFactoryC identified by factory-identifier and defined by factory-constructor …
FactoryNew	create a new MqContextC from a MqFactoryC …
LinkCreate	make ctx to a parent-context and setup a new client-server-link …
ProcessEvent	enter the event-loop and wait for an incoming service-request. …
WORK	process the service-calls and exit on end
ReadTT	read a PRIMITIVE TYPE from the read-data-package …
SendTT	MqContextC - append a native PRIMITIVE TYPE value to the send-data-package …
Exit	delete the context and exit the current process or thread …

MqContextC CTOR and DTOR

command	alias
`[constructor,static] MqContextC MqContextC.Create(MqContextC tmpl = null)`	`csmqmsgque.MqContextC(?tmpl:MqContextC=nil?)`
`[destructor] ctx.Delete()`	`ctx = None`

Definition at line 21 of file MqHigh.cs.

Member Function Documentation

◆ MqContextC_ObjNew()

static MqContextC csmqmsgque.MqContextC.MqContextC_ObjNew ( IntPtr hdl )

inlinestatic

Definition at line 42 of file MqContextC.cs.

                                                            {
      return hdl != IntPtr.Zero ? (MqContextC) atomObjNew(typeof(MqContextC), ctor, hdl) : MK_NULL.Value;
    }

Here is the caller graph for this function:

◆ MqContextC_ObjNewOrNull()

static MqContextC csmqmsgque.MqContextC.MqContextC_ObjNewOrNull ( IntPtr hdl )

inlinestatic

Definition at line 78 of file MqContextC.cs.

                                                                  {
      return hdl != IntPtr.Zero ? (MqContextC) atomObjNew(typeof(MqContextC), ctor, hdl) : null;
    }

Here is the caller graph for this function:

◆ MqServiceCCB()

delegate void csmqmsgque.MqContextC.MqServiceCCB ( MqContextC ctx )

implements the csmqmsgque API object: public version from MqTokenF as static

◆ MqServiceICB()

delegate void csmqmsgque.MqContextC.MqServiceICB ( )

implements the csmqmsgque API object: public version from MqTokenF as method

◆ Send() [1/4]

Object csmqmsgque.MqContextC.Send	(	string	callSig,
		MqServiceCCB	data,
		params object[]	objv )

inline

Definition at line 369 of file MqHigh.cs.

                                                                                {
      IntPtr data_ptr = (IntPtr)GCHandle.Alloc(new MqCall(mkrt,data));
      return SendHigh(callSig, data_ptr, objv, 3);
    }

◆ Send() [2/4]

Object csmqmsgque.MqContextC.Send	(	string	callSig,
		MqServiceICB	data,
		params object[]	objv )

inline

Definition at line 364 of file MqHigh.cs.

                                                                                {
      IntPtr data_ptr = (IntPtr)GCHandle.Alloc(new MqCall(mkrt,data));
      return SendHigh(callSig, data_ptr, objv, 3);
    }

◆ Send() [3/4]

Object csmqmsgque.MqContextC.Send	(	string	callSig,
		MqServiceIF	data,
		params object[]	objv )

inline

Definition at line 374 of file MqHigh.cs.

                                                                               {
      IntPtr data_ptr = (IntPtr)GCHandle.Alloc(new MqCall(mkrt,data));
      return SendHigh(callSig, data_ptr, objv, 3);
    }

◆ Send() [4/4]

Object csmqmsgque.MqContextC.Send	(	string	callSig,
		params object[]	objv )

inline

Definition at line 379 of file MqHigh.cs.

                                                             {
      return SendHigh(callSig, IntPtr.Zero, objv, 2);
    }

The documentation for this class was generated from the following files:

Classes

Public Member Functions

Static Public Member Functions

Static Protected Member Functions

Additional Inherited Members

Detailed Description

MqContextC CTOR and DTOR

Member Function Documentation

◆ MqContextC_ObjNew()

◆ MqContextC_ObjNewOrNull()

◆ MqServiceCCB()

◆ MqServiceICB()

◆ Send() [1/4]

◆ Send() [2/4]

◆ Send() [3/4]

◆ Send() [4/4]
