MkErrorC - the class known as err or error is used to create and manage an error message … More...

Inheritance diagram for csmkkernel.MkErrorC:

Collaboration diagram for csmkkernel.MkErrorC:

Public Member Functions
new MkErrorC	Next ()
	`C#: MkErrorC err.Next()` → C-API get next instance from linked-list of MkErrorS type

new MkErrorC	Prev ()
	`C#: MkErrorC err.Prev()` → C-API get previous instance from linked-list of MkErrorS type

MkErrorE	GetCode ()
	`C#: MkErrorE err.GetCode()` → C-API get the value of MkErrorS::code …

int	GetNum ()
	`C#: int err.GetNum()` → C-API get the MkErrorS::num. The number can be used as exit-code …

long	GetSize ()
	`C#: long err.GetSize()` → C-API get the error-message-size from the exception-object …

string	GetText ()
	`C#: string err.GetText()` → C-API get the MkErrorS::text …

MkErrorC	Catch (Exception exception=null, [CallerMemberName]string callfunc=null)
	`C#: MkErrorC err.Catch(Exception exception = null, [CallerMemberName]string callfunc = null)` → C-API convert a programming-language-error into an csmkkernel error …

void	Cleanup ([CallerMemberName]string callfunc=null, [CallerLineNumber]int callline=-1)
	`C#: err.Cleanup([CallerMemberName]string callfunc = null, [CallerLineNumber]int callline = -1)` → C-API cleanup and print unwanted active error …

void	Println (string msg="", [CallerMemberName]string callfunc=null, [CallerLineNumber]int callline=-1)
	`C#: err.Println(string msg = "", [CallerMemberName]string callfunc = null, [CallerLineNumber]int callline = -1)` → C-API print the default-error to the MkLogFileC (default: stderr) and clear the error afterwards …

void	Reset ([CallerMemberName]string callfunc=null, [CallerLineNumber]int callline=-1, bool force=false)
	`C#: err.Reset([CallerMemberName]string callfunc = null, [CallerLineNumber]int callline = -1, bool force = false)` → C-API This function clears the err and resets to MK_OK …

MkErrorE	Stack ([CallerMemberName]string callfunc=null, [CallerFilePath]string callfile=null, [CallerLineNumber]int callline=-1)
	`C#: MkErrorE err.Stack([CallerMemberName]string callfunc = null, [CallerFilePath]string callfile = null, [CallerLineNumber]int callline = -1)` → C-API check on error and if yes append an ErrorStackFormat to the error-message …

void	StackFormat ([CallerMemberName]string callfunc=null, [CallerFilePath]string callfile=null, [CallerLineNumber]int callline=-1)
	`C#: err.StackFormat([CallerMemberName]string callfunc = null, [CallerFilePath]string callfile = null, [CallerLineNumber]int callline = -1)` → C-API append an ensemble of func, file and line to the error-message …

MkErrorC	NoRaise ()
	`C#: MkErrorC err.NoRaise()` → C-API ignore the next return of MK_ERROR and do not raise an target-language-exception …

void	AppendC (string message)
	`C#: err.AppendC(string message)` → C-API append the message to the MkErrorS::text …

void	Raise ()
	`C#: err.Raise()` → C-API convert an csmkkernel error into an programming-language-error and raise afterwards. …

void	SetC (string message, [CallerMemberName]string callfunc=null, int errnum=-1)
	`C#: err.SetC(string message, [CallerMemberName]string callfunc = null, int errnum = -1)` → C-API 'set' and 'raise' the MkErrorC using a string-message and a errnum-number …

bool	IsABORT ()
	`C#: bool err.IsABORT()` → C-API check on *ABORT* signal …

bool	IsEXIT ()
	`C#: bool err.IsEXIT()` → C-API check on APPLICATION-EXIT error …

bool	IsSOCKET ()
	`C#: bool err.IsSOCKET()` → C-API check on SOCKET-DOWN error …

bool	IsTIMEOUT ()
	`C#: bool err.IsTIMEOUT()` → C-API check on *TIMEOUT* error …

void	SetABORT (string detail="UNKNOWN", [CallerMemberName]string callfunc=null)
	`C#: err.SetABORT(string detail = "UNKNOWN", [CallerMemberName]string callfunc = null)` → C-API send the *ABORT* signal to the calling stack…

void	SetCONTINUE ()
	`C#: err.SetCONTINUE()` → C-API signal end of processing in an MqMqEventIF callback …

void	SetCode (MkErrorE code)
	`C#: err.SetCode(MkErrorE code)` → C-API set the MkErrorS::code value …

void	SetEXIT ([CallerMemberName]string callfunc=null)
	`C#: err.SetEXIT([CallerMemberName]string callfunc = null)` → C-API finish the current callback, return to toplevel and MqExit the application …

void	SetSOCKET (string detail="UNKNOWN", [CallerMemberName]string callfunc=null)
	`C#: err.SetSOCKET(string detail = "UNKNOWN", [CallerMemberName]string callfunc = null)` → C-API create SOCKET-DOWN error …

MkErrorC	Dup ()
	`C#: [constructor] MkErrorC srce.Dup()` → C-API Dup-Constructor - create a new MkErrorC instance as copy from an existing MkErrorC instance …

void	Copy (MkErrorC srce)
	`C#: dest.Copy(MkErrorC srce)` → C-API Copy-Constructor - sync an existing MkErrorC instance with the values from an existing MkErrorC instance …

Public Member Functions inherited from csmkkernel.MkObjectC
delegate void	MkObjectDeleteSCB (string typeName, int typeHdl, int objHdl)
	implements the csmkkernel API object: public version from MkObjectDeleteSCB as method

void	ErrorCheck (MkErrorE err)

bool	Check ()

string	ToNameOfClass ()
	`C#: string obj.ToNameOfClass()` → C-API Class-Slot - returns the C#-Class-Name of the obj as string

void	HandleDelete ()
	`C#: netObj.HandleDelete()` → C-API Handle-Delete-Slot - delete a *netObj* from handle-storage …

bool	HandleExists ()
	`C#: bool obj.HandleExists()` → C-API check if *obj* has already a handle defined…

Int32	HandleGet ()
	`C#: Int32 obj.HandleGet()` → C-API Handle-Get-Slot - returns a *export-hdl* to the MkObjectC useable for external storage

Int32	HandleGetOfType ()
	`C#: Int32 obj.HandleGetOfType()` → C-API Export-Slot - returns *typeHdl* of the *obj* .

Int32	HandleGetOr0 ()
	`C#: Int32 obj.HandleGetOr0()` → C-API return *export-hdl* or 0 in not created…

MkObjectC	Next ()
	`C#: MkObjectC obj.Next()` → C-API get next instance from linked-list of MkObjectS type

MkObjectC	Prev ()
	`C#: MkObjectC obj.Prev()` → C-API get previous instance from linked-list of MkObjectS type

void	DbgDump (string message="var", [CallerMemberName]string callfunc=null)
	`C#: obj.DbgDump(string message = "var", [CallerMemberName]string callfunc = null)` → C-API debug: Dump a instance to stderr with LNG and MQ internal data…

void	DbgL (string message, int debug=0, [CallerMemberName]string callfunc=null, int lvl=0)
	`C#: fmtobj.DbgL(string message, int debug = 0, [CallerMemberName]string callfunc = null, int lvl = 0)` → C-API debug: write a instance-marker to the MkLogFileC (default: stderr) using the fmtobj as prefix …

void	DbgLogC ([CallerMemberName]string callfunc=null)
	`C#: obj.DbgLogC([CallerMemberName]string callfunc = null)` → C-API debug: write a short-obj-summary to MkLogFileC (default: stderr) …

void	DbgO ([CallerMemberName]string callfunc=null)
	`C#: obj.DbgO([CallerMemberName]string callfunc = null)` → C-API debug: write the object-details to MkLogFileC (default: stderr) …

void	DbgSTACK (int skip=0, int num=-1, [CallerMemberName]string callfunc=null)
	`C#: fmtobj.DbgSTACK(int skip = 0, int num = -1, [CallerMemberName]string callfunc = null)` → C-API debug: write the stack-trace to MkLogFileC (default: stderr) …

void	LogC (string message, int debug=0, [CallerMemberName]string callfunc=null)
	`C#: fmtobj.LogC(string message, int debug = 0, [CallerMemberName]string callfunc = null)` → C-API write a logging-message to MkLogFileC (default: stderr) using the internal format …

void	LogHEX (string callfunc, byte[] data)
	`C#: fmtobj.LogHEX(string callfunc, byte[] data)` → C-API log binaray data as HEX into the MkLogFileC (default: stderr) …

void	Log (MkObjectC fmtobj=null, int debug=0, [CallerMemberName]string callfunc=null, int lvl=0)
	`C#: obj.Log(MkObjectC fmtobj = null, int debug = 0, [CallerMemberName]string callfunc = null, int lvl = 0)` → C-API Log-Slot - log a summary of an object to the MkLogFileC (default: stderr) target …

void	LogLong (MkObjectC fmtobj=null, int debug=0, [CallerMemberName]string callfunc=null, int lvl=0)
	`C#: obj.LogLong(MkObjectC fmtobj = null, int debug = 0, [CallerMemberName]string callfunc = null, int lvl = 0)` → C-API log the MkObjectS verbose into the MkLogFileC (default: stderr) …

void	LogShort (MkObjectC fmtobj=null, int debug=0, [CallerMemberName]string callfunc=null, int lvl=0)
	`C#: obj.LogShort(MkObjectC fmtobj = null, int debug = 0, [CallerMemberName]string callfunc = null, int lvl = 0)` → C-API log the MkObjectS into the MkLogFileC (default: stderr) …

void	LogType (MkObjectC fmtobj=null, int debug=0, [CallerMemberName]string callfunc=null, int lvl=0)
	`C#: obj.LogType(MkObjectC fmtobj = null, int debug = 0, [CallerMemberName]string callfunc = null, int lvl = 0)` → C-API log the tyoe of the MkObjectS into the MkLogFileC (default: stderr) …

MkErrorC	ErrorCatch (Exception exception=null, [CallerMemberName]string callfunc=null)
	`C#: MkErrorC obj.ErrorCatch(Exception exception = null, [CallerMemberName]string callfunc = null)` → C-API convert a programming-language-error into an csmkkernel error …

MkErrorC	ToError ()
	`C#: MkErrorC obj.ToError()` → C-API Error-Slot - return an error-object pre initialized with *obj* data.

bool	IsNull ()
	`C#: bool obj.IsNull()` → C-API ckeck if the object is null

string	ToName ()
	`C#: string obj.ToName()` → C-API Info-Slot - returns brief information about the obj as a string

string	ToNameOfType ()
	`C#: string obj.ToNameOfType()` → C-API Type-Slot - returns the LibMkKernel-Type-Name of the obj as a string

override string	ToString ()
	`C#: string inst.ToString()` → C-API String-Slot - returns the string representation of the *inst* …

int	RefGet ()
	MkRefGetP

void	SysKill (int pid, int signal)
	MkSysKill

int	SysGetPid ()
	MkSysGetPid

void	Dispose ()
	`C#: [destructor] obj.Dispose()` → C-API Dispose-Slot - untie the connection between the Native-C#-Instance and the csmkkernel-Instance.

void	Delete ()
	`C#: [destructor] obj.Delete()` → C-API Delete-Slot - delete an instance.

Static Public Member Functions

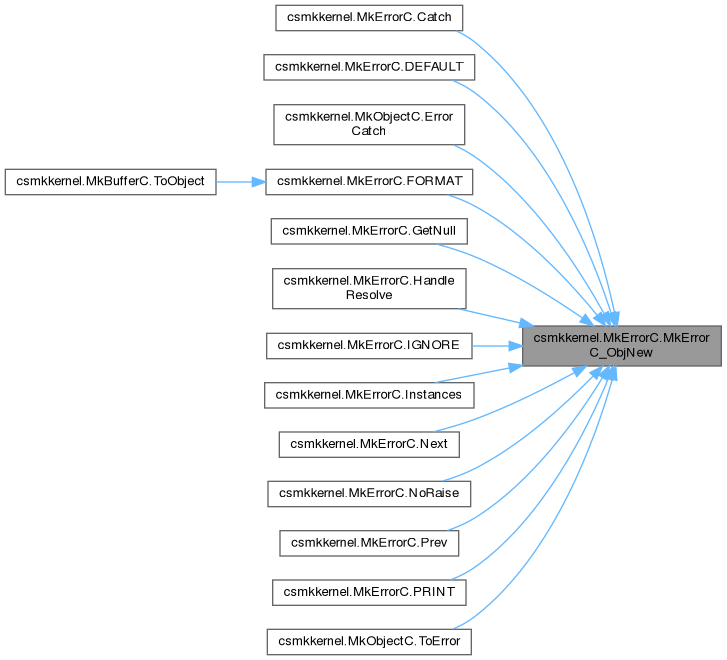

static MkErrorC	MkErrorC_ObjNew (IntPtr hdl)

static void	Check (IntPtr ctx, MkErrorE err)

static void	Check (MkErrorE err)

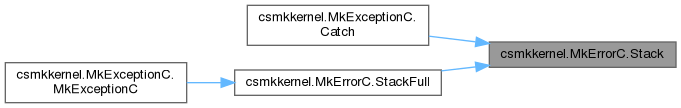

static MkErrorE	Stack (IntPtr mkrt, IntPtr hdl, [CallerMemberName]string callfunc=null, [CallerFilePath]string callfile=null, [CallerLineNumber]int callline=-1)
	`C#: MkErrorE err.Stack([CallerMemberName]string callfunc = null, [CallerFilePath]string callfile = null, [CallerLineNumber]int callline = -1)` → C-API check on error and if yes append an ErrorStackFormat to the error-message …

static MkErrorE	StackFull (IntPtr mkrt, IntPtr hdl)
	`C#: MkErrorE err.Stack([CallerMemberName]string callfunc = null, [CallerFilePath]string callfile = null, [CallerLineNumber]int callline = -1)` → C-API check on error and if yes append an ErrorStackFormat to the error-message …

new static MkErrorC	HandleResolve (Int32 netHdl)
	`C#: [static] MkErrorC MkErrorC.HandleResolve(Int32 netHdl)` → C-API Handle-Resolve-Slot - return a MkErrorC from *netHdl* or null if invalid…

new static MkErrorC	Instances ()
	`C#: [static] MkErrorC MkErrorC.Instances()` → C-API get head-instance from linked-list of MkErrorS type …

new static MkErrorC	GetNull ()
	`C#: [static] MkErrorC MkErrorC.GetNull()` → C-API Null-Slot - return a MkErrorC typed `NULL` instance …

static void	PanicC (MkObjectC fmtobj, string callfunc, int errnum, string message)
	`C#: [static] MkErrorC.PanicC(MkObjectC fmtobj, string callfunc, int errnum, string message)` → C-API do a panic with string as argument …

static void	PanicDEFAULT (MkObjectC fmtobj=null, [CallerMemberName]string callfunc=null)
	`C#: [static] MkErrorC.PanicDEFAULT(MkObjectC fmtobj = null, [CallerMemberName]string callfunc = null)` → C-API make panic from MkErrorDEFAULT_RT …

static MkErrorC	DEFAULT ()
	`C#: [static] MkErrorC MkErrorC.DEFAULT()` → C-API default-system-error - default-error …

static MkErrorC	FORMAT (MkObjectC fmtobj=null)
	`C#: [static] MkErrorC MkErrorC.FORMAT(MkObjectC fmtobj = null)` → C-API system-error-format - format and return the default-error …

static MkErrorC	IGNORE ()
	`C#: [static] MkErrorC MkErrorC.IGNORE()` → C-API ignore-system-error - ignore the next error …

static MkErrorC	PRINT ()
	`C#: [static] MkErrorC MkErrorC.PRINT()` → C-API ignore-system-error - print the next error into MkLogFileC …

Static Public Member Functions inherited from csmkkernel.MkObjectC
static MkObjectC	MkObjectC_ObjNew (IntPtr hdl)

static IntPtr	getOBJ (string cls, MkObjectC obj)

static IntPtr	getOBJ_null_allow (MkObjectC obj)

static MkObjectC	HandleResolve (Int32 netHdl)
	`C#: [static] MkObjectC MkObjectC.HandleResolve(Int32 netHdl)` → C-API Handle-Resolve-Slot - return a MkObjectC from *netHdl* or null if invalid…

static void	HandleDeleteByNetHdl (Int32 netHdl)
	`C#: [static] MkObjectC.HandleDeleteByNetHdl(Int32 netHdl)` → C-API Handle-Delete-Slot - delete a *netHdl* from handle-storage …

static MkObjectC	Instances ()
	`C#: [static] MkObjectC MkObjectC.Instances()` → C-API get head-instance from linked-list of MkObjectS type …

static MkObjectC	GetNull ()
	`C#: [static] MkObjectC MkObjectC.GetNull()` → C-API Null-Slot - return a MkObjectC typed `NULL` instance …

static void	DbgM (string message, int debug=0, [CallerMemberName]string callfunc=null, int lvl=0)
	`C#: [static] MkObjectC.DbgM(string message, int debug = 0, [CallerMemberName]string callfunc = null, int lvl = 0)` → C-API debug: write a static-marker to the MkLogFileC (default: stderr) …

static int	SysHashI32 (string key, int length=-1)
	MkSysHashI32

static string	SysHashSTR (string key, int length=-1)
	MkSysHashSTR

static void	DeleteCallbackCleanup (string ident)
	`C#: [static] MkObjectC.DeleteCallbackCleanup(string ident)` → C-API cleanup the DeleteCallback installed with MkObjectDeleteCallbackSetup …

static void	DeleteCallbackSetup (string ident, MkObjectDeleteSCB callback=null, string filter=null)
	`C#: [static] MkObjectC.DeleteCallbackSetup(string ident, MkObjectDeleteSCB callback = null, string filter = null)` → C-API Create/Delete the instance-delete-callback …

static int	getPId ()

static int	getTId ()

static string	getStackTrace (int level=2)

static string	getCallerProc (int level=2)

static int	getCallerLine (int level=2)

static string	getCallerFile (int level=2)

Additional Inherited Members
Protected Member Functions inherited from csmkkernel.MkObjectC
	MkObjectC (IntPtr obj)

	MkObjectC ()

virtual void	Dispose (bool disposing)
	Support IDisposable.

Static Protected Member Functions inherited from csmkkernel.MkObjectC
static object	atomObjNew (Type type, ConstructorInfo ctor, IntPtr obj)

static object	atomObjCreate (Type type, ConstructorInfo ctor, IntPtr obj)

static IntPtr	atomSelfCreate (ConstructorInfo ctor, IntPtr obj, IntPtr env)

static object	atomSelfNull (ConstructorInfo ctor)

static void	atomSelfUnlink (IntPtr self, IntPtr env)

static ConstructorInfo	getCtor (Type type)

static string	Name (IntPtr mkrt, IntPtr obj)
	`C#: string obj.ToName()` → C-API Info-Slot - returns brief information about the obj as a string

Protected Attributes inherited from csmkkernel.MkObjectC
IntPtr	pmkrt = IntPtr.Zero

Package Functions inherited from csmkkernel.MkObjectC
Static Package Functions inherited from csmkkernel.MkObjectC
Properties inherited from csmkkernel.MkObjectC
IntPtr	hdl `[get, set]`

IntPtr	hdl_null_allow `[get, set]`

IntPtr	mkrt `[get, set]`

Detailed Description

MkErrorC - the class known as err or error is used to create and manage an error message …

An error is a singleton object per thread created at startup and is located at MkRuntimeRLS using the datatype MkErrorC.

‍As error-indicator the enum MkErrorE is used.

The MkErrorC is used to collect all data needed to handle an error and provide global ressources required to process and report the error.

The MkErrorC is also used to integrate the error-handling from csmkkernel into the error-handling-code of the target C#.

Example from Filter6.cs → use MqContextErrorCatch to convert a C# error into a csmkkernel error

    public static void Main(string[] argv) {
      Filter6 srv = MqFactoryCT<Filter6>.Add().New();
      try {
	srv.LinkCreate(argv);
	srv.ProcessEvent(MqWaitOnEventE.FOREVER);
      } catch (Exception ex) {
        srv.ErrorCatch (ex);
      }
      srv.Exit();
    }

MkExceptionC

MkExceptionC - The default-exception of the Programming-Language-Micro-Kernel (PLMK) …

The Programming-Language-Micro-Kernel (PLMK) provide with MkErrorC a complete error-handling with focus to support the "C" Programming-Language. The support include catch, raise, signal and attributes. In addition every Target-Programming-Language (TPL) add their own error-handling and the purpose of MkExceptionC is to integrate the MkErrorC into the Target-Programming-Language (TPL).

The default-exception MkExceptionC is used to connect the MkErrorC with the Target-Programming-Language (TPL) error-object.

The default-error is defined in MkRuntimeS::error_mk.
On error the default-error is set to the error-data, the MkErrorE status change to MK_ERROR.
The non-C language create a copy from the default-error and throw the copy as MkExceptionC exception.
The C language just return the MkErrorE status of the default-error.

The implementation of an exception depends heavily on the Target-Programming-Language (TPL), starting with no exception at all, for example. C, an exception as a class object, or as an exception as a global attribute.

Attention

All MkExceptionC code is implemented at the Target-Programming-Language (TPL) without support by the Programming-Language-Micro-Kernel (PLMK) compiler.
By default, MkExceptionC is only used internally, hidden by the class MkErrorC.

ExceptionCheck

Checks if Exception is of type MkExceptionC and returns true or false …

Example: test case to check KILL and RECOVER feature, check on MkExceptionC

          var VAL = ReadBUF();
          mycl = new Client();
          mycl.LinkCreate(ConfigGetStartAs());
          var PID = (int) mycl.Send("W", "GPID@I");
          int RET=0;
          SysKill(PID,9);
          for (int i = 0; i < 3; i++) {
            try {
              RET = (int) mycl.Send("W", "ECOI:U@I", VAL);
            } catch (MkExceptionC ex) {
              var err = mycl.ErrorCatch(ex);
              if (err.IsSOCKET()) {
                err.Reset();
                mycl.LinkConnect();
                continue;
              } else {
                err.Raise();
              }
            }
            break;
          }
          SendSTART();
          SendI32(RET);

Returns: the result of the check, true or false

Parameters

[in] exception the exception object from C#, if null the global exception object is used

Definition at line 498 of file MkErrorC.cs.

Member Function Documentation

◆ Check() [1/2]

static void csmkkernel.MkErrorC.Check	(	IntPtr	ctx,
		MkErrorE	err )

inlinestatic

Definition at line 74 of file MkErrorC.cs.

                                                       {
      if (err <= MkErrorE.CONTINUE) return;
      // null allowed == MK_ERROR_DEFAULT
      throw new MkExceptionC( ctx );
    }

◆ Check() [2/2]

static void csmkkernel.MkErrorC.Check ( MkErrorE err )

inlinestatic

Definition at line 80 of file MkErrorC.cs.

                                           {
      Check(IntPtr.Zero,err);
    }

◆ MkErrorC_ObjNew()

static MkErrorC csmkkernel.MkErrorC.MkErrorC_ObjNew ( IntPtr hdl )

inlinestatic

Definition at line 38 of file MkErrorC.cs.

                                                        {
      return hdl != IntPtr.Zero ? (MkErrorC) atomObjNew(typeof(MkErrorC), ctor, hdl) : MK_NULL.Value;
    }

Here is the caller graph for this function:

◆ Stack()

static MkErrorE csmkkernel.MkErrorC.Stack	(	IntPtr	mkrt,
		IntPtr	hdl,
		[CallerMemberName] string	callfunc = null,
		[CallerFilePath] string	callfile = null,
		[CallerLineNumber] int	callline = -1 )

inlinestatic

C#: MkErrorE err.Stack([CallerMemberName]string callfunc = null, [CallerFilePath]string callfile = null, [CallerLineNumber]int callline = -1) → C-API
check on error and if yes append an ErrorStackFormat to the error-message …

Definition at line 85 of file MkErrorC.cs.

       {
      IntPtr callfunc_cstr = Marshal.StringToHGlobalAnsi(callfunc);
      IntPtr callfile_cstr = Marshal.StringToHGlobalAnsi(callfile);
      var ret = Mk.MkErrorStack(mkrt,Mk.MkErrorFORMAT(hdl), callfunc_cstr, callfile_cstr, callline);
      Marshal.FreeHGlobal(callfile_cstr);
      Marshal.FreeHGlobal(callfunc_cstr);
      return ret;
    }

Here is the caller graph for this function:

◆ StackFull()

static MkErrorE csmkkernel.MkErrorC.StackFull	(	IntPtr	mkrt,
		IntPtr	hdl )

inlinestatic

C#: MkErrorE err.Stack([CallerMemberName]string callfunc = null, [CallerFilePath]string callfile = null, [CallerLineNumber]int callline = -1) → C-API
check on error and if yes append an ErrorStackFormat to the error-message …

Definition at line 101 of file MkErrorC.cs.

       {
      var err = Mk.MkErrorFORMAT(hdl);
      var code = Mk.MkErrorGetCode(err);
      if (code <= MkErrorE.CONTINUE) return code;

      StackTrace st = new System.Diagnostics.StackTrace(1, true);

      foreach (var sf in st.GetFrames())
      {
        var meth = sf.GetMethod();
        if (meth.Name == "ServiceCall") break;
        string fn;
        int ln;
        if (StackFrameExtensions.HasSource(sf)) {
          fn = sf.GetFileName();
          ln = sf.GetFileLineNumber();
        } else {
          fn = meth.DeclaringType.Module.Name;
          ln = -1;
        }
        MkErrorC.Stack(mkrt,err,meth.ToString(), fn, ln);
      }
      return code;
    }

Here is the caller graph for this function:

The documentation for this class was generated from the following file:

MkErrorC.cs

Public Member Functions

Static Public Member Functions

Additional Inherited Members

Detailed Description

MkExceptionC

ExceptionCheck

Member Function Documentation

◆ Check() [1/2]

◆ Check() [2/2]

◆ MkErrorC_ObjNew()

◆ Stack()

◆ StackFull()
