MkObjectC_Class_C_API

MkObjectC - define the class … More...

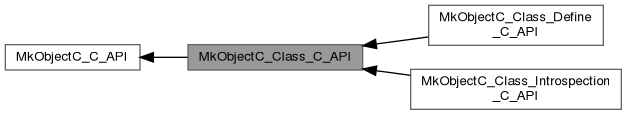

Collaboration diagram for MkObjectC_Class_C_API:

Topics
	MkObjectC_Class_Introspection_C_API
	MkObjectC - get information from the MkTypeS …
	MkObjectC_Class_Define_C_API
	MkObjectC - low level definition, access and cast …

Typedefs
typedef struct MkObjectS *	MK_OBJ
	class-shortcut for struct MkObjectS *, all shortcut using the XX_YYY syntax (only for public API) …
typedef const struct MkObjectS *	MK_OBJN
	class-shortcut for const struct MkObjectS *, all const shortcut using the XX_YYYC syntax (only for public API) …
typedef struct MkObjectS	MK_OBJR
	reference-shortcut for struct MkObjectS, all shortcut using the XX_YYYR syntax (only for public API) …

MkObjectC - Export - inline - interact with an external software
static MK_HDL	MkObjectHandleGetOfType (MK_OBJ const obj)
	Export-Slot - returns typeHdl of the obj .
bool	MkObjectHandleExists (MK_OBJ const obj)
	check if obj has already a handle defined…
MK_HDL	MkObjectHandleGetOr0 (MK_OBJ const obj)
	return export-hdl or 0 in not created…
MK_HDL	MkObjectHandleGet_RT (MK_RT mkrt, MK_OBJ const obj)
	Handle-Get-Slot - returns a export-hdl to the MkObjectC useable for external storage
MK_OBJ	MkObjectHandleResolve_RT (MK_RT mkrt, MK_HDL const netHdl)
	Handle-Resolve-Slot - return a MkObjectC from netHdl or null if invalid…
void	MkObjectHandleDeleteByNetHdl_RT (MK_RT mkrt, MK_HDL const netHdl)
	Handle-Delete-Slot - delete a netHdl from handle-storage …
void	MkObjectHandleDelete_RT (MK_RT mkrt, MK_OBJ const netObj)
	Handle-Delete-Slot - delete a netObj from handle-storage …
#define	MkObjectHandleGetOfType_1X(x)
#define	MkObjectHandleGet_1X(x)
#define	MkObjectHandleResolve_e(netHdl)
	wrapper for MkObjectHandleResolve with error-handline

MkObjectC - Misc - function - unspecified functions to perform different tasks
static MK_OBJ	MkObjectGetNull (void)
	Null-Slot - return a MkObjectC typed NULL instance …

MkObjectC - Introspection - inline - access to all instances created by class starting with the last one
static MK_OBJ	MkObjectInstances_RT (MK_RT mkrt)
	get head-instance from linked-list of MkObjectS type …
static MK_OBJ	MkObjectNext (MK_OBJ const obj)
	get next instance from linked-list of MkObjectS type
static MK_OBJ	MkObjectPrev (MK_OBJ const obj)
	get previous instance from linked-list of MkObjectS type

MkObjectC - Export - function
MK_HDL	MkObjectHandleGetOfTypeP (MK_OBJ const obj)
	Non-inline replacement for MkObjectHandleGetOfType …

MkObjectC - Introspection - function
MK_OBJ	MkObjectNextP (MK_OBJ const obj)
	Non-inline replacement for MkObjectNext …
MK_OBJ	MkObjectPrevP (MK_OBJ const obj)
	Non-inline replacement for MkObjectPrev …
MK_OBJ	MkObjectInstancesP (MK_RT mkrt)
	Non-inline replacement for MkObjectInstances …

MkObjectC - Misc - function
MK_OBJ	MkObjectGetNullP (void)
	Non-inline replacement for MkObjectGetNull …

MkObjectC - Export - overload
#define	MkObjectHandleResolve_NULL(...)
#define	MkObjectHandleResolve(...)
#define	MkObjectHandleDelete_NULL(...)
#define	MkObjectHandleDelete(...)
#define	MkObjectHandleGet_NULL(...)
#define	MkObjectHandleGet(...)
#define	MkObjectHandleDeleteByNetHdl_NULL(...)
#define	MkObjectHandleDeleteByNetHdl(...)

MkObjectC - Introspection - overload
#define	MkObjectInstances_NULL()
#define	MkObjectInstances()

Detailed Description

MkObjectC - define the class …

Macro Definition Documentation

MkObjectHandleDelete

#define MkObjectHandleDelete

(

...

)

Value:

MkObjectHandleDelete_RT(MK_RT_CALL __VA_ARGS__)

Definition at line 1524 of file kernel_overload_mk.h.

MkObjectHandleDelete_NULL

#define MkObjectHandleDelete_NULL

(

...

)

Value:

MkObjectHandleDelete_RT(MK_RT_CALL_NULL __VA_ARGS__)

Definition at line 1523 of file kernel_overload_mk.h.

MkObjectHandleDeleteByNetHdl

#define MkObjectHandleDeleteByNetHdl

(

...

)

Value:

MkObjectHandleDeleteByNetHdl_RT(MK_RT_CALL __VA_ARGS__)

Definition at line 1530 of file kernel_overload_mk.h.

MkObjectHandleDeleteByNetHdl_NULL

#define MkObjectHandleDeleteByNetHdl_NULL

(

...

)

Value:

MkObjectHandleDeleteByNetHdl_RT(MK_RT_CALL_NULL __VA_ARGS__)

Definition at line 1529 of file kernel_overload_mk.h.

MkObjectHandleGet

#define MkObjectHandleGet

(

...

)

Value:

MkObjectHandleGet_RT(MK_RT_CALL __VA_ARGS__)

Definition at line 1526 of file kernel_overload_mk.h.

MkObjectHandleGet_1X

#define MkObjectHandleGet_1X

(

x

)

Value:

MkObjectHandleGet(x?MkOBJ(x):NULL)

Definition at line 3641 of file LibMkKernel_mk.h.

MkObjectHandleGet_NULL

#define MkObjectHandleGet_NULL

(

...

)

Value:

MkObjectHandleGet_RT(MK_RT_CALL_NULL __VA_ARGS__)

Definition at line 1525 of file kernel_overload_mk.h.

MkObjectHandleGetOfType_1X

#define MkObjectHandleGetOfType_1X

(

x

)

Value:

MkObjectHandleGetOfType(MkOBJ(x))

Definition at line 3584 of file LibMkKernel_mk.h.

MkObjectHandleResolve

#define MkObjectHandleResolve

(

...

)

Value:

MkObjectHandleResolve_RT(MK_RT_CALL __VA_ARGS__)

Definition at line 1520 of file kernel_overload_mk.h.

MkObjectHandleResolve_e

#define MkObjectHandleResolve_e

(

netHdl

)

Value:

  ({ \
  MK_HDL tmpHdl=netHdl; \
  MK_OBJ tmp; \
  if (tmpHdl==0) { \
    tmp=NULL; \
  } else { \
    tmp=MkObjectHandleResolve(tmpHdl); \
    if (tmp==NULL) { \
      MkErrorSetC_1_NULL("ERROR: 'MkObjectC' handle is 'NULL'"); \
      goto error; \
    }; \
  }; \
  tmp; \
})

wrapper for MkObjectHandleResolve with error-handline

Parameters

[in]

netHdl

The handle previously returned by MkObjectHandleGet.

Returns

Return an valid MK_OBJ or null with an error set.

• If netHdl is 0 than null is returned and the upper-code decide how to deal with it.
• MkObjectHandleResolve return an valid MK_OBJ or null if the netHdl is invalid or the underlying object has already been deleted.
  • If a null is returned than an error-message is created and a jump to the label error is done.
  • If a MK_OBJ is returned than the netHdl is valid.

Definition at line 3665 of file LibMkKernel_mk.h.

#define MkObjectHandleResolve_e(netHdl) ({ \
  MK_HDL tmpHdl=netHdl; \
  MK_OBJ tmp; \
  if (tmpHdl==0) { \
    tmp=NULL; \
  } else { \
    tmp=MkObjectHandleResolve(tmpHdl); \
    if (tmp==NULL) { \
      MkErrorSetC_1_NULL("ERROR: 'MkObjectC' handle is 'NULL'"); \
      goto error; \
    }; \
  }; \
  tmp; \
})

MkObjectHandleResolve_NULL

#define MkObjectHandleResolve_NULL

(

...

)

Value:

MkObjectHandleResolve_RT(MK_RT_CALL_NULL __VA_ARGS__)

Definition at line 1519 of file kernel_overload_mk.h.

MkObjectInstances

#define MkObjectInstances

(

)

Value:

MkObjectInstances_RT(MK_RT_CALL_ONLY)

Definition at line 1541 of file kernel_overload_mk.h.

MkObjectInstances_NULL

#define MkObjectInstances_NULL

(

)

Value:

MkObjectInstances_RT(MK_RT_CALL_NULL_ONLY)

Definition at line 1540 of file kernel_overload_mk.h.

Typedef Documentation

MK_OBJ

typedef struct MkObjectS* MK_OBJ

class-shortcut for struct MkObjectS *, all shortcut using the XX_YYY syntax (only for public API) …

Definition at line 1506 of file LibMkKernel_mk.h.

MK_OBJN

typedef const struct MkObjectS* MK_OBJN

class-shortcut for const struct MkObjectS *, all const shortcut using the XX_YYYC syntax (only for public API) …

Definition at line 1509 of file LibMkKernel_mk.h.

MK_OBJR

typedef struct MkObjectS MK_OBJR

reference-shortcut for struct MkObjectS, all shortcut using the XX_YYYR syntax (only for public API) …

Definition at line 1512 of file LibMkKernel_mk.h.

Function Documentation

MkObjectGetNull()

static MK_OBJ MkObjectGetNull ( void )

inlinestatic

Null-Slot - return a MkObjectC typed NULL instance …

Definition at line 3704 of file LibMkKernel_mk.h.

                                            {
    return (MK_OBJ)MK_NULL;
  }

MkObjectGetNullP()

MK_OBJ MkObjectGetNullP

(

void

)

Non-inline replacement for MkObjectGetNull …

MkObjectHandleDelete_RT()

void MkObjectHandleDelete_RT	(	MK_RT	mkrt,
		MK_OBJ const	netObj )

Handle-Delete-Slot - delete a netObj from handle-storage …

MkObjectHandleDeleteByNetHdl_RT()

void MkObjectHandleDeleteByNetHdl_RT	(	MK_RT	mkrt,
		MK_HDL const	netHdl )

Handle-Delete-Slot - delete a netHdl from handle-storage …

MkObjectHandleExists()

bool MkObjectHandleExists

(

MK_OBJ const

obj

)

check if obj has already a handle defined…

Parameters

[in]

obj

the MkObjectS instance to work on - a MANAGED OBJECT after type-check and able to be supported by the MkObjectS API

Returns

true or false

MkObjectHandleGet_RT()

MK_HDL MkObjectHandleGet_RT	(	MK_RT	mkrt,
		MK_OBJ const	obj )

Handle-Get-Slot - returns a export-hdl to the MkObjectC useable for external storage

The export-hdl is a reference to an instance that can be stored in software and converted back into an instance using the MkObjectHandleResolve.

By default, the export-hdl is initialized to "0", which is equivalent to does not exist. This function returns a non-zero and unique export-hdl that is recreated if necessary.

The export-hdl is only valid until the Programming-Language-Micro-Kernel (PLMK) ends.

example: The export-hdl is used in rpc to identify an object across the network.

Parameters

[in]	mkrt	the MkRuntimeS instance to work on - the runtime argument, used by MK_RT_CALL (C-only)
[in]	obj	the MkObjectS instance to work on - a MANAGED OBJECT after type-check and able to be supported by the MkObjectS API

Returns

the required export-hdl

MkObjectHandleGetOfType()

static MK_HDL MkObjectHandleGetOfType ( MK_OBJ const obj )

inlinestatic

Export-Slot - returns typeHdl of the obj .

A typeHdl identifies the type the obj belongs to. All instances of the same type share the same typeHdl.

Parameters

[in]

obj

the MkObjectS instance to work on - a MANAGED OBJECT after type-check and able to be supported by the MkObjectS API

Returns

the required typeHdl

Definition at line 3580 of file LibMkKernel_mk.h.

                                                                      {
  return ((MK_HDL)obj->signature);
}

MkObjectHandleGetOfTypeP()

MK_HDL MkObjectHandleGetOfTypeP

(

MK_OBJ const

obj

)

Non-inline replacement for MkObjectHandleGetOfType …

MkObjectHandleGetOr0()

MK_HDL MkObjectHandleGetOr0

(

MK_OBJ const

obj

)

return export-hdl or 0 in not created…

Same as MkObjectHandleGet, but no new export-hdl is created if it has not already been created and the initial value 0 is returned instead.

Parameters

[in]

obj

the MkObjectS instance to work on - a MANAGED OBJECT after type-check and able to be supported by the MkObjectS API

Returns

the required export-hdl

MkObjectHandleResolve_RT()

MK_OBJ MkObjectHandleResolve_RT	(	MK_RT	mkrt,
		MK_HDL const	netHdl )

Handle-Resolve-Slot - return a MkObjectC from netHdl or null if invalid…

The MkObjectHandleResolve undo the MkObjectHandleGet and is intended to export a unique identifer into external code not belonging to the Programming-Language-Micro-Kernel (PLMK).

Parameters

[in]	mkrt	the MkRuntimeS instance to work on - the runtime argument, used by MK_RT_CALL (C-only)
[in]	netHdl	handle former exported with MkObjectHandleGet

Returns

the required handle or null if netHdl is invalid

MkObjectInstances_RT()

static MK_OBJ MkObjectInstances_RT ( MK_RT mkrt )

inlinestatic

get head-instance from linked-list of MkObjectS type …

The head-instance is the last instance created.

Definition at line 13357 of file LibMkKernel_mk.h.

                                                           {
  MK_STATIC_RT;
  return (MK_OBJ)MkTypeInstances(MkObjectC_TT);
}

MkObjectInstancesP()

MK_OBJ MkObjectInstancesP

(

MK_RT

mkrt

)

Non-inline replacement for MkObjectInstances …

MkObjectNext()

static MK_OBJ MkObjectNext ( MK_OBJ const obj )

inlinestatic

get next instance from linked-list of MkObjectS type

Definition at line 13364 of file LibMkKernel_mk.h.

                                                {
  MK_INSTANCE_HDL(obj);
  return (MK_OBJ)MkObjectC_X2obj(obj)->obj_protect.next;
}

MkObjectNextP()

MK_OBJ MkObjectNextP

(

MK_OBJ const

obj

)

Non-inline replacement for MkObjectNext …

MkObjectPrev()

static MK_OBJ MkObjectPrev ( MK_OBJ const obj )

inlinestatic

get previous instance from linked-list of MkObjectS type

Definition at line 13371 of file LibMkKernel_mk.h.

                                                {
  MK_INSTANCE_HDL(obj);
  return (MK_OBJ)MkObjectC_X2obj(obj)->obj_protect.prev;
}

MkObjectPrevP()

MK_OBJ MkObjectPrevP

(

MK_OBJ const

obj

)

Non-inline replacement for MkObjectPrev …
