MkObjectC - class known as obj or object is used as base-class type for a Programming-Language-Micro-Kernel (PLMK) class … More...

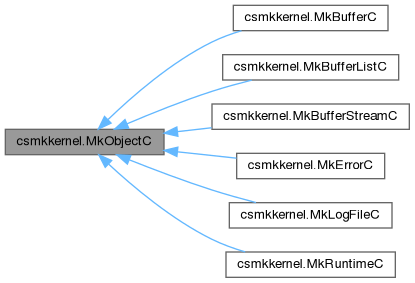

Inheritance diagram for csmkkernel.MkObjectC:

Classes
struct	MkCall

Public Member Functions
delegate void	MkObjectDeleteSCB (string typeName, int typeHdl, int objHdl)
	implements the csmkkernel API object: public version from MkObjectDeleteSCB as method

void	ErrorCheck (MkErrorE err)

bool	Check ()

string	ToNameOfClass ()
	`C#: string obj.ToNameOfClass()` → C-API Class-Slot - returns the C#-Class-Name of the obj as string

void	HandleDelete ()
	`C#: netObj.HandleDelete()` → C-API Handle-Delete-Slot - delete a *netObj* from handle-storage …

bool	HandleExists ()
	`C#: bool obj.HandleExists()` → C-API check if *obj* has already a handle defined…

Int32	HandleGet ()
	`C#: Int32 obj.HandleGet()` → C-API Handle-Get-Slot - returns a *export-hdl* to the MkObjectC useable for external storage

Int32	HandleGetOfType ()
	`C#: Int32 obj.HandleGetOfType()` → C-API Export-Slot - returns *typeHdl* of the *obj* .

Int32	HandleGetOr0 ()
	`C#: Int32 obj.HandleGetOr0()` → C-API return *export-hdl* or 0 in not created…

MkObjectC	Next ()
	`C#: MkObjectC obj.Next()` → C-API get next instance from linked-list of MkObjectS type

MkObjectC	Prev ()
	`C#: MkObjectC obj.Prev()` → C-API get previous instance from linked-list of MkObjectS type

void	DbgDump (string message="var", [CallerMemberName]string callfunc=null)
	`C#: obj.DbgDump(string message = "var", [CallerMemberName]string callfunc = null)` → C-API debug: Dump a instance to stderr with LNG and MQ internal data…

void	DbgL (string message, int debug=0, [CallerMemberName]string callfunc=null, int lvl=0)
	`C#: fmtobj.DbgL(string message, int debug = 0, [CallerMemberName]string callfunc = null, int lvl = 0)` → C-API debug: write a instance-marker to the MkLogFileC (default: stderr) using the fmtobj as prefix …

void	DbgLogC ([CallerMemberName]string callfunc=null)
	`C#: obj.DbgLogC([CallerMemberName]string callfunc = null)` → C-API debug: write a short-obj-summary to MkLogFileC (default: stderr) …

void	DbgO ([CallerMemberName]string callfunc=null)
	`C#: obj.DbgO([CallerMemberName]string callfunc = null)` → C-API debug: write the object-details to MkLogFileC (default: stderr) …

void	DbgSTACK (int skip=0, int num=-1, [CallerMemberName]string callfunc=null)
	`C#: fmtobj.DbgSTACK(int skip = 0, int num = -1, [CallerMemberName]string callfunc = null)` → C-API debug: write the stack-trace to MkLogFileC (default: stderr) …

void	LogC (string message, int debug=0, [CallerMemberName]string callfunc=null)
	`C#: fmtobj.LogC(string message, int debug = 0, [CallerMemberName]string callfunc = null)` → C-API write a logging-message to MkLogFileC (default: stderr) using the internal format …

void	LogHEX (string callfunc, byte[] data)
	`C#: fmtobj.LogHEX(string callfunc, byte[] data)` → C-API log binaray data as HEX into the MkLogFileC (default: stderr) …

void	Log (MkObjectC fmtobj=null, int debug=0, [CallerMemberName]string callfunc=null, int lvl=0)
	`C#: obj.Log(MkObjectC fmtobj = null, int debug = 0, [CallerMemberName]string callfunc = null, int lvl = 0)` → C-API Log-Slot - log a summary of an object to the MkLogFileC (default: stderr) target …

void	LogLong (MkObjectC fmtobj=null, int debug=0, [CallerMemberName]string callfunc=null, int lvl=0)
	`C#: obj.LogLong(MkObjectC fmtobj = null, int debug = 0, [CallerMemberName]string callfunc = null, int lvl = 0)` → C-API log the MkObjectS verbose into the MkLogFileC (default: stderr) …

void	LogShort (MkObjectC fmtobj=null, int debug=0, [CallerMemberName]string callfunc=null, int lvl=0)
	`C#: obj.LogShort(MkObjectC fmtobj = null, int debug = 0, [CallerMemberName]string callfunc = null, int lvl = 0)` → C-API log the MkObjectS into the MkLogFileC (default: stderr) …

void	LogType (MkObjectC fmtobj=null, int debug=0, [CallerMemberName]string callfunc=null, int lvl=0)
	`C#: obj.LogType(MkObjectC fmtobj = null, int debug = 0, [CallerMemberName]string callfunc = null, int lvl = 0)` → C-API log the tyoe of the MkObjectS into the MkLogFileC (default: stderr) …

MkErrorC	ErrorCatch (Exception exception=null, [CallerMemberName]string callfunc=null)
	`C#: MkErrorC obj.ErrorCatch(Exception exception = null, [CallerMemberName]string callfunc = null)` → C-API convert a programming-language-error into an csmkkernel error …

MkErrorC	ToError ()
	`C#: MkErrorC obj.ToError()` → C-API Error-Slot - return an error-object pre initialized with *obj* data.

bool	IsNull ()
	`C#: bool obj.IsNull()` → C-API ckeck if the object is null

string	ToName ()
	`C#: string obj.ToName()` → C-API Info-Slot - returns brief information about the obj as a string

string	ToNameOfType ()
	`C#: string obj.ToNameOfType()` → C-API Type-Slot - returns the LibMkKernel-Type-Name of the obj as a string

override string	ToString ()
	`C#: string inst.ToString()` → C-API String-Slot - returns the string representation of the *inst* …

int	RefGet ()
	MkRefGetP

void	SysKill (int pid, int signal)
	MkSysKill

int	SysGetPid ()
	MkSysGetPid

void	Dispose ()
	`C#: [destructor] obj.Dispose()` → C-API Dispose-Slot - untie the connection between the Native-C#-Instance and the csmkkernel-Instance.

void	Delete ()
	`C#: [destructor] obj.Delete()` → C-API Delete-Slot - delete an instance.

Static Public Member Functions
static MkObjectC	MkObjectC_ObjNew (IntPtr hdl)

static IntPtr	getOBJ (string cls, MkObjectC obj)

static IntPtr	getOBJ_null_allow (MkObjectC obj)

static MkObjectC	HandleResolve (Int32 netHdl)
	`C#: [static] MkObjectC MkObjectC.HandleResolve(Int32 netHdl)` → C-API Handle-Resolve-Slot - return a MkObjectC from *netHdl* or null if invalid…

static void	HandleDeleteByNetHdl (Int32 netHdl)
	`C#: [static] MkObjectC.HandleDeleteByNetHdl(Int32 netHdl)` → C-API Handle-Delete-Slot - delete a *netHdl* from handle-storage …

static MkObjectC	Instances ()
	`C#: [static] MkObjectC MkObjectC.Instances()` → C-API get head-instance from linked-list of MkObjectS type …

static MkObjectC	GetNull ()
	`C#: [static] MkObjectC MkObjectC.GetNull()` → C-API Null-Slot - return a MkObjectC typed `NULL` instance …

static void	DbgM (string message, int debug=0, [CallerMemberName]string callfunc=null, int lvl=0)
	`C#: [static] MkObjectC.DbgM(string message, int debug = 0, [CallerMemberName]string callfunc = null, int lvl = 0)` → C-API debug: write a static-marker to the MkLogFileC (default: stderr) …

static int	SysHashI32 (string key, int length=-1)
	MkSysHashI32

static string	SysHashSTR (string key, int length=-1)
	MkSysHashSTR

static void	DeleteCallbackCleanup (string ident)
	`C#: [static] MkObjectC.DeleteCallbackCleanup(string ident)` → C-API cleanup the DeleteCallback installed with MkObjectDeleteCallbackSetup …

static void	DeleteCallbackSetup (string ident, MkObjectDeleteSCB callback=null, string filter=null)
	`C#: [static] MkObjectC.DeleteCallbackSetup(string ident, MkObjectDeleteSCB callback = null, string filter = null)` → C-API Create/Delete the instance-delete-callback …

static int	getPId ()

static int	getTId ()

static string	getStackTrace (int level=2)

static string	getCallerProc (int level=2)

static int	getCallerLine (int level=2)

static string	getCallerFile (int level=2)

Protected Member Functions
	MkObjectC (IntPtr obj)

	MkObjectC ()

virtual void	Dispose (bool disposing)
	Support IDisposable.

Static Protected Member Functions
static object	atomObjNew (Type type, ConstructorInfo ctor, IntPtr obj)

static object	atomObjCreate (Type type, ConstructorInfo ctor, IntPtr obj)

static IntPtr	atomSelfCreate (ConstructorInfo ctor, IntPtr obj, IntPtr env)

static object	atomSelfNull (ConstructorInfo ctor)

static void	atomSelfUnlink (IntPtr self, IntPtr env)

static ConstructorInfo	getCtor (Type type)

static string	Name (IntPtr mkrt, IntPtr obj)
	`C#: string obj.ToName()` → C-API Info-Slot - returns brief information about the obj as a string

Protected Attributes
IntPtr	pmkrt = IntPtr.Zero

Properties
IntPtr	hdl `[get, set]`

IntPtr	hdl_null_allow `[get, set]`

IntPtr	mkrt `[get, set]`

Detailed Description

MkObjectC - class known as obj or object is used as base-class type for a Programming-Language-Micro-Kernel (PLMK) class …

csmkkernel is also called as Programming-Language-Micro-Kernel (PLMK). csmkkernel is like a programming-language without syntax but using the Target-Programming-Language (in our case C#) of the Micro-Kernel as runtime environment.

Integration: To operate as a Micro-Kernel a maximum integration into the Target-Programming-Language is available.

This integration is done using the managed-object-technology.

Managed-Object: A managed-object is a piece of C-Code able to act as a native datatype in all Target-Programming-Languages supported.

The managed object supports low level integration features descripted in MkObjectS :

object identification based on signatures
reference counting
management of the self object pointer for the target-language
object-type specific features provided with MkTypeS

In the implementation-layer of csmkkernel only the public-features of the MkObjectC are visible to the programmer.

See also: For the full documentation read: Managed-Object

Definition at line 135 of file MkObjectLog.cs.

Constructor & Destructor Documentation

◆ MkObjectC() [1/2]

csmkkernel.MkObjectC.MkObjectC ( IntPtr obj )

inlineprotected

Definition at line 121 of file MkObjectC.cs.

                                              {
      atomCreate(obj);
    }

◆ MkObjectC() [2/2]

csmkkernel.MkObjectC.MkObjectC ( )

inlineprotected

Definition at line 125 of file MkObjectC.cs.

125{}

Member Function Documentation

◆ atomObjCreate()

static object csmkkernel.MkObjectC.atomObjCreate	(	Type	type,
		ConstructorInfo	ctor,
		IntPtr	obj )

inlinestaticprotected

Definition at line 202 of file MkObjectC.cs.

                                                                                        {
//printTyp(obj, getCallerProc(3) + "-" + type.Name);
      return ctor.Invoke(new Object[] {obj});
    }

◆ atomObjNew()

static object csmkkernel.MkObjectC.atomObjNew	(	Type	type,
		ConstructorInfo	ctor,
		IntPtr	obj )

inlinestaticprotected

Definition at line 189 of file MkObjectC.cs.

                                                                                     {
      IntPtr self = Mk.CsGetSelfPtr(obj);
      if (self != IntPtr.Zero) {
#if META_STRONG_REF
        return GCHandle.FromIntPtr(self).Target;
#else
        object ret =  GCHandle.FromIntPtr(self).Target;
        if (ret != null) return ret;
#endif
      }
      return ctor.Invoke(new Object[] {obj});
    }

Here is the caller graph for this function:

◆ atomSelfCreate()

static IntPtr csmkkernel.MkObjectC.atomSelfCreate	(	ConstructorInfo	ctor,
		IntPtr	obj,
		IntPtr	env )

inlinestaticprotected

Definition at line 207 of file MkObjectC.cs.

                                                                                          {
//printTyp(obj, getCallerProc(3) + "-" + type.Name);
      if (obj == IntPtr.Zero) {
        return IntPtr.Zero;
      } else {
        ctor.Invoke(new Object[] {obj});
        return Mk.CsGetSelfPtr(obj);
      }
    }

◆ atomSelfNull()

static object csmkkernel.MkObjectC.atomSelfNull ( ConstructorInfo ctor )

inlinestaticprotected

Definition at line 217 of file MkObjectC.cs.

                                                                {
//printTyp(obj, getCallerProc(3) + "-" + type.Name);
      return ctor.Invoke(new Object[] {IntPtr.Zero});
    }

◆ atomSelfUnlink()

static void csmkkernel.MkObjectC.atomSelfUnlink	(	IntPtr	self,
		IntPtr	env )

inlinestaticprotected

Definition at line 222 of file MkObjectC.cs.

                                                                   {
      var obj = (MkObjectC) GCHandle.FromIntPtr(self).Target;
#if META_STRONG_REF
      obj.hdl = IntPtr.Zero;
#else
      if (obj != null) obj.hdl = IntPtr.Zero;
#endif
    }

◆ Check()

bool csmkkernel.MkObjectC.Check ( )

inline

Definition at line 299 of file MkObjectC.cs.

                        {
      return phdl != IntPtr.Zero;
    }

Here is the caller graph for this function:

◆ Dispose()

virtual void csmkkernel.MkObjectC.Dispose ( bool disposing )

inlineprotectedvirtual

Support IDisposable.

Dispose(bool disposing) executes in two distinct scenarios. If disposing equals true, the method has been called directly or indirectly by a user's code. Managed and unmanaged resources can be disposed. If disposing equals false, the method has been called by the runtime from inside the finalizer and you should not reference other objects. Only unmanaged resources can be disposed.

Definition at line 271 of file MkObjectC.cs.

    {
//printStack("Dispose");

      // Check to see if Dispose has already been called.
      if(phdl != IntPtr.Zero)
      //if(hdl != IntPtr.Zero)
      {
        // If disposing equals true, dispose all managed
        // and unmanaged resources.
        if(disposing)
        {
          // Dispose managed resources. (not used here)
        }

        // Call the appropriate methods to clean up
        // unmanaged resources here.
        // If disposing is false,
        // only the following code is executed.

        // Note disposing has been done.
        // hint: MkRefDecr->FactoryDelete->Dispose => double-invoke
        atomDeleteSoft();
      }
    }

◆ getCallerFile()

static string csmkkernel.MkObjectC.getCallerFile ( int level = 2 )

inlinestatic

Definition at line 47 of file MkObjectLog.cs.

                                                    {
      var sf = new System.Diagnostics.StackFrame(level,true);
      return sf.GetFileName();
    }

◆ getCallerLine()

static int csmkkernel.MkObjectC.getCallerLine ( int level = 2 )

inlinestatic

Definition at line 42 of file MkObjectLog.cs.

                                                 {
      var sf = new System.Diagnostics.StackFrame(level);
      return sf.GetFileLineNumber();
    }

◆ getCallerProc()

static string csmkkernel.MkObjectC.getCallerProc ( int level = 2 )

inlinestatic

Definition at line 37 of file MkObjectLog.cs.

                                                    {
      var sf = new System.Diagnostics.StackFrame(level);
      return sf.GetMethod().Name;
    }

◆ getCtor()

static ConstructorInfo csmkkernel.MkObjectC.getCtor ( Type type )

inlinestaticprotected

Definition at line 244 of file MkObjectC.cs.

                                                         {
      Type[] types = new Type[1];
      types[0] = typeof(IntPtr);
      ConstructorInfo constr = type.GetConstructor(
        BindingFlags.Instance | BindingFlags.NonPublic, null, CallingConventions.HasThis, types, null
      );
      if (constr == null) {
        throw new Exception("internal constructor '" + type.Name + " (IntPtr)' not found.");
      }
      return constr;
    }

◆ getOBJ()

static IntPtr csmkkernel.MkObjectC.getOBJ	(	string	cls,
		MkObjectC	obj )

inlinestatic

Definition at line 109 of file MkObjectC.cs.

                                                            {
      if (obj == null || obj.phdl == IntPtr.Zero) {
        throw new NullReferenceException($"'{obj != null ? obj.GetType().Name : cls}' hdl is NULL");
      }
      return obj.phdl;
    }

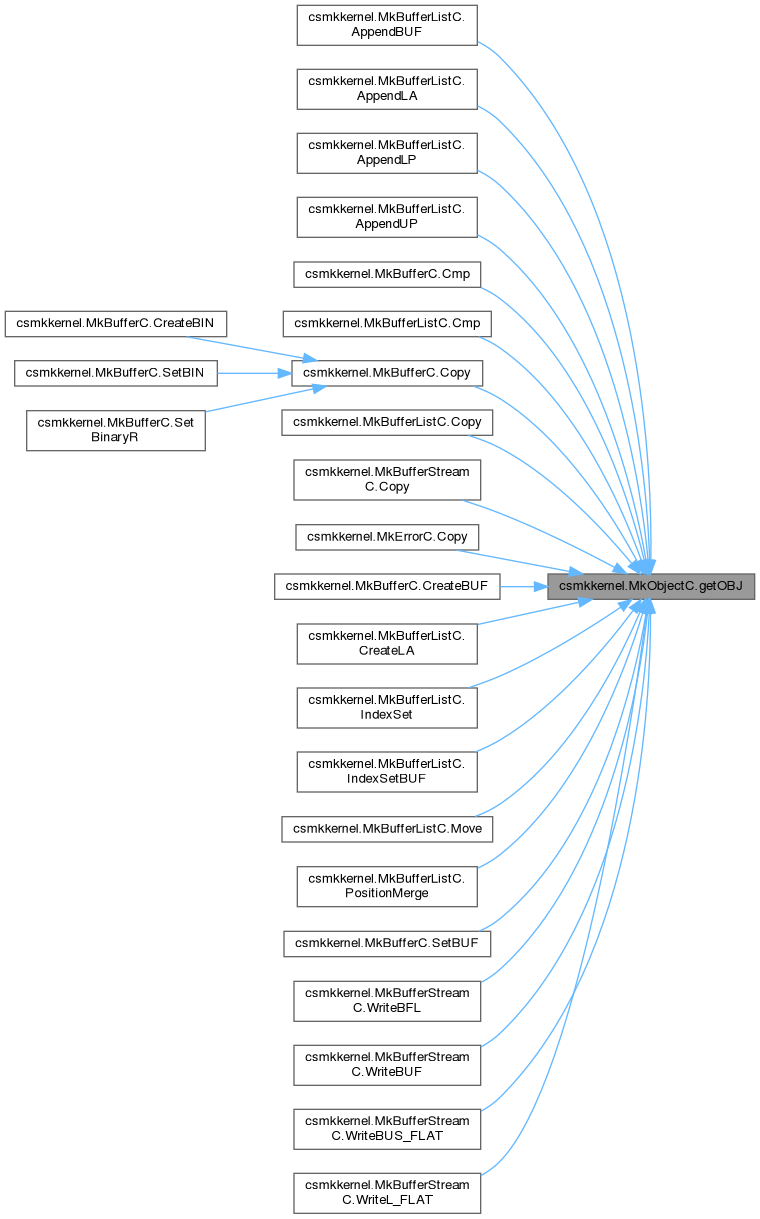

Here is the caller graph for this function:

◆ getOBJ_null_allow()

static IntPtr csmkkernel.MkObjectC.getOBJ_null_allow ( MkObjectC obj )

inlinestatic

Definition at line 116 of file MkObjectC.cs.

                                                           {
      if (obj == null) return IntPtr.Zero;
      return obj.phdl;
    }

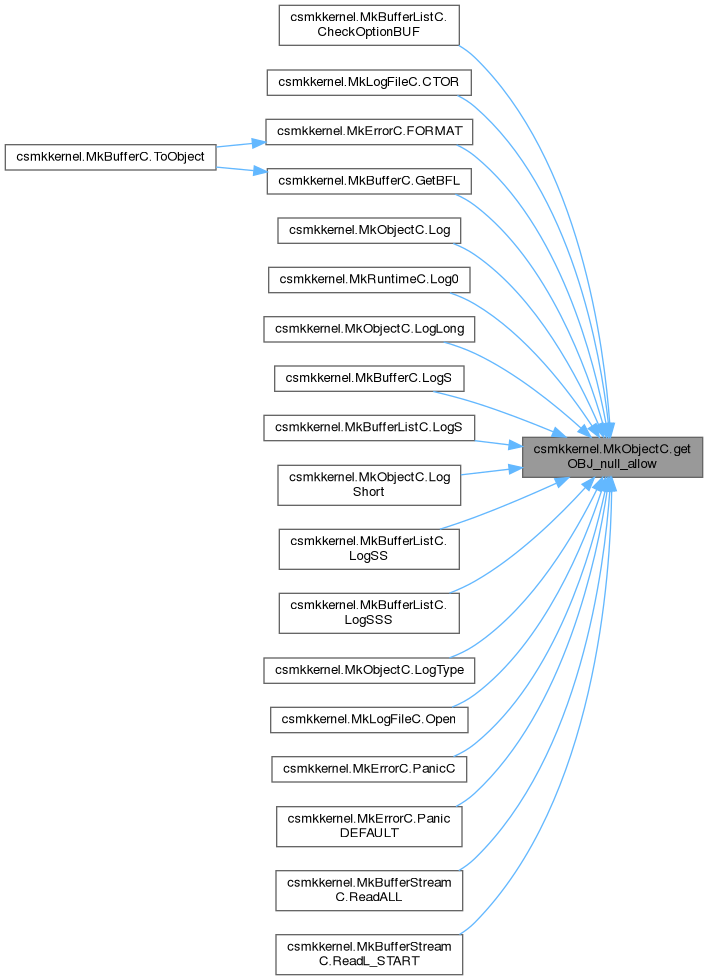

Here is the caller graph for this function:

◆ getPId()

static int csmkkernel.MkObjectC.getPId ( )

inlinestatic

Definition at line 25 of file MkObjectLog.cs.

                               {
      return System.Diagnostics.Process.GetCurrentProcess().Id;
    }

◆ getStackTrace()

static string csmkkernel.MkObjectC.getStackTrace ( int level = 2 )

inlinestatic

Definition at line 33 of file MkObjectLog.cs.

                                                    {
      return Environment.StackTrace;
    }

◆ getTId()

static int csmkkernel.MkObjectC.getTId ( )

inlinestatic

Definition at line 29 of file MkObjectLog.cs.

                               {
      return System.Threading.Thread.CurrentThread.ManagedThreadId;
    }

◆ MkObjectC_ObjNew()

static MkObjectC csmkkernel.MkObjectC.MkObjectC_ObjNew ( IntPtr hdl )

inlinestatic

Definition at line 38 of file MkObjectC.cs.

                                                          {
      return hdl != IntPtr.Zero ? (MkObjectC) atomObjNew(typeof(MkObjectC), ctor, hdl) : MK_NULL.Value;
    }

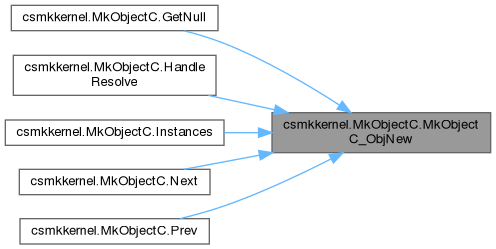

Here is the caller graph for this function:

◆ MkObjectDeleteSCB()

delegate void csmkkernel.MkObjectC.MkObjectDeleteSCB	(	string	typeName,
		int	typeHdl,
		int	objHdl )

implements the csmkkernel API object: public version from MkObjectDeleteSCB as method

◆ Name()

static string csmkkernel.MkObjectC.Name	(	IntPtr	mkrt,
		IntPtr	obj )

inlinestaticprotected

C#: string obj.ToName() → C-API
Info-Slot - returns brief information about the obj as a string

Definition at line 257 of file MkObjectC.cs.

                                                           {
      return Marshal.PtrToStringAnsi(Mk.MkObjectToName(mkrt,obj));
    }

Member Data Documentation

◆ pmkrt

IntPtr csmkkernel.MkObjectC.pmkrt = IntPtr.Zero

protected

Definition at line 70 of file MkObjectC.cs.

Property Documentation

◆ hdl

IntPtr csmkkernel.MkObjectC.hdl

getset

Definition at line 76 of file MkObjectC.cs.

                      {
      get {
        if (phdl == IntPtr.Zero) throw new NullReferenceException($"'{this.GetType().Name}' hdl is NULL");
        return phdl;
      }
      set {
        phdl = value;
      }
    }

◆ hdl_null_allow

IntPtr csmkkernel.MkObjectC.hdl_null_allow

getset

Definition at line 86 of file MkObjectC.cs.

                                 {
      get {
        return phdl;
      }
      set {
        phdl = value;
      }
    }

◆ mkrt

IntPtr csmkkernel.MkObjectC.mkrt

getsetprotected

Definition at line 95 of file MkObjectC.cs.

                          {
      get {
/*
        if (pmkrt != Mk.MkRuntimeGet()) {
          Console.Error.WriteLine($"runtime invalid: {pmkrt} != {Mk.MkRuntimeGet()}");
        }
*/
        return pmkrt;
      }
      set {
        pmkrt = value;
      }
    }

The documentation for this class was generated from the following files:

Classes

Public Member Functions

Static Public Member Functions

Protected Member Functions

Static Protected Member Functions

Protected Attributes

Properties

Detailed Description

Constructor & Destructor Documentation

◆ MkObjectC() [1/2]

◆ MkObjectC() [2/2]

Member Function Documentation

◆ atomObjCreate()

◆ atomObjNew()

◆ atomSelfCreate()

◆ atomSelfNull()

◆ atomSelfUnlink()

◆ Check()

◆ Dispose()

◆ getCallerFile()

◆ getCallerLine()

◆ getCallerProc()

◆ getCtor()

◆ getOBJ()

◆ getOBJ_null_allow()

◆ getPId()

◆ getStackTrace()

◆ getTId()

◆ MkObjectC_ObjNew()

◆ MkObjectDeleteSCB()

◆ Name()

Member Data Documentation

◆ pmkrt

Property Documentation

◆ hdl

◆ hdl_null_allow

◆ mkrt
