csmqmsgque.MqFactoryC Class Reference

MqFactoryC - the class known as fct or factory is used to provide an interface to create one or more new MqContextC … More...

Inheritance diagram for csmqmsgque.MqFactoryC:

Collaboration diagram for csmqmsgque.MqFactoryC:

Public Member Functions
new MqFactoryC	Next ()
	C#: MqFactoryC fct.Next() → C-API get next instance from linked-list of MqFactoryS type
new MqFactoryC	Prev ()
	C#: MqFactoryC fct.Prev() → C-API get previous instance from linked-list of MqFactoryS type
string	GetOriginalIdent ()
	C#: string fct.GetOriginalIdent() → C-API helper function to return MqFactoryS.originalIdent
MqFactoryC	Default ()
	C#: MqFactoryC fct.Default() → C-API set the default-attribute to the factory …
MqFactoryC	Initial ()
	C#: MqFactoryC fct.Initial() → C-API set the initial-attribut to fct …
MqContextC	New ()
	C#: MqContextC fct.New() → C-API create a new MqContextC from a MqFactoryC …
MqFactoryC	Dup2 (string ident)
	C#: [constructor] MqFactoryC fct.Dup2(string ident) → C-API create a duplicate of the singleton object MqFactoryC using a new factory-identifer
	MqFactoryC (Type constructor, string ident=null)
	CONSTRUCTOR.
Public Member Functions inherited from csmkkernel::MkObjectC
delegate void	MkObjectDeleteSCB (string typeName, int typeHdl, int objHdl)
void	ErrorCheck (MkErrorE err)
bool	Check ()
string	ToNameOfClass ()
void	HandleDelete ()
bool	HandleExists ()
Int32	HandleGet ()
Int32	HandleGetOfType ()
Int32	HandleGetOr0 ()
MkObjectC	Next ()
MkObjectC	Prev ()
void	DbgDump (string message="var",[CallerMemberName]string callfunc=null)
void	DbgL (string message, int debug=0,[CallerMemberName]string callfunc=null, int lvl=0)
void	DbgLogC ([CallerMemberName]string callfunc=null)
void	DbgO ([CallerMemberName]string callfunc=null)
void	DbgSTACK (int skip=0, int num=-1,[CallerMemberName]string callfunc=null)
void	LogC (string message, int debug=0,[CallerMemberName]string callfunc=null)
void	LogHEX (string callfunc, byte[] data)
void	Log (MkObjectC fmtobj=null, int debug=0,[CallerMemberName]string callfunc=null, int lvl=0)
void	LogLong (MkObjectC fmtobj=null, int debug=0,[CallerMemberName]string callfunc=null, int lvl=0)
void	LogShort (MkObjectC fmtobj=null, int debug=0,[CallerMemberName]string callfunc=null, int lvl=0)
void	LogType (MkObjectC fmtobj=null, int debug=0,[CallerMemberName]string callfunc=null, int lvl=0)
MkErrorC	ErrorCatch (Exception exception=null,[CallerMemberName]string callfunc=null)
MkErrorC	ToError ()
bool	IsNull ()
string	ToName ()
string	ToNameOfType ()
override string	ToString ()
int	RefGet ()
void	SysKill (int pid, int signal)
int	SysGetPid ()
void	Dispose ()
void	Delete ()

Static Public Member Functions
static MqFactoryC	MqFactoryC_ObjNew (IntPtr hdl)
new static MqFactoryC	HandleResolve (Int32 netHdl)
	C#: [static] MqFactoryC MqFactoryC.HandleResolve(Int32 netHdl) → C-API Handle-Resolve-Slot - return a MqFactoryC from netHdl or null if invalid…
new static MqFactoryC	Instances ()
	C#: [static] MqFactoryC MqFactoryC.Instances() → C-API get head-instance from linked-list of MqFactoryS type …
new static MqFactoryC	GetNull ()
	C#: [static] MqFactoryC MqFactoryC.GetNull() → C-API Null-Slot - return a MqFactoryC typed NULL instance …
static MqFactoryC	Get (string ident="")
	C#: [static] MqFactoryC MqFactoryC.Get(string ident = "") → C-API return the MqFactoryC
static MqFactoryC	GetCalled (string ident="")
	C#: [static] MqFactoryC MqFactoryC.GetCalled(string ident = "") → C-API returns the MqFactoryC identified by ident …
static MqFactoryC	GetCalled (MkBufferListC largs)
	C#: [static] MqFactoryC MqFactoryC.GetCalled(MkBufferListC largs) → C-API returns the MqFactoryC identified as first argument in the largs MkBufferListC …
static string	DefaultIdent ()
	C#: [static] string MqFactoryC.DefaultIdent() → C-API return the factory-identifier of the default MqFactoryC
static string	InitialIdent ()
	C#: [static] string MqFactoryC.InitialIdent() → C-API return the factory-identifier of the initial MqFactoryC
static void	LogAll ([CallerMemberName]string callfunc=null)
	C#: [static] MqFactoryC.LogAll([CallerMemberName]string callfunc = null) → C-API log all "factories" to stderr
static MqFactoryC	Add (Type constructor, string ident=null)
	C#: [constructor,static] MqFactoryC MqFactoryC.Add(Type constructor, string ident = null) → C-API Add a new MqFactoryC identified by factory-identifier and defined by factory-constructor …
Static Public Member Functions inherited from csmkkernel::MkObjectC
static MkObjectC	MkObjectC_ObjNew (IntPtr hdl)
static IntPtr	getOBJ (string cls, MkObjectC obj)
static IntPtr	getOBJ_null_allow (MkObjectC obj)
static MkObjectC	HandleResolve (Int32 netHdl)
static void	HandleDeleteByNetHdl (Int32 netHdl)
static MkObjectC	Instances ()
static MkObjectC	GetNull ()
static void	DbgM (string message, int debug=0,[CallerMemberName]string callfunc=null, int lvl=0)
static int	SysHashI32 (string key, int length=-1)
static string	SysHashSTR (string key, int length=-1)
static void	DeleteCallbackCleanup (string ident)
static void	DeleteCallbackSetup (string ident, MkObjectDeleteSCB callback=null, string filter=null)
static int	getPId ()
static int	getTId ()
static string	getStackTrace (int level=2)
static string	getCallerProc (int level=2)
static int	getCallerLine (int level=2)
static string	getCallerFile (int level=2)

Static Protected Member Functions
static IntPtr	CTOR (Type constructor, string ident=null)
	C#: [constructor,static] MqFactoryC MqFactoryC.Add(Type constructor, string ident = null) → C-API Add a new MqFactoryC identified by factory-identifier and defined by factory-constructor …
Static Protected Member Functions inherited from csmkkernel::MkObjectC
static object	atomObjNew (Type type, ConstructorInfo ctor, IntPtr obj)
static object	atomObjCreate (Type type, ConstructorInfo ctor, IntPtr obj)
static IntPtr	atomSelfCreate (ConstructorInfo ctor, IntPtr obj, IntPtr env)
static object	atomSelfNull (ConstructorInfo ctor)
static void	atomSelfUnlink (IntPtr self, IntPtr env)
static ConstructorInfo	getCtor (Type type)
static string	Name (IntPtr mkrt, IntPtr obj)

Additional Inherited Members
Protected Member Functions inherited from csmkkernel::MkObjectC
	MkObjectC (IntPtr obj)
	MkObjectC ()
virtual void	Dispose (bool disposing)
Protected Attributes inherited from csmkkernel::MkObjectC
IntPtr	pmkrt
Properties inherited from csmkkernel::MkObjectC
IntPtr	hdl
IntPtr	hdl_null_allow
IntPtr	mkrt

Detailed Description

MqFactoryC - the class known as fct or factory is used to provide an interface to create one or more new MqContextC …

The factory is an important part of the object management and has the following basic features:

1. create/delete a MqContextC defined by a MqFactoryC
2. infrastructure to host multiple MqFactoryC in a single executable
3. provide an identifier used for factory-lookup and as an unique-application-name
4. identification of a client and a server in an application-link

Without a factory only the pipe-feature without the child-feature is guaranteed to work. Other features may work, this depends of the "flexibility" of the programming-language.

The link between the MqFactoryS-identifier and the MqFactoryC is important for the future development of csmqmsgque. Message-Routing, Service-Location and Persistent-Transactions depend on this feature.

The relationship between the MqFactoryC and the MqContextC is the same as the relationship between a type (MqFactoryS) and an object (MqContextS) of a regular programming language. The MqFactoryC define the type of the server and the MqContextC define a single object of the server process or thread.

                                     Application
|-------------------------------------------------------------------------------------|
|--------------- physical host 1 -----------------------|------ physical host 2 ------|
|-------- process-1 --------|-------- process-2 --------|-- process-3 --|---- … ------|
 thread-1     thread-2…      thread-1…     thread-2…      thread-1…       thread-…
  factory-A     factory-X     factory-Y…    factory-Z…
   object-1     object-1   object-…    …
   object-2     object-2   …
   object-3     object-3
   …              …

A server has a single MqFactoryC object per thread or process but multiple MqFactoryC objects per application. Decreasing the size and the complexity of a MqContextC object will improve the server performance. In future more fields, defined in the MqSetupS attribute of the the MqContextC object, will move into MqFactoryC object.

Definition at line 324 of file MqFactoryC.cs.

Member Function Documentation

MqFactoryC_ObjNew()

static MqFactoryC csmqmsgque.MqFactoryC.MqFactoryC_ObjNew ( IntPtr hdl )

inlinestatic

Definition at line 40 of file MqFactoryC.cs.

                                                            {
      return hdl != IntPtr.Zero ? (MqFactoryC) atomObjNew(typeof(MqFactoryC), ctor, hdl) : MK_NULL.Value;
    }

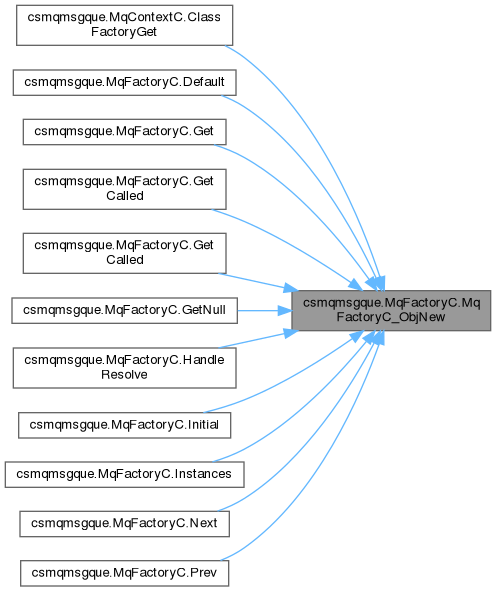

Here is the caller graph for this function:

---

The documentation for this class was generated from the following file:

• MqFactoryC.cs
