csmqmsgque.MqDumpC Class Reference

MqDumpC - the class known as dmp or dump is used to export a csmqmsgque data package as binary … More...

Inheritance diagram for csmqmsgque.MqDumpC:

Collaboration diagram for csmqmsgque.MqDumpC:

Public Member Functions
new MqDumpC	Next ()
	C#: MqDumpC dmp.Next() → C-API get next instance from linked-list of MqDumpS type
new MqDumpC	Prev ()
	C#: MqDumpC dmp.Prev() → C-API get previous instance from linked-list of MqDumpS type
long	SizeGet ()
	C#: long dump.SizeGet() → C-API report the binary data size from an MqDumpS object
string	TokenGet ()
	C#: string dump.TokenGet() → C-API return the MqContextC_ServiceApi_Identifer …
	MqDumpC (MqContextC ctx, MqDumpC dumpP_inout=null)
	CONSTRUCTOR.
byte[]	BinGet ()
	C#: byte[] dump.BinGet() → C-API export the binary data from an MqDumpS object
void	Import (MqContextC ctx)
	C#: dump.Import(MqContextC ctx) → C-API import the dump-package into the ctx-read-data-package …
Public Member Functions inherited from csmkkernel::MkObjectC
delegate void	MkObjectDeleteSCB (string typeName, int typeHdl, int objHdl)
void	ErrorCheck (MkErrorE err)
bool	Check ()
string	ToNameOfClass ()
void	HandleDelete ()
bool	HandleExists ()
Int32	HandleGet ()
Int32	HandleGetOfType ()
Int32	HandleGetOr0 ()
MkObjectC	Next ()
MkObjectC	Prev ()
void	DbgDump (string message="var",[CallerMemberName]string callfunc=null)
void	DbgL (string message, int debug=0,[CallerMemberName]string callfunc=null, int lvl=0)
void	DbgLogC ([CallerMemberName]string callfunc=null)
void	DbgO ([CallerMemberName]string callfunc=null)
void	DbgSTACK (int skip=0, int num=-1,[CallerMemberName]string callfunc=null)
void	LogC (string message, int debug=0,[CallerMemberName]string callfunc=null)
void	LogHEX (string callfunc, byte[] data)
void	Log (MkObjectC fmtobj=null, int debug=0,[CallerMemberName]string callfunc=null, int lvl=0)
void	LogLong (MkObjectC fmtobj=null, int debug=0,[CallerMemberName]string callfunc=null, int lvl=0)
void	LogShort (MkObjectC fmtobj=null, int debug=0,[CallerMemberName]string callfunc=null, int lvl=0)
void	LogType (MkObjectC fmtobj=null, int debug=0,[CallerMemberName]string callfunc=null, int lvl=0)
MkErrorC	ErrorCatch (Exception exception=null,[CallerMemberName]string callfunc=null)
MkErrorC	ToError ()
bool	IsNull ()
string	ToName ()
string	ToNameOfType ()
override string	ToString ()
int	RefGet ()
void	SysKill (int pid, int signal)
int	SysGetPid ()
void	Dispose ()
void	Delete ()

Static Public Member Functions
static MqDumpC	MqDumpC_ObjNew (IntPtr hdl)
new static MqDumpC	HandleResolve (Int32 netHdl)
	C#: [static] MqDumpC MqDumpC.HandleResolve(Int32 netHdl) → C-API Handle-Resolve-Slot - return a MqDumpC from netHdl or null if invalid…
new static MqDumpC	Instances ()
	C#: [static] MqDumpC MqDumpC.Instances() → C-API get head-instance from linked-list of MqDumpS type …
new static MqDumpC	GetNull ()
	C#: [static] MqDumpC MqDumpC.GetNull() → C-API Null-Slot - return a MqDumpC typed NULL instance …
static MqDumpC	Error (MqContextC error, MqDumpC dumpP_inout=null)
	C#: [constructor,static] MqDumpC MqDumpC.Error(MqContextC error, MqDumpC dumpP_inout = null) → C-API export the context->error into the dump-package …
static MqDumpC	Export (MqContextC ctx, MqDumpC dumpP_inout=null)
	C#: [constructor,static] MqDumpC MqDumpC.Export(MqContextC ctx, MqDumpC dumpP_inout = null) → C-API create a MqDumpC as export of the ctx-read-data-package …
static MqDumpC	BinSet (byte[] data)
	C#: [constructor,static] MqDumpC MqDumpC.BinSet(byte[] data) → C-API create an MqDumpS object from binary data
Static Public Member Functions inherited from csmkkernel::MkObjectC
static MkObjectC	MkObjectC_ObjNew (IntPtr hdl)
static IntPtr	getOBJ (string cls, MkObjectC obj)
static IntPtr	getOBJ_null_allow (MkObjectC obj)
static MkObjectC	HandleResolve (Int32 netHdl)
static void	HandleDeleteByNetHdl (Int32 netHdl)
static MkObjectC	Instances ()
static MkObjectC	GetNull ()
static void	DbgM (string message, int debug=0,[CallerMemberName]string callfunc=null, int lvl=0)
static int	SysHashI32 (string key, int length=-1)
static string	SysHashSTR (string key, int length=-1)
static void	DeleteCallbackCleanup (string ident)
static void	DeleteCallbackSetup (string ident, MkObjectDeleteSCB callback=null, string filter=null)
static int	getPId ()
static int	getTId ()
static string	getStackTrace (int level=2)
static string	getCallerProc (int level=2)
static int	getCallerLine (int level=2)
static string	getCallerFile (int level=2)

Static Protected Member Functions
static IntPtr	CTOR (MqContextC ctx, MqDumpC dumpP_inout=null)
	C#: [constructor,static] MqDumpC MqDumpC.Export(MqContextC ctx, MqDumpC dumpP_inout = null) → C-API create a MqDumpC as export of the ctx-read-data-package …
Static Protected Member Functions inherited from csmkkernel::MkObjectC
static object	atomObjNew (Type type, ConstructorInfo ctor, IntPtr obj)
static object	atomObjCreate (Type type, ConstructorInfo ctor, IntPtr obj)
static IntPtr	atomSelfCreate (ConstructorInfo ctor, IntPtr obj, IntPtr env)
static object	atomSelfNull (ConstructorInfo ctor)
static void	atomSelfUnlink (IntPtr self, IntPtr env)
static ConstructorInfo	getCtor (Type type)
static string	Name (IntPtr mkrt, IntPtr obj)

Additional Inherited Members
Protected Member Functions inherited from csmkkernel::MkObjectC
	MkObjectC (IntPtr obj)
	MkObjectC ()
virtual void	Dispose (bool disposing)
Protected Attributes inherited from csmkkernel::MkObjectC
IntPtr	pmkrt
Properties inherited from csmkkernel::MkObjectC
IntPtr	hdl
IntPtr	hdl_null_allow
IntPtr	mkrt

Detailed Description

MqDumpC - the class known as dmp or dump is used to export a csmqmsgque data package as binary …

The dump is used to exchange data with external counterparts such as a database or a user-specific infrastructure.

There are 3 different function that deal with a dump:

1. The MqDumpExport export the read-data-package from the calling context to a dump.
2. The MqDumpImport imports the dump into the read-data-package of the calling context. All MqContextC READ API functions can be used to read the data from the read-data-package.
3. The MqProxyForward imports the dump into the send-data-package of the calling context. All MqContextC SEND API functions can be used to write the data into the send-data-package

See also

MqContextC PROXY API

Definition at line 175 of file MqDumpC.cs.

Member Function Documentation

MqDumpC_ObjNew()

static MqDumpC csmqmsgque.MqDumpC.MqDumpC_ObjNew ( IntPtr hdl )

inlinestatic

Definition at line 39 of file MqDumpC.cs.

                                                      {
      return hdl != IntPtr.Zero ? (MqDumpC) atomObjNew(typeof(MqDumpC), ctor, hdl) : MK_NULL.Value;
    }

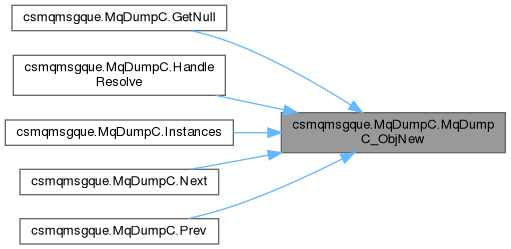

Here is the caller graph for this function:

---

The documentation for this class was generated from the following file:

• MqDumpC.cs
