cssq3lite.Sq3BlobC Class Reference

Sq3BlobC - the class known as sq3blob or Blob define by Sq3BlobS … More...

Inheritance diagram for cssq3lite.Sq3BlobC:

Collaboration diagram for cssq3lite.Sq3BlobC:

Public Member Functions
new Sq3BlobC	Next ()
	C#: Sq3BlobC blob.Next() → C-API get next instance from linked-list of Sq3BlobS type
new Sq3BlobC	Prev ()
	C#: Sq3BlobC blob.Prev() → C-API get previous instance from linked-list of Sq3BlobS type
MkBufferC	Read (MkBufferC Z_inout, int iOffset)
	C#: MkBufferC sq3blob.Read(MkBufferC Z_inout, int iOffset) → C-API Read Data From A BLOB Incrementally …
int	Bytes ()
	C#: int sq3blob.Bytes() → C-API Return The Size Of An Open BLOB …
void	Reopen (long arg1)
	C#: sq3blob.Reopen(long arg1) → C-API Move a BLOB Handle to a New Row …
void	Write (MkBufferC z, int iOffset)
	C#: sq3blob.Write(MkBufferC z, int iOffset) → C-API Write Data Into A BLOB Incrementally …
	Sq3BlobC (Sq3LiteC sq3lite, string zDb, string zTable, string zColumn, long iRow, int flags)
	CONSTRUCTOR.
Public Member Functions inherited from csmkkernel::MkObjectC
delegate void	MkObjectDeleteSCB (string typeName, int typeHdl, int objHdl)
void	ErrorCheck (MkErrorE err)
bool	Check ()
string	ToNameOfClass ()
void	HandleDelete ()
bool	HandleExists ()
Int32	HandleGet ()
Int32	HandleGetOfType ()
Int32	HandleGetOr0 ()
MkObjectC	Next ()
MkObjectC	Prev ()
void	DbgDump (string message="var",[CallerMemberName]string callfunc=null)
void	DbgL (string message, int debug=0,[CallerMemberName]string callfunc=null, int lvl=0)
void	DbgLogC ([CallerMemberName]string callfunc=null)
void	DbgO ([CallerMemberName]string callfunc=null)
void	DbgSTACK (int skip=0, int num=-1,[CallerMemberName]string callfunc=null)
void	LogC (string message, int debug=0,[CallerMemberName]string callfunc=null)
void	LogHEX (string callfunc, byte[] data)
void	Log (MkObjectC fmtobj=null, int debug=0,[CallerMemberName]string callfunc=null, int lvl=0)
void	LogLong (MkObjectC fmtobj=null, int debug=0,[CallerMemberName]string callfunc=null, int lvl=0)
void	LogShort (MkObjectC fmtobj=null, int debug=0,[CallerMemberName]string callfunc=null, int lvl=0)
void	LogType (MkObjectC fmtobj=null, int debug=0,[CallerMemberName]string callfunc=null, int lvl=0)
MkErrorC	ErrorCatch (Exception exception=null,[CallerMemberName]string callfunc=null)
MkErrorC	ToError ()
bool	IsNull ()
string	ToName ()
string	ToNameOfType ()
override string	ToString ()
int	RefGet ()
void	SysKill (int pid, int signal)
int	SysGetPid ()
void	Dispose ()
void	Delete ()

Static Public Member Functions
static Sq3BlobC	Sq3BlobC_ObjNew (IntPtr hdl)
new static Sq3BlobC	HandleResolve (Int32 netHdl)
	C#: [static] Sq3BlobC Sq3BlobC.HandleResolve(Int32 netHdl) → C-API Handle-Resolve-Slot - return a Sq3BlobC from netHdl or null if invalid…
new static Sq3BlobC	Instances ()
	C#: [static] Sq3BlobC Sq3BlobC.Instances() → C-API get head-instance from linked-list of Sq3BlobS type …
new static Sq3BlobC	GetNull ()
	C#: [static] Sq3BlobC Sq3BlobC.GetNull() → C-API Null-Slot - return a Sq3BlobC typed NULL instance …
static Sq3BlobC	Open (Sq3LiteC sq3lite, string zDb, string zTable, string zColumn, long iRow, int flags)
	C#: [constructor,static] Sq3BlobC Sq3BlobC.Open(Sq3LiteC sq3lite, string zDb, string zTable, string zColumn, long iRow, int flags) → C-API Open A BLOB For Incremental I/O …
Static Public Member Functions inherited from csmkkernel::MkObjectC
static MkObjectC	MkObjectC_ObjNew (IntPtr hdl)
static IntPtr	getOBJ (string cls, MkObjectC obj)
static IntPtr	getOBJ_null_allow (MkObjectC obj)
static MkObjectC	HandleResolve (Int32 netHdl)
static void	HandleDeleteByNetHdl (Int32 netHdl)
static MkObjectC	Instances ()
static MkObjectC	GetNull ()
static void	DbgM (string message, int debug=0,[CallerMemberName]string callfunc=null, int lvl=0)
static int	SysHashI32 (string key, int length=-1)
static string	SysHashSTR (string key, int length=-1)
static void	DeleteCallbackCleanup (string ident)
static void	DeleteCallbackSetup (string ident, MkObjectDeleteSCB callback=null, string filter=null)
static int	getPId ()
static int	getTId ()
static string	getStackTrace (int level=2)
static string	getCallerProc (int level=2)
static int	getCallerLine (int level=2)
static string	getCallerFile (int level=2)

Static Protected Member Functions
static IntPtr	CTOR (Sq3LiteC sq3lite, string zDb, string zTable, string zColumn, long iRow, int flags)
	C#: [constructor,static] Sq3BlobC Sq3BlobC.Open(Sq3LiteC sq3lite, string zDb, string zTable, string zColumn, long iRow, int flags) → C-API Open A BLOB For Incremental I/O …
Static Protected Member Functions inherited from csmkkernel::MkObjectC
static object	atomObjNew (Type type, ConstructorInfo ctor, IntPtr obj)
static object	atomObjCreate (Type type, ConstructorInfo ctor, IntPtr obj)
static IntPtr	atomSelfCreate (ConstructorInfo ctor, IntPtr obj, IntPtr env)
static object	atomSelfNull (ConstructorInfo ctor)
static void	atomSelfUnlink (IntPtr self, IntPtr env)
static ConstructorInfo	getCtor (Type type)
static string	Name (IntPtr mkrt, IntPtr obj)

Additional Inherited Members
Protected Member Functions inherited from csmkkernel::MkObjectC
	MkObjectC (IntPtr obj)
	MkObjectC ()
virtual void	Dispose (bool disposing)
Protected Attributes inherited from csmkkernel::MkObjectC
IntPtr	pmkrt
Properties inherited from csmkkernel::MkObjectC
IntPtr	hdl
IntPtr	hdl_null_allow
IntPtr	mkrt

Detailed Description

Sq3BlobC - the class known as sq3blob or Blob define by Sq3BlobS …

Struct to represent the data of the Sq3BlobC …

A Handle To An Open BLOB …

An instance of this object represents an open BLOB on which incremental BLOB I/O can be performed. Objects of this type are created by Sq3BlobOpen () and destroyed by Sq3BlobClose (). The Sq3BlobRead () and Sq3BlobWrite () interfaces can be used to read or write small subsections of the BLOB. The Sq3BlobBytes () interface returns the size of the BLOB in bytes.

Reference code from sqlite3:

typedef struct sqlite3_blob sqlite3_blob;

Definition at line 189 of file Sq3BlobC_cs.cs.

Member Function Documentation

Sq3BlobC_ObjNew()

static Sq3BlobC cssq3lite.Sq3BlobC.Sq3BlobC_ObjNew ( IntPtr hdl )

inlinestatic

Definition at line 38 of file Sq3BlobC_cs.cs.

                                                        {
      return hdl != IntPtr.Zero ? (Sq3BlobC) atomObjNew(typeof(Sq3BlobC), ctor, hdl) : MK_NULL.Value;
    }

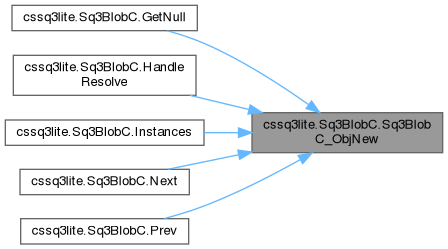

Here is the caller graph for this function:

---

The documentation for this class was generated from the following file:

• Sq3BlobC_cs.cs
