Sq3LiteC - the class known as sq3lite or Lite defined by Sq3LiteS … More...

Inheritance diagram for cssq3lite.Sq3LiteC:

Collaboration diagram for cssq3lite.Sq3LiteC:

Classes
struct	Sq3Call

Public Member Functions
delegate void	Sq3LiteExecCCB (string[] vals, string[] cols)
	implements the cssq3lite API object: public version from LcConfigIncludeF as method

delegate void	Sq3LiteExecV2CCB (MkBufferListC vals, MkBufferListC cols)

new Sq3LiteC	Next ()
	`C#: Sq3LiteC lite.Next()` → C-API get next instance from linked-list of Sq3LiteS type

new Sq3LiteC	Prev ()
	`C#: Sq3LiteC lite.Prev()` → C-API get previous instance from linked-list of Sq3LiteS type

void	BusyTimeout (int ms)
	`C#: sq3lite.BusyTimeout(int ms)` → C-API Set A Busy Timeout …

void	DeclareVtab (string zSQL)
	`C#: sq3lite.DeclareVtab(string zSQL)` → C-API Declare The Schema Of A Virtual Table …

void	ExtendedResultCodes (int onoff)
	`C#: sq3lite.ExtendedResultCodes(int onoff)` → C-API Enable Or Disable Extended Result Codes …

void	Limit (Sq3LimitE id, int newVal)
	`C#: sq3lite.Limit(Sq3LimitE id, int newVal)` → C-API Run-time Limits …

Sq3ErrorE	ErrCode ()
	`C#: Sq3ErrorE db.ErrCode()` → C-API Error Codes And Messages …

string	ErrMsg ()
	`C#: string sq3lite.ErrMsg()` → C-API Error Codes And Messages …

void	ErrorOffset ()
	`C#: db.ErrorOffset()` → C-API Error Codes And Messages …

Sq3ExtendetResultCodesE	ExtendetErrCode ()
	`C#: Sq3ExtendetResultCodesE db.ExtendetErrCode()` → C-API Error Codes And Messages …

void	SystemErrno ()
	`C#: sq3lite.SystemErrno()` → C-API Low-level system error code …

void	ExecV2 (string sql, Sq3LiteExecV2CCB callback=null)
	`C#: sq3lite.ExecV2(string sql, Sq3LiteExecV2CCB\|Sq3LiteExecV2IF callback = null)` → C-API The Sq3LiteExecV2() interface is a convenience wrapper around Sq3StmtPrepareV2(), Sq3StmtStep(), and Sq3StmtFinalize(), that allows an application to run multiple statements of SQL without having to use a lot of C code.

void	ExecV2 (string sql, Sq3LiteExecV2IF callback=null)
	`C#: sq3lite.ExecV2(string sql, Sq3LiteExecV2CCB\|Sq3LiteExecV2IF callback = null)` → C-API The Sq3LiteExecV2() interface is a convenience wrapper around Sq3StmtPrepareV2(), Sq3StmtStep(), and Sq3StmtFinalize(), that allows an application to run multiple statements of SQL without having to use a lot of C code.

void	Exec (string sql, Sq3LiteExecCCB callback_data=null)
	`C#: sq3lite.Exec(string sql, Sq3LiteExecCCB\|Sq3LiteExecIF callback_data = null)` → C-API One-Step Query Execution Interface …

void	Exec (string sql, Sq3LiteExecIF callback_data=null)
	`C#: sq3lite.Exec(string sql, Sq3LiteExecCCB\|Sq3LiteExecIF callback_data = null)` → C-API One-Step Query Execution Interface …

int	GetAutocommit ()
	`C#: int sq3lite.GetAutocommit()` → C-API Test For Auto-Commit Mode …

long	LastInsertRowid ()
	`C#: long sq3lite.LastInsertRowid()` → C-API Last Insert Rowid …

void	TxnState (string zSchema)
	`C#: sq3lite.TxnState(string zSchema)` → C-API Determine the transaction state of a database …

void	VtabOnConflict ()
	`C#: sq3lite.VtabOnConflict()` → C-API Determine The Virtual Table Conflict Policy …

MkBufferListC	DbStatusBFL (Sq3DbStatusE op, bool resetFlg)
	`C#: MkBufferListC sq3lite.DbStatusBFL(Sq3DbStatusE op, bool resetFlg)` → C-API Database Connection Status …

void	DbCacheflush ()
	`C#: sq3lite.DbCacheflush()` → C-API Flush caches to disk mid-transaction …

string	DbFilename (string zDbName)
	`C#: string db.DbFilename(string zDbName)` → C-API Return The Filename For A Database Connection …

string	DbName (int N)
	`C#: string db.DbName(int N)` → C-API Return The Schema Name For A Database Connection …

void	DbReadonly (string zDbName)
	`C#: db.DbReadonly(string zDbName)` → C-API Determine if a database is read-only …

void	DbReleaseMemory ()
	`C#: sq3lite.DbReleaseMemory()` → C-API Free Memory Used By A Database Connection …

void	Deserialize (string zSchema, byte[] pData, Sq3DeSerializeEF mFlags)
	`C#: sq3lite.Deserialize(string zSchema, byte[] pData, Sq3DeSerializeEF mFlags)` → C-API Deserialize a database …

void	DropModules (MkBufferListC azKeepBfl)
	`C#: sq3lite.DropModules(MkBufferListC azKeepBfl)` → C-API Remove Unnecessary Virtual Table Implementations …

void	OverloadFunction (string zFuncName, int nArg)
	`C#: sq3lite.OverloadFunction(string zFuncName, int nArg)` → C-API Overload A Function For A Virtual Table …

byte[]	Serialize (string zSchema, Sq3SerializeE mFlags)
	`C#: byte[] sq3lite.Serialize(string zSchema, Sq3SerializeE mFlags)` → C-API Serialize a database …

List< object >	DbStatus (Sq3DbStatusE op, bool resetFlg)
	`C#: {pCur:int pHiwtr:int} sq3lite.DbStatus(Sq3DbStatusE op, bool resetFlg)` → C-API Database Connection Status …

List< object >	TableColumnMetadata (string zDbName, string zTableName, string zColumnName)
	`C#: {pzDataType:string pzCollSeq:string pNotNull:int pPrimaryKey:int pAutoinc:int} db.TableColumnMetadata(string zDbName, string zTableName, string zColumnName)` → C-API Extract Metadata About A Column Of A Table …

void	WalAutocheckpoint (int N)
	`C#: db.WalAutocheckpoint(int N)` → C-API Configure an auto-checkpoint …

List< object >	WalCheckpointV2 (string zDb, int eMode)
	`C#: {pnLog:int pnCkpt:int} db.WalCheckpointV2(string zDb, int eMode)` → C-API Checkpoint a database …

void	Interrupt ()
	`C#: sq3lite.Interrupt()` → C-API Interrupt A Long-Running Query …

bool	IsInterrupted ()
	`C#: bool sq3lite.IsInterrupted()` → C-API Interrupt A Long-Running Query …

int	Changes ()
	`C#: int sq3lite.Changes()` → C-API Count The Number Of Rows Modified …

long	Changes64 ()
	`C#: long sq3lite.Changes64()` → C-API Count The Number Of Rows Modified …

void	SetLastInsertRowid (long arg1)
	`C#: sq3lite.SetLastInsertRowid(long arg1)` → C-API Set the Last Insert Rowid value …

int	TotalChanges ()
	`C#: int sq3lite.TotalChanges()` → C-API Total Number Of Rows Modified …

long	TotalChanges64 ()
	`C#: long sq3lite.TotalChanges64()` → C-API Total Number Of Rows Modified …

	Sq3LiteC (string filename, Sq3OpenEF flags=Sq3OpenEF.READWRITE\|Sq3OpenEF.CREATE, string zVfs=null)
	CONSTRUCTOR.

Sq3StmtC	PrepareV2 (string zSql)
	`C#: [constructor] Sq3StmtC db.PrepareV2(string zSql)` → C-API Compiling An SQL Statement …

void	CloseV2 ()
	`C#: [destructor] sq3lite.CloseV2()` → C-API Closing A Database Connection …

Public Member Functions inherited from csmkkernel::MkObjectC
delegate void	MkObjectDeleteSCB (string typeName, int typeHdl, int objHdl)

void	ErrorCheck (MkErrorE err)

bool	Check ()

string	ToNameOfClass ()

void	HandleDelete ()

bool	HandleExists ()

Int32	HandleGet ()

Int32	HandleGetOfType ()

Int32	HandleGetOr0 ()

MkObjectC	Next ()

MkObjectC	Prev ()

void	DbgDump (string message="var",[CallerMemberName]string callfunc=null)

void	DbgL (string message, int debug=0,[CallerMemberName]string callfunc=null, int lvl=0)

void	DbgLogC ([CallerMemberName]string callfunc=null)

void	DbgO ([CallerMemberName]string callfunc=null)

void	DbgSTACK (int skip=0, int num=-1,[CallerMemberName]string callfunc=null)

void	LogC (string message, int debug=0,[CallerMemberName]string callfunc=null)

void	LogHEX (string callfunc, byte[] data)

void	Log (MkObjectC fmtobj=null, int debug=0,[CallerMemberName]string callfunc=null, int lvl=0)

void	LogLong (MkObjectC fmtobj=null, int debug=0,[CallerMemberName]string callfunc=null, int lvl=0)

void	LogShort (MkObjectC fmtobj=null, int debug=0,[CallerMemberName]string callfunc=null, int lvl=0)

void	LogType (MkObjectC fmtobj=null, int debug=0,[CallerMemberName]string callfunc=null, int lvl=0)

MkErrorC	ErrorCatch (Exception exception=null,[CallerMemberName]string callfunc=null)

MkErrorC	ToError ()

bool	IsNull ()

string	ToName ()

string	ToNameOfType ()

override string	ToString ()

int	RefGet ()

void	SysKill (int pid, int signal)

int	SysGetPid ()

void	Dispose ()

void	Delete ()

Static Public Member Functions
static Sq3LiteC	Sq3LiteC_ObjNew (IntPtr hdl)

new static Sq3LiteC	HandleResolve (Int32 netHdl)
	`C#: [static] Sq3LiteC Sq3LiteC.HandleResolve(Int32 netHdl)` → C-API Handle-Resolve-Slot - return a Sq3LiteC from *netHdl* or null if invalid…

new static Sq3LiteC	Instances ()
	`C#: [static] Sq3LiteC Sq3LiteC.Instances()` → C-API get head-instance from linked-list of Sq3LiteS type …

new static Sq3LiteC	GetNull ()
	`C#: [static] Sq3LiteC Sq3LiteC.GetNull()` → C-API Null-Slot - return a Sq3LiteC typed `NULL` instance …

static string	ErrStr (int arg0)
	`C#: [static] string Sq3LiteC.ErrStr(int arg0)` → C-API Error Codes And Messages …

static void	Sleep (int arg0)
	`C#: [static] Sq3LiteC.Sleep(int arg0)` → C-API Suspend Execution For A Short Time …

static Sq3LiteC	OpenV2 (string filename, Sq3OpenEF flags=Sq3OpenEF.READWRITE\|Sq3OpenEF.CREATE, string zVfs=null)
	`C#: [constructor,static] Sq3LiteC Sq3LiteC.OpenV2(string filename, Sq3OpenEF flags = SQ3_OPEN_READWRITE\|SQ3_OPEN_CREATE, string zVfs = null)` → C-API Opening A New Database Connection …

Static Public Member Functions inherited from csmkkernel::MkObjectC
static MkObjectC	MkObjectC_ObjNew (IntPtr hdl)

static IntPtr	getOBJ (string cls, MkObjectC obj)

static IntPtr	getOBJ_null_allow (MkObjectC obj)

static MkObjectC	HandleResolve (Int32 netHdl)

static void	HandleDeleteByNetHdl (Int32 netHdl)

static MkObjectC	Instances ()

static MkObjectC	GetNull ()

static void	DbgM (string message, int debug=0,[CallerMemberName]string callfunc=null, int lvl=0)

static int	SysHashI32 (string key, int length=-1)

static string	SysHashSTR (string key, int length=-1)

static void	DeleteCallbackCleanup (string ident)

static void	DeleteCallbackSetup (string ident, MkObjectDeleteSCB callback=null, string filter=null)

static int	getPId ()

static int	getTId ()

static string	getStackTrace (int level=2)

static string	getCallerProc (int level=2)

static int	getCallerLine (int level=2)

static string	getCallerFile (int level=2)

Static Protected Member Functions
static IntPtr	CTOR (string filename, Sq3OpenEF flags=Sq3OpenEF.READWRITE\|Sq3OpenEF.CREATE, string zVfs=null)
	`C#: [constructor,static] Sq3LiteC Sq3LiteC.OpenV2(string filename, Sq3OpenEF flags = SQ3_OPEN_READWRITE\|SQ3_OPEN_CREATE, string zVfs = null)` → C-API Opening A New Database Connection …

Static Protected Member Functions inherited from csmkkernel::MkObjectC
static object	atomObjNew (Type type, ConstructorInfo ctor, IntPtr obj)

static object	atomObjCreate (Type type, ConstructorInfo ctor, IntPtr obj)

static IntPtr	atomSelfCreate (ConstructorInfo ctor, IntPtr obj, IntPtr env)

static object	atomSelfNull (ConstructorInfo ctor)

static void	atomSelfUnlink (IntPtr self, IntPtr env)

static ConstructorInfo	getCtor (Type type)

static string	Name (IntPtr mkrt, IntPtr obj)

Additional Inherited Members
Protected Member Functions inherited from csmkkernel::MkObjectC
	MkObjectC (IntPtr obj)

	MkObjectC ()

virtual void	Dispose (bool disposing)

Protected Attributes inherited from csmkkernel::MkObjectC
IntPtr	pmkrt

Properties inherited from csmkkernel::MkObjectC
IntPtr	hdl

IntPtr	hdl_null_allow

IntPtr	mkrt

Detailed Description

Sq3LiteC - the class known as sq3lite or Lite defined by Sq3LiteS …

Struct to represent the data of the Sq3LiteC …

Database Connection Handle …

Each open SQLite database is represented by a pointer to an instance of the opaque structure named "sqlite3". It is useful to think of an Sq3LiteC pointer as an object. The sqlite3_open (), sqlite3_open16 (), and Sq3LiteOpenV2 () interfaces are its constructors, and sqlite3_close () and Sq3LiteCloseV2 () are its destructors. There are many other interfaces (such as Sq3StmtPrepareV2 (), sqlite3_create_function (), and Sq3LiteBusyTimeout () to name but three) that are methods on an Sq3LiteC object.

Reference code from sqlite3:

typedef struct sqlite3 sqlite3;

sqlite3

struct sqlite3 sqlite3

Definition sqlite3_modified.h:274

Definition at line 570 of file Sq3LiteC_cs.cs.

Member Function Documentation

◆ Sq3LiteC_ObjNew()

static Sq3LiteC cssq3lite.Sq3LiteC.Sq3LiteC_ObjNew ( IntPtr hdl )

inlinestatic

Definition at line 38 of file Sq3LiteC_cs.cs.

                                                        {
      return hdl != IntPtr.Zero ? (Sq3LiteC) atomObjNew(typeof(Sq3LiteC), ctor, hdl) : MK_NULL.Value;
    }

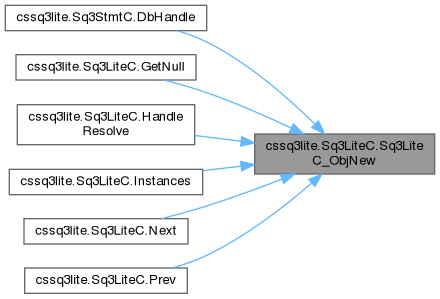

Here is the caller graph for this function:

◆ Sq3LiteExecCCB()

delegate void cssq3lite.Sq3LiteC.Sq3LiteExecCCB	(	string[]	vals,
		string[]	cols )

implements the cssq3lite API object: public version from LcConfigIncludeF as method

◆ Sq3LiteExecV2CCB()

delegate void cssq3lite.Sq3LiteC.Sq3LiteExecV2CCB	(	MkBufferListC	vals,
		MkBufferListC	cols )

The documentation for this class was generated from the following files:
