Sq3FileC - the class known as sq3file or File defined by Sq3FileS … More...

Inheritance diagram for cssq3lite.Sq3FileC:

Collaboration diagram for cssq3lite.Sq3FileC:

Public Member Functions
new Sq3FileC	Next ()
	`C#: Sq3FileC file.Next()` → C-API get next instance from linked-list of Sq3FileS type

new Sq3FileC	Prev ()
	`C#: Sq3FileC file.Prev()` → C-API get previous instance from linked-list of Sq3FileS type

Public Member Functions inherited from csmkkernel::MkObjectC
delegate void	MkObjectDeleteSCB (string typeName, int typeHdl, int objHdl)

void	ErrorCheck (MkErrorE err)

bool	Check ()

string	ToNameOfClass ()

void	HandleDelete ()

bool	HandleExists ()

Int32	HandleGet ()

Int32	HandleGetOfType ()

Int32	HandleGetOr0 ()

MkObjectC	Next ()

MkObjectC	Prev ()

void	DbgDump (string message="var",[CallerMemberName]string callfunc=null)

void	DbgL (string message, int debug=0,[CallerMemberName]string callfunc=null, int lvl=0)

void	DbgLogC ([CallerMemberName]string callfunc=null)

void	DbgO ([CallerMemberName]string callfunc=null)

void	DbgSTACK (int skip=0, int num=-1,[CallerMemberName]string callfunc=null)

void	LogC (string message, int debug=0,[CallerMemberName]string callfunc=null)

void	LogHEX (string callfunc, byte[] data)

void	Log (MkObjectC fmtobj=null, int debug=0,[CallerMemberName]string callfunc=null, int lvl=0)

void	LogLong (MkObjectC fmtobj=null, int debug=0,[CallerMemberName]string callfunc=null, int lvl=0)

void	LogShort (MkObjectC fmtobj=null, int debug=0,[CallerMemberName]string callfunc=null, int lvl=0)

void	LogType (MkObjectC fmtobj=null, int debug=0,[CallerMemberName]string callfunc=null, int lvl=0)

MkErrorC	ErrorCatch (Exception exception=null,[CallerMemberName]string callfunc=null)

MkErrorC	ToError ()

bool	IsNull ()

string	ToName ()

string	ToNameOfType ()

override string	ToString ()

int	RefGet ()

void	SysKill (int pid, int signal)

int	SysGetPid ()

void	Dispose ()

void	Delete ()

Static Public Member Functions
static Sq3FileC	Sq3FileC_ObjNew (IntPtr hdl)

new static Sq3FileC	HandleResolve (Int32 netHdl)
	`C#: [static] Sq3FileC Sq3FileC.HandleResolve(Int32 netHdl)` → C-API Handle-Resolve-Slot - return a Sq3FileC from *netHdl* or null if invalid…

new static Sq3FileC	Instances ()
	`C#: [static] Sq3FileC Sq3FileC.Instances()` → C-API get head-instance from linked-list of Sq3FileS type …

new static Sq3FileC	GetNull ()
	`C#: [static] Sq3FileC Sq3FileC.GetNull()` → C-API Null-Slot - return a Sq3FileC typed `NULL` instance …

static Sq3FileC	DatabaseObject (string X)
	`C#: [constructor,static] Sq3FileC Sq3FileC.DatabaseObject(string X)` → C-API Database File Corresponding To A Journal …

Static Public Member Functions inherited from csmkkernel::MkObjectC
static MkObjectC	MkObjectC_ObjNew (IntPtr hdl)

static IntPtr	getOBJ (string cls, MkObjectC obj)

static IntPtr	getOBJ_null_allow (MkObjectC obj)

static MkObjectC	HandleResolve (Int32 netHdl)

static void	HandleDeleteByNetHdl (Int32 netHdl)

static MkObjectC	Instances ()

static MkObjectC	GetNull ()

static void	DbgM (string message, int debug=0,[CallerMemberName]string callfunc=null, int lvl=0)

static int	SysHashI32 (string key, int length=-1)

static string	SysHashSTR (string key, int length=-1)

static void	DeleteCallbackCleanup (string ident)

static void	DeleteCallbackSetup (string ident, MkObjectDeleteSCB callback=null, string filter=null)

static int	getPId ()

static int	getTId ()

static string	getStackTrace (int level=2)

static string	getCallerProc (int level=2)

static int	getCallerLine (int level=2)

static string	getCallerFile (int level=2)

Additional Inherited Members
Protected Member Functions inherited from csmkkernel::MkObjectC
	MkObjectC (IntPtr obj)

	MkObjectC ()

virtual void	Dispose (bool disposing)

Static Protected Member Functions inherited from csmkkernel::MkObjectC
static object	atomObjNew (Type type, ConstructorInfo ctor, IntPtr obj)

static object	atomObjCreate (Type type, ConstructorInfo ctor, IntPtr obj)

static IntPtr	atomSelfCreate (ConstructorInfo ctor, IntPtr obj, IntPtr env)

static object	atomSelfNull (ConstructorInfo ctor)

static void	atomSelfUnlink (IntPtr self, IntPtr env)

static ConstructorInfo	getCtor (Type type)

static string	Name (IntPtr mkrt, IntPtr obj)

Protected Attributes inherited from csmkkernel::MkObjectC
IntPtr	pmkrt

Properties inherited from csmkkernel::MkObjectC
IntPtr	hdl

IntPtr	hdl_null_allow

IntPtr	mkrt

Detailed Description

Sq3FileC - the class known as sq3file or File defined by Sq3FileS …

Struct to represent the data of the Sq3FileC …

OS Interface Open File Handle …

An Sq3FileC object represents an open file in the OS interface layer. Individual OS interface implementations will want to subclass this object by appending additional fields for their own use. The pMethods entry is a pointer to an sqlite3_io_methods object that defines methods for performing I/O operations on the open file.

Reference code from sqlite3:

typedef struct sqlite3_file sqlite3_file;
struct sqlite3_file {
  const struct sqlite3_io_methods *pMethods;  // Methods for an open file
};

Definition at line 148 of file Sq3FileC_cs.cs.

Member Function Documentation

◆ Sq3FileC_ObjNew()

static Sq3FileC cssq3lite.Sq3FileC.Sq3FileC_ObjNew ( IntPtr hdl )

inlinestatic

Definition at line 38 of file Sq3FileC_cs.cs.

                                                        {
      return hdl != IntPtr.Zero ? (Sq3FileC) atomObjNew(typeof(Sq3FileC), ctor, hdl) : MK_NULL.Value;
    }

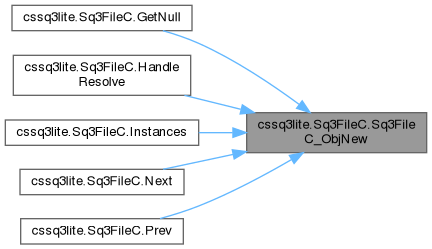

Here is the caller graph for this function:

The documentation for this class was generated from the following file:

Sq3FileC_cs.cs
