MkErrorC_CC_API

MkErrorC - the class known as err or error is used to create and manage an error message … More...

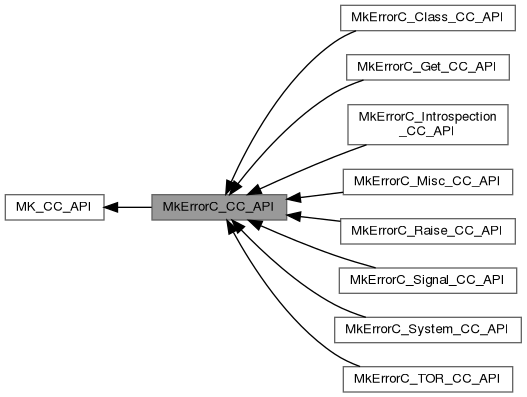

Collaboration diagram for MkErrorC_CC_API:

Topics
	MkErrorC_TOR_CC_API
	MkErrorC - various functions to 'create' and 'delete' a MkErrorS …
	MkErrorC_System_CC_API
	MkErrorC - various functions to raise a 'System' messagen on MkErrorS …
	MkErrorC_Signal_CC_API
	MkErrorC - various functions to set and check a 'signal' on a MkErrorS …
	MkErrorC_Get_CC_API
	MkErrorC - various functions to 'get' data out of a MkErrorS …
	MkErrorC_Raise_CC_API
	MkErrorC - various functions to 'raise' a MkErrorS …
	MkErrorC_Misc_CC_API
	MkErrorC - various functions to 'work' on a MkErrorS …
	MkErrorC_Introspection_CC_API
	MkErrorC_Class_CC_API
	MkErrorC - define the class …

Classes
struct	ccmkkernel::MkErrorC_A
	The data-type to store and handle the error-condition … → C-API: libmkkernel::MkErrorS More...
class	ccmkkernel::MkErrorC
	The data-type to store and handle the error-condition … → C-API: libmkkernel::MkErrorS More...

Functions
	ccmkkernel::MkErrorC::MkErrorC (MK_ERR hdl)

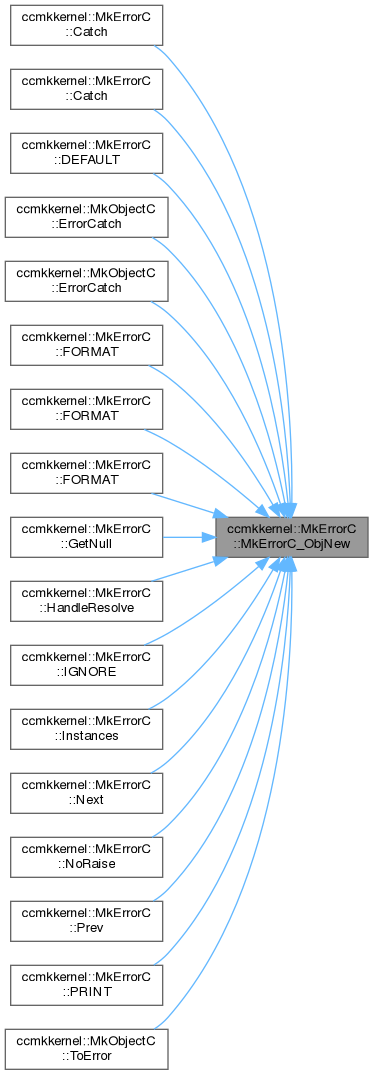

static MkErrorC *	ccmkkernel::MkErrorC::MkErrorC_ObjNew (MK_RT_ARGS MK_ERR hdl)
	return MkErrorC from LibMsgqueObject
MK_ERR	ccmkkernel::MkErrorC::getERR () const
	return the LibMsgqueObject from current MkErrorC instance
MK_ERR	ccmkkernel::MkErrorC::getERR__null_allow () const
	return the LibMsgqueObject from current MkErrorC instance
MK_ERRN	ccmkkernel::MkErrorC::getERRN () const
	(const) return the LibMsgqueObject from current MkErrorC instance
MK_ERRN	ccmkkernel::MkErrorC::getERRN__null_allow () const
	(const) return the LibMsgqueObject from current MkErrorC instance
static MK_ERR	ccmkkernel::MkErrorC::getERR (MkErrorC *clsHdl)
	return LibMsgqueObject from current MkErrorC pointer
static MK_ERR	ccmkkernel::MkErrorC::getERR__null_allow (MkErrorC *clsHdl)
	return LibMsgqueObject from current MkErrorC pointer
static MK_ERRN	ccmkkernel::MkErrorC::getERRN (const MkErrorC *clsHdl)
	(const) return LibMsgqueObject from current MkErrorC pointer
static MK_ERRN	ccmkkernel::MkErrorC::getERRN__null_allow (const MkErrorC *clsHdl)
	(const) return LibMsgqueObject from current MkErrorC pointer
static MK_ERR	ccmkkernel::MkErrorC::getERR (const MkErrorC &clsHdl)
	return LibMsgqueObject from current MkErrorC reference
static MK_ERR	ccmkkernel::MkErrorC::getERR__null_allow (const MkErrorC &clsHdl)
	return LibMsgqueObject from current MkErrorC reference
static MK_ERRN	ccmkkernel::MkErrorC::getERRN (const MkErrorC &clsHdl)
	(const) return LibMsgqueObject from current MkErrorC reference
static MK_ERRN	ccmkkernel::MkErrorC::getERRN__null_allow (const MkErrorC &clsHdl)
	(const) return LibMsgqueObject from current MkErrorC reference
bool	ccmkkernel::MkErrorC::Check () const
	check if pointer is still valid
	ccmkkernel::MkErrorC::MkErrorC (const MkErrorC &e)
	ccmkkernel::MkErrorC::MkErrorC (const MkExceptionC &ex)
static void	ccmkkernel::MkErrorC::Check (MK_MNGN mng, enum MkErrorE err)
static void	ccmkkernel::MkErrorC::Check (enum MkErrorE err)
static MkErrorC *	ccmkkernel::MkErrorC::FORMAT (MK_OBJ const fmtobj)
static bool	ccmkkernel::MkErrorC::IsEXIT_DEFAULT ()
static bool	ccmkkernel::MkErrorC::IsSOCKET_DEFAULT ()

Variables
static thread_local MkErrorC	ccmkkernel::MkErrorC::MK_NULL_REF = {(MK_OBJ)0}
#define	ErrorCC(errnum, message)
	customized edition of ErrorSetV …

Detailed Description

MkErrorC - the class known as err or error is used to create and manage an error message …

An error is a singleton object per thread created at startup and is located at MkRuntimeRLS using the datatype MkErrorC.

‍As error-indicator the enum libmkkernel::MkErrorE is used.

The MkErrorC is used to collect all data needed to handle an error and provide global ressources required to process and report the error.

The MkErrorC is also used to integrate the error-handling from ccmkkernel into the error-handling-code of the target C++.

Example from Filter6.cc → use MqContextErrorCatch to convert a C++ error into a ccmkkernel error

int MK_CDECL main (int argc, MK_STRN argv[])
{
  MqMsgque::CcMqSetup();
  // define factory
  auto Filter6F = MqFactoryCT<Filter6>::Add("Filter6");
  // modify default type
  Filter6F->Type()->fHelp = Filter6::Help;
  // create object from factory
  Filter6 *filter = Filter6F->New();
  try {
    filter->LinkCreate (MkBufferListC {argc, argv});
    filter->ProcessEvent (MQ_WAIT_FOREVER);
  } catch (const exception& e) {
    filter->ErrorCatch(e);
  }
  return filter->Exit();
}

MkExceptionC

MkExceptionC - The default-exception of the Programming-Language-Micro-Kernel (PLMK) …

The Programming-Language-Micro-Kernel (PLMK) provide with MkErrorC a complete error-handling with focus to support the "C" Programming-Language. The support include catch, raise, signal and attributes. In addition every Target-Programming-Language (TPL) add their own error-handling and the purpose of MkExceptionC is to integrate the MkErrorC into the Target-Programming-Language (TPL).

The default-exception MkExceptionC is used to connect the MkErrorC with the Target-Programming-Language (TPL) error-object.

• The default-error is defined in MkRuntimeS::error_mk.
• On error the default-error is set to the error-data, the MkErrorE status change to libmkkernel::MK_ERROR.
• The non-C language create a copy from the default-error and throw the copy as MkExceptionC exception.
• The C language just return the MkErrorE status of the default-error.

The implementation of an exception depends heavily on the Target-Programming-Language (TPL), starting with no exception at all, for example. C, an exception as a class object, or as an exception as a global attribute.

Attention

• All MkExceptionC code is implemented at the Target-Programming-Language (TPL) without support by the Programming-Language-Micro-Kernel (PLMK) compiler.
• By default, MkExceptionC is only used internally, hidden by the class MkErrorC.

ExceptionCheck

Checks if Exception is of type MkExceptionC and returns true or false …

Example: test case to check KILL and RECOVER feature, check on MkExceptionC

            MK_I32 PID, RET=0;
            auto VAL = ReadBUF();
            Client cl;
            cl.LinkCreate(ConfigGetStartAs());
            cl.Send("W","GPID@I", &PID);
            SysKill(PID,9);
            for (int i = 0; i < 3; i++) {
              try {
                cl.Send("W","ECOI:U@I", VAL, &RET);
              } catch (const MkExceptionC &ex) {
                auto err = cl.ErrorCatch(ex);
                if (err->IsSOCKET()) {
                  err->Reset();
                  cl.LinkConnect();
                  continue;
                } else {
                  err->Raise();
                }
              }
              break;
            }
            SendSTART();
            SendI32(RET);

Returns

the result of the check, true or false

Parameters

[in]

exception

the exception object from C++, if MK_NULL the global exception object is used

Macro Definition Documentation

ErrorCC

#define ErrorCC	(		errnum,
			message )

Value:

          MkErrorSetV(hdl,__func__,MK_ERROR,errnum,message)

customized edition of ErrorSetV …

Definition at line 268 of file MkObjectC_cc.hh.

      #define ErrorCC(errnum,message) \
          MkErrorSetV(hdl,__func__,MK_ERROR,errnum,message)

Function Documentation

Check() [1/3]

bool ccmkkernel::MkErrorC::Check ( ) const

inline

check if pointer is still valid

Definition at line 150 of file MkErrorC_cc.hh.

                         {
        return (hdl && MkErrCheck(hdl));
      };

Check() [2/3]

static void ccmkkernel::MkErrorC::Check ( enum MkErrorE err )

inlinestatic

Definition at line 171 of file MkErrorC_cc.hh.

                                                {
      if (MkErrorCheckI(err)) MkExceptionC::Raise(MK_ERROR_DEFAULT_NULL);
    }

Check() [3/3]

static void ccmkkernel::MkErrorC::Check ( MK_MNGN mng, enum MkErrorE err )

inlinestatic

Definition at line 167 of file MkErrorC_cc.hh.

                                                             {
      if (MkErrorCheckI(err)) MkExceptionC::Raise(mng);
    }

FORMAT()

MkErrorC *MK_DECL ccmkkernel::MkErrorC::FORMAT ( MK_OBJ const fmtobj )

inlinestatic

Definition at line 27 of file MkErrorC_inline_cc.hh.

                                                                {
    MK_ERR retVal = MkErrorFORMAT (fmtobj);
    if (retVal == NULL) {
      throw MkConstructorNullExceptionC("MkErrorC::FORMAT");
    }
    MkRtSetup_XN(retVal);
    return MkErrorC::MkErrorC_ObjNew(MK_RT_CALL retVal);
  }

getERR() [1/3]

MK_ERR ccmkkernel::MkErrorC::getERR ( ) const

inline

return the LibMsgqueObject from current MkErrorC instance

Definition at line 82 of file MkErrorC_cc.hh.

                            {
        MK_ERR ret = reinterpret_cast<MK_ERR>(hdl);
        if (unlikely(ret == NULL)) InstHdlIsNullError();
        return ret;
      };

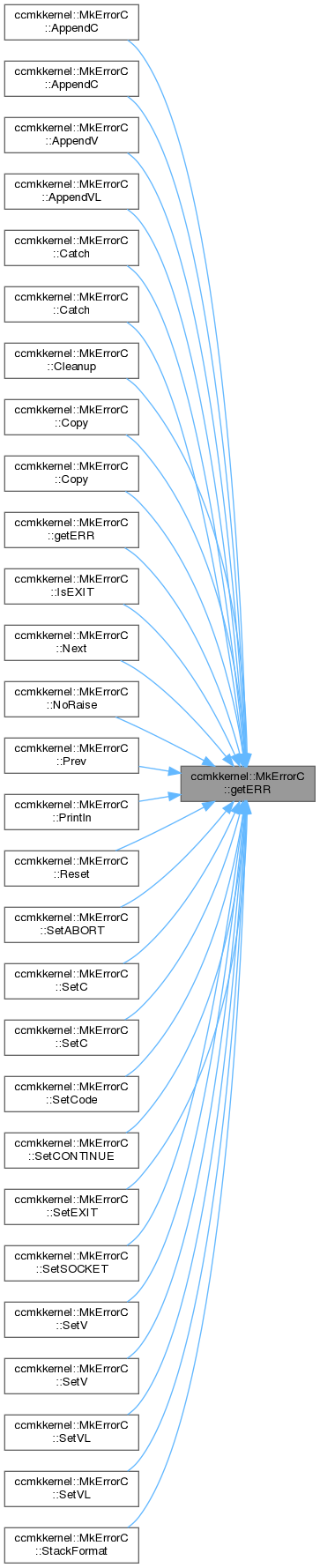

Here is the caller graph for this function:

getERR() [2/3]

static MK_ERR ccmkkernel::MkErrorC::getERR ( const MkErrorC & clsHdl )

inlinestatic

return LibMsgqueObject from current MkErrorC reference

Definition at line 130 of file MkErrorC_cc.hh.

                                                   {
        return clsHdl.getERR();
      };

getERR() [3/3]

static MK_ERR ccmkkernel::MkErrorC::getERR ( MkErrorC * clsHdl )

inlinestatic

return LibMsgqueObject from current MkErrorC pointer

Definition at line 106 of file MkErrorC_cc.hh.

                                             {
        MK_ERR ret = clsHdl ? reinterpret_cast<MK_ERR>(clsHdl->hdl) : NULL;
        if (unlikely(ret == NULL)) ClassHdlIsNullError(MkErrorC);
        return ret;
      };

getERR__null_allow() [1/3]

MK_ERR ccmkkernel::MkErrorC::getERR__null_allow ( ) const

inline

return the LibMsgqueObject from current MkErrorC instance

Definition at line 89 of file MkErrorC_cc.hh.

                                        {
        return reinterpret_cast<MK_ERR>(hdl);
      };

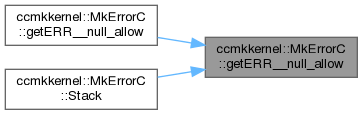

Here is the caller graph for this function:

getERR__null_allow() [2/3]

static MK_ERR ccmkkernel::MkErrorC::getERR__null_allow ( const MkErrorC & clsHdl )

inlinestatic

return LibMsgqueObject from current MkErrorC reference

Definition at line 135 of file MkErrorC_cc.hh.

                                                               {
        return clsHdl.getERR__null_allow();
      };

getERR__null_allow() [3/3]

static MK_ERR ccmkkernel::MkErrorC::getERR__null_allow ( MkErrorC * clsHdl )

inlinestatic

return LibMsgqueObject from current MkErrorC pointer

Definition at line 113 of file MkErrorC_cc.hh.

                                                         {
        return clsHdl ? reinterpret_cast<MK_ERR>(clsHdl->hdl) : NULL;
      };

getERRN() [1/3]

MK_ERRN ccmkkernel::MkErrorC::getERRN ( ) const

inline

(const) return the LibMsgqueObject from current MkErrorC instance

Definition at line 94 of file MkErrorC_cc.hh.

                              {
        MK_ERRN ret = reinterpret_cast<MK_ERRN>(hdl);
        if (unlikely(ret == NULL)) InstHdlIsNullError();
        return ret;
      };

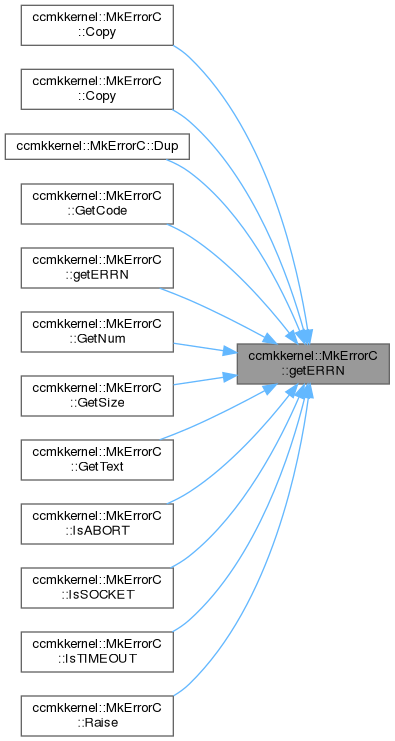

Here is the caller graph for this function:

getERRN() [2/3]

static MK_ERRN ccmkkernel::MkErrorC::getERRN ( const MkErrorC & clsHdl )

inlinestatic

(const) return LibMsgqueObject from current MkErrorC reference

Definition at line 140 of file MkErrorC_cc.hh.

                                                     {
        return clsHdl.getERRN();
      };

getERRN() [3/3]

static MK_ERRN ccmkkernel::MkErrorC::getERRN ( const MkErrorC * clsHdl )

inlinestatic

(const) return LibMsgqueObject from current MkErrorC pointer

Definition at line 118 of file MkErrorC_cc.hh.

                                                     {
        MK_ERRN ret = clsHdl ? reinterpret_cast<MK_ERRN>(clsHdl->hdl) : NULL;
        if (unlikely(ret == NULL)) ClassHdlIsNullError(MkErrorC);
        return ret;
      };

getERRN__null_allow() [1/3]

MK_ERRN ccmkkernel::MkErrorC::getERRN__null_allow ( ) const

inline

(const) return the LibMsgqueObject from current MkErrorC instance

Definition at line 101 of file MkErrorC_cc.hh.

                                          {
        return reinterpret_cast<MK_ERRN>(hdl);
      };

Here is the caller graph for this function:

getERRN__null_allow() [2/3]

static MK_ERRN ccmkkernel::MkErrorC::getERRN__null_allow ( const MkErrorC & clsHdl )

inlinestatic

(const) return LibMsgqueObject from current MkErrorC reference

Definition at line 145 of file MkErrorC_cc.hh.

                                                                 {
        return clsHdl.getERRN__null_allow();
      };

getERRN__null_allow() [3/3]

static MK_ERRN ccmkkernel::MkErrorC::getERRN__null_allow ( const MkErrorC * clsHdl )

inlinestatic

(const) return LibMsgqueObject from current MkErrorC pointer

Definition at line 125 of file MkErrorC_cc.hh.

                                                                 {
        return clsHdl ? reinterpret_cast<MK_ERRN>(clsHdl->hdl) : NULL;
      };

IsEXIT_DEFAULT()

static bool ccmkkernel::MkErrorC::IsEXIT_DEFAULT ( )

inlinestatic

Definition at line 181 of file MkErrorC_cc.hh.

{return MkErrorIsEXIT    (&MkERROR_NULL); }

IsSOCKET_DEFAULT()

static bool ccmkkernel::MkErrorC::IsSOCKET_DEFAULT ( )

inlinestatic

Definition at line 182 of file MkErrorC_cc.hh.

{return MkErrorIsSOCKET  (&MkERROR_NULL); }

MkErrorC() [1/3]

ccmkkernel::MkErrorC::MkErrorC ( const MkErrorC & e )

inline

Definition at line 158 of file MkErrorC_cc.hh.

                                {
      MkErrorC_Init(MkErrorDup_RT(MK_RT_CALL_NULL MkErrN(e.hdl)));
    }

MkErrorC() [2/3]

ccmkkernel::MkErrorC::MkErrorC ( const MkExceptionC & ex )

inline

Definition at line 161 of file MkErrorC_cc.hh.

                                     {
      MkErrorC_Init(MkErrorDup_RT(MK_RT_CALL_NULL MkErrN(ex.hdl)));
    }

MkErrorC() [3/3]

ccmkkernel::MkErrorC::MkErrorC ( MK_ERR hdl )

inline

Definition at line 73 of file MkErrorC_cc.hh.

: MkObjectC(MkErrorC_X2obj(hdl)) {};

MkErrorC_ObjNew()

static MkErrorC * ccmkkernel::MkErrorC::MkErrorC_ObjNew ( MK_RT_ARGS MK_ERR hdl )

inlinestatic

return MkErrorC from LibMsgqueObject

Definition at line 77 of file MkErrorC_cc.hh.

                                                               {
        return (hdl ? static_cast<MkErrorC*>(MkObjectC::atomObjNew(MK_RT_CALL MkErrorC_X2obj(hdl))) : &MK_NULL_REF);
      }

Here is the caller graph for this function:

Variable Documentation

MK_NULL_REF

thread_local MkErrorC ccmkkernel::MkErrorC::MK_NULL_REF = {(MK_OBJ)0}

static

Definition at line 34 of file MkErrorC_cc.hh.
