MkErrorC_Class_C_API

MkErrorC - define the class … More...

Collaboration diagram for MkErrorC_Class_C_API:

Topics
	MkErrorC_Class_Define_C_API
	MkErrorC - low level definition, access and cast …

Typedefs
typedef struct MkErrorS *	libmkkernel::MK_ERR
	class-shortcut for struct MkErrorS *, all shortcut using the XX_YYY syntax (only for public API) …
typedef const struct MkErrorS *	libmkkernel::MK_ERRN
	class-shortcut for const struct MkErrorS *, all const shortcut using the XX_YYYC syntax (only for public API) …
typedef struct MkErrorS	libmkkernel::MK_ERRR
	reference-shortcut for struct MkErrorS, all shortcut using the XX_YYYR syntax (only for public API) …

MkErrorC - Export - inline - interact with an external software
static MK_HDL	libmkkernel::MkErrorHandleGet_RT (MK_RT mkrt, MK_ERR const err)
	Handle-Get-Slot - returns a export-hdl to the MkErrorC useable for external storage
static MK_ERR	libmkkernel::MkErrorHandleResolve_RT (MK_RT mkrt, MK_HDL const netHdl)
	Handle-Resolve-Slot - return a MkErrorC from netHdl or MK_NULL if invalid…
#define	MkErrorHandleResolve_e(netHdl)
	wrapper for MkErrorHandleResolve with error-handline

MkErrorC - Misc - function - unspecified functions to perform different tasks
static MK_ERR	libmkkernel::MkErrorGetNull (void)
	Null-Slot - return a MkErrorC typed NULL instance …

MkErrorC - Introspection - inline - access to all instances created by class starting with the last one
static MK_ERR	libmkkernel::MkErrorInstances_RT (MK_RT mkrt)
	get head-instance from linked-list of MkErrorS type …
static MK_ERR	libmkkernel::MkErrorNext (MK_ERR const err)
	get next instance from linked-list of MkErrorS type
static MK_ERR	libmkkernel::MkErrorPrev (MK_ERR const err)
	get previous instance from linked-list of MkErrorS type

MkErrorC - Export - overload
#define	MkErrorHandleResolve_NULL(...)
#define	MkErrorHandleResolve(...)
#define	MkErrorHandleGet_NULL(...)
#define	MkErrorHandleGet(...)
#define	MkErrorHandleGet_0E()
#define	MkErrorHandleGet_1M(m)

MkErrorC - Introspection - overload
#define	MkErrorNext_0E()
#define	MkErrorNext_1M(m)
#define	MkErrorPrev_0E()
#define	MkErrorPrev_1M(m)
#define	MkErrorInstances_NULL()
#define	MkErrorInstances()

Detailed Description

MkErrorC - define the class …

Macro Definition Documentation

MkErrorHandleGet

#define MkErrorHandleGet

(

...

)

Value:

MkErrorHandleGet_RT(MK_RT_CALL __VA_ARGS__)

Definition at line 952 of file kernel_overload_mk.h.

MkErrorHandleGet_0E

#define MkErrorHandleGet_0E

(

)

Value:

MkErrorHandleGet(&MkERROR)

Definition at line 953 of file kernel_overload_mk.h.

MkErrorHandleGet_1M

#define MkErrorHandleGet_1M

(

m

)

Value:

MkErrorHandleGet(MkErrorFORMAT_1M(m))

Definition at line 954 of file kernel_overload_mk.h.

MkErrorHandleGet_NULL

#define MkErrorHandleGet_NULL

(

...

)

Value:

MkErrorHandleGet_RT(MK_RT_CALL_NULL __VA_ARGS__)

Definition at line 951 of file kernel_overload_mk.h.

MkErrorHandleResolve

#define MkErrorHandleResolve

(

...

)

Value:

MkErrorHandleResolve_RT(MK_RT_CALL __VA_ARGS__)

Definition at line 948 of file kernel_overload_mk.h.

MkErrorHandleResolve_e

#define MkErrorHandleResolve_e

(

netHdl

)

Value:

  ({ \
  MK_HDL tmpHdl=netHdl; \
  MK_ERR tmp; \
  if (tmpHdl==0) { \
    tmp=NULL; \
  } else { \
    tmp=MkErrorHandleResolve(tmpHdl); \
    if (tmp==NULL) { \
      MkErrorSetC_1_NULL("ERROR: 'MkErrorC' handle is 'NULL'"); \
      goto error; \
    }; \
  }; \
  tmp; \
})

wrapper for MkErrorHandleResolve with error-handline

Parameters

[in]

netHdl

The handle previously returned by MkObjectHandleGet.

Returns

Return an valid libmkkernel::MK_ERR or MK_NULL with an error set.

• If netHdl is 0 than MK_NULL is returned and the upper-code decide how to deal with it.
• MkErrorHandleResolve return an valid libmkkernel::MK_ERR or MK_NULL if the netHdl is invalid or the underlying object has already been deleted.
  • If a MK_NULL is returned than an error-message is created and a jump to the label error is done.
  • If a libmkkernel::MK_ERR is returned than the netHdl is valid.

Definition at line 9934 of file LibMkKernel_mk.h.


__parser__pop__;

// Class export & import

  __parser__(flags=new,doc-group=_ignore_,doc-index=Class,doc-name=Misc,class=MkErrorC,null-return-allow)
  MK_ATTR_STATIC
  mk_inline MK_ERR MkErrorGetNull ( void ) {
    return (MK_ERR)MK_NULL;
  }

MkErrorHandleResolve_NULL

#define MkErrorHandleResolve_NULL

(

...

)

Value:

MkErrorHandleResolve_RT(MK_RT_CALL_NULL __VA_ARGS__)

Definition at line 947 of file kernel_overload_mk.h.

MkErrorInstances

#define MkErrorInstances

(

)

Value:

MkErrorInstances_RT(MK_RT_CALL_ONLY)

Definition at line 971 of file kernel_overload_mk.h.

MkErrorInstances_NULL

#define MkErrorInstances_NULL

(

)

Value:

MkErrorInstances_RT(MK_RT_CALL_NULL_ONLY)

Definition at line 970 of file kernel_overload_mk.h.

MkErrorNext_0E

#define MkErrorNext_0E

(

)

Value:

MkErrorNext(&MkERROR)

Definition at line 964 of file kernel_overload_mk.h.

MkErrorNext_1M

#define MkErrorNext_1M

(

m

)

Value:

MkErrorNext(MkErrorFORMAT_1M(m))

Definition at line 965 of file kernel_overload_mk.h.

MkErrorPrev_0E

#define MkErrorPrev_0E

(

)

Value:

MkErrorPrev(&MkERROR)

Definition at line 966 of file kernel_overload_mk.h.

MkErrorPrev_1M

#define MkErrorPrev_1M

(

m

)

Value:

MkErrorPrev(MkErrorFORMAT_1M(m))

Definition at line 967 of file kernel_overload_mk.h.

Typedef Documentation

MK_ERR

typedef struct MkErrorS* libmkkernel::MK_ERR

class-shortcut for struct MkErrorS *, all shortcut using the XX_YYY syntax (only for public API) …

Definition at line 1576 of file LibMkKernel_mk.h.

MK_ERRN

typedef const struct MkErrorS* libmkkernel::MK_ERRN

class-shortcut for const struct MkErrorS *, all const shortcut using the XX_YYYC syntax (only for public API) …

Definition at line 1579 of file LibMkKernel_mk.h.

MK_ERRR

typedef struct MkErrorS libmkkernel::MK_ERRR

reference-shortcut for struct MkErrorS, all shortcut using the XX_YYYR syntax (only for public API) …

Definition at line 1582 of file LibMkKernel_mk.h.

Function Documentation

MkErrorGetNull()

static MK_ERR libmkkernel::MkErrorGetNull ( void )

inlinestatic

Null-Slot - return a MkErrorC typed NULL instance …

Definition at line 9959 of file LibMkKernel_mk.h.

Here is the caller graph for this function:

MkErrorHandleGet_RT()

static MK_HDL libmkkernel::MkErrorHandleGet_RT ( MK_RT mkrt, MK_ERR const err )

inlinestatic

Handle-Get-Slot - returns a export-hdl to the MkErrorC useable for external storage

The export-hdl is a reference to an instance that can be stored in software and converted back into an instance using the MkErrorHandleResolve.

By default, the export-hdl is initialized to "0", which is equivalent to does not exist. This function returns a non-zero and unique export-hdl that is recreated if necessary.

The export-hdl is only valid until the Programming-Language-Micro-Kernel (PLMK) ends.

example: The export-hdl is used in rpc to identify an object across the network.

Parameters

[in]	mkrt	the MkRuntimeS instance to work on - the runtime argument, used by MK_RT_CALL (C-only)
[in]	err	the MkErrorS instance to work on - the default-error is automatically created on startup. (NULL allowed)

Returns

the required export-hdl

Definition at line 9901 of file LibMkKernel_mk.h.

MkErrorHandleResolve_RT()

static MK_ERR libmkkernel::MkErrorHandleResolve_RT ( MK_RT mkrt, MK_HDL const netHdl )

inlinestatic

Handle-Resolve-Slot - return a MkErrorC from netHdl or MK_NULL if invalid…

The MkErrorHandleResolve undo the MkErrorHandleGet and is intended to export a unique identifer into external code not belonging to the Programming-Language-Micro-Kernel (PLMK).

Parameters

[in]	mkrt	the MkRuntimeS instance to work on - the runtime argument, used by MK_RT_CALL (C-only)
[in]	netHdl	handle former exported with MkErrorHandleGet

Returns

the required handle or MK_NULL if netHdl is invalid

Definition at line 9918 of file LibMkKernel_mk.h.

                                        { \
  MK_HDL tmpHdl=netHdl; \
  MK_ERR tmp; \
  if (tmpHdl==0) { \

MkErrorInstances_RT()

static MK_ERR libmkkernel::MkErrorInstances_RT ( MK_RT mkrt )

inlinestatic

get head-instance from linked-list of MkErrorS type …

The head-instance is the last instance created.

Definition at line 13301 of file LibMkKernel_mk.h.

                                               {
  MK_INSTANCE_HDL(err);
  return (MK_ERR)MkErrorC_X2obj(err)->obj_protect.prev;
}

MkErrorNext()

static MK_ERR libmkkernel::MkErrorNext ( MK_ERR const err )

inlinestatic

get next instance from linked-list of MkErrorS type

Definition at line 13308 of file LibMkKernel_mk.h.

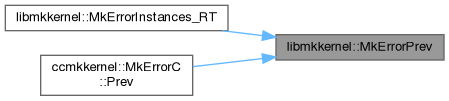

Here is the caller graph for this function:

MkErrorPrev()

static MK_ERR libmkkernel::MkErrorPrev ( MK_ERR const err )

inlinestatic

get previous instance from linked-list of MkErrorS type

Definition at line 13315 of file LibMkKernel_mk.h.

Here is the caller graph for this function:
