Sq3BlobC - define the class … More...

Collaboration diagram for Sq3BlobC_Class_C_API:

Topics
	Sq3BlobC_Class_Define_C_API
	Sq3BlobC - low level definition, access and cast …

Macros
#define	Sq3GetBlobFromNat(_nat)
	helper for Sq3BlobC_ObjNew …

Typedefs
typedef struct Sq3BlobS *	SQ3_BLOB
	class-shortcut for `struct Sq3BlobS *`, all shortcut using the `XX_YYY` syntax (only for public API) …

typedef const struct Sq3BlobS *	SQ3_BLOBN
	class-shortcut for `const struct Sq3BlobS `, all const* shortcut using the `XX_YYYC` syntax (only for public API) …

typedef struct Sq3BlobS	SQ3_BLOBR
	reference-shortcut for `struct Sq3BlobS`, all shortcut using the `XX_YYYR` syntax (only for public API) …

Sq3BlobC - Export - inline - interact with an external software
static MK_ARTIFICIAL SQ3_BLOB	Sq3BlobC_ObjNew (sqlite3_blob *hdl)
	return Programming-Language-Micro-Kernel (PLMK) instance from native *hdl* …

static SQ3_BLOB	Sq3BlobC_ObjCreate (sqlite3_blob *hdl)
	return Programming-Language-Micro-Kernel (PLMK) instance from native *hdl* …

static MK_HDL	Sq3BlobHandleGet_RT (MK_RT mkrt, SQ3_BLOB const blob)
	Handle-Get-Slot - returns a *export-hdl* to the Sq3BlobC useable for external storage

static SQ3_BLOB	Sq3BlobHandleResolve_RT (MK_RT mkrt, MK_HDL const netHdl)
	Handle-Resolve-Slot - return a Sq3BlobC from *netHdl* or null if invalid…

#define	Sq3BlobHandleResolve_e(netHdl)
	wrapper for Sq3BlobHandleResolve with error-handline

Sq3BlobC - Misc - function - unspecified functions to perform different tasks
static SQ3_BLOB	Sq3BlobGetNull (void)
	Null-Slot - return a Sq3BlobC typed `NULL` instance …

Sq3BlobC - Introspection - inline - access to all instances created by class starting with the last one
static SQ3_BLOB	Sq3BlobInstances_RT (MK_RT mkrt)
	get head-instance from linked-list of Sq3BlobS type …

static SQ3_BLOB	Sq3BlobNext (SQ3_BLOB const blob)
	get next instance from linked-list of Sq3BlobS type

static SQ3_BLOB	Sq3BlobPrev (SQ3_BLOB const blob)
	get previous instance from linked-list of Sq3BlobS type

Sq3BlobC - Export - function
SQ3_BLOB	Sq3BlobHandleResolveP (MK_RT mkrt, MK_HDL const netHdl)
	Non-inline replacement for Sq3BlobHandleResolve …

MK_HDL	Sq3BlobHandleGetP (MK_RT mkrt, SQ3_BLOB const blob)
	Non-inline replacement for Sq3BlobHandleGet …

Sq3BlobC - Introspection - function
SQ3_BLOB	Sq3BlobNextP (SQ3_BLOB const blob)
	Non-inline replacement for Sq3BlobNext …

SQ3_BLOB	Sq3BlobPrevP (SQ3_BLOB const blob)
	Non-inline replacement for Sq3BlobPrev …

SQ3_BLOB	Sq3BlobInstancesP (MK_RT mkrt)
	Non-inline replacement for Sq3BlobInstances …

Sq3BlobC - Misc - function
SQ3_BLOB	Sq3BlobGetNullP (void)
	Non-inline replacement for Sq3BlobGetNull …

Sq3BlobC - Export - overload
#define	Sq3BlobHandleResolve_NULL(...)

#define	Sq3BlobHandleResolve(...)

#define	Sq3BlobHandleGet_NULL(...)

#define	Sq3BlobHandleGet(...)

Sq3BlobC - Introspection - overload
#define	Sq3BlobInstances_NULL()

#define	Sq3BlobInstances()

Detailed Description

Sq3BlobC - define the class …

Macro Definition Documentation

◆ Sq3BlobHandleGet

#define Sq3BlobHandleGet ( ... )

Value:

Sq3BlobHandleGet_RT(MK_RT_CALL __VA_ARGS__)

MK_RT_CALL

#define MK_RT_CALL

Sq3BlobHandleGet_RT

static MK_HDL Sq3BlobHandleGet_RT(MK_RT mkrt, SQ3_BLOB const blob)

Handle-Get-Slot - returns a export-hdl to the Sq3BlobC useable for external storage

Definition Sq3BlobC_def_sq3.h:232

Definition at line 28 of file sqlite3_overload_sq3.h.

◆ Sq3BlobHandleGet_NULL

#define Sq3BlobHandleGet_NULL ( ... )

Value:

Sq3BlobHandleGet_RT(MK_RT_CALL_NULL __VA_ARGS__)

MK_RT_CALL_NULL

#define MK_RT_CALL_NULL

Definition at line 27 of file sqlite3_overload_sq3.h.

◆ Sq3BlobHandleResolve

#define Sq3BlobHandleResolve ( ... )

Value:

Sq3BlobHandleResolve_RT(MK_RT_CALL __VA_ARGS__)

Sq3BlobHandleResolve_RT

static SQ3_BLOB Sq3BlobHandleResolve_RT(MK_RT mkrt, MK_HDL const netHdl)

Handle-Resolve-Slot - return a Sq3BlobC from netHdl or null if invalid…

Definition Sq3BlobC_def_sq3.h:249

Definition at line 24 of file sqlite3_overload_sq3.h.

◆ Sq3BlobHandleResolve_e

#define Sq3BlobHandleResolve_e ( netHdl )

Value:

  ({ \
  MK_HDL tmpHdl=netHdl; \
  SQ3_BLOB tmp; \
  if (tmpHdl==0) { \
    tmp=NULL; \
  } else { \
    tmp=Sq3BlobHandleResolve(tmpHdl); \
    if (tmp==NULL) { \
      MkErrorSetC_1_NULL("ERROR: 'Sq3BlobC' handle is 'NULL'"); \
      goto error; \
    }; \
  }; \
  tmp; \
})

wrapper for Sq3BlobHandleResolve with error-handline

Parameters

[in] netHdl The handle previously returned by MkObjectHandleGet.

Returns: Return an valid SQ3_BLOB or null with an error set.

If netHdl is 0 than null is returned and the upper-code decide how to deal with it.
Sq3BlobHandleResolve return an valid SQ3_BLOB or null if the netHdl is invalid or the underlying object has already been deleted.
- If a null is returned than an error-message is created and a jump to the label error is done.
- If a SQ3_BLOB is returned than the netHdl is valid.

Definition at line 265 of file Sq3BlobC_def_sq3.h.

#define Sq3BlobHandleResolve_e(netHdl) ({ \
  MK_HDL tmpHdl=netHdl; \
  SQ3_BLOB tmp; \
  if (tmpHdl==0) { \
    tmp=NULL; \
  } else { \
    tmp=Sq3BlobHandleResolve(tmpHdl); \
    if (tmp==NULL) { \
      MkErrorSetC_1_NULL("ERROR: 'Sq3BlobC' handle is 'NULL'"); \
      goto error; \
    }; \
  }; \
  tmp; \
})

◆ Sq3BlobHandleResolve_NULL

#define Sq3BlobHandleResolve_NULL ( ... )

Value:

Sq3BlobHandleResolve_RT(MK_RT_CALL_NULL __VA_ARGS__)

Definition at line 23 of file sqlite3_overload_sq3.h.

◆ Sq3BlobInstances

#define Sq3BlobInstances ( )

Value:

Sq3BlobInstances_RT(MK_RT_CALL_ONLY)

MK_RT_CALL_ONLY

#define MK_RT_CALL_ONLY

Sq3BlobInstances_RT

static SQ3_BLOB Sq3BlobInstances_RT(MK_RT mkrt)

get head-instance from linked-list of Sq3BlobS type …

Definition Sq3BlobC_def_sq3.h:314

Definition at line 39 of file sqlite3_overload_sq3.h.

◆ Sq3BlobInstances_NULL

#define Sq3BlobInstances_NULL ( )

Value:

Sq3BlobInstances_RT(MK_RT_CALL_NULL_ONLY)

MK_RT_CALL_NULL_ONLY

#define MK_RT_CALL_NULL_ONLY

Definition at line 38 of file sqlite3_overload_sq3.h.

◆ Sq3GetBlobFromNat

#define Sq3GetBlobFromNat ( _nat )

Value:

SQ3_SET_T(Sq3BlobC,some_api__hook,_nat)

SQ3_SET_T

#define SQ3_SET_T(_cls, _hook, _nat)

Definition LibSq3Lite_sq3.h:337

helper for Sq3BlobC_ObjNew …

Definition at line 187 of file Sq3BlobC_def_sq3.h.

Typedef Documentation

◆ SQ3_BLOB

typedef struct Sq3BlobS* SQ3_BLOB

class-shortcut for struct Sq3BlobS *, all shortcut using the XX_YYY syntax (only for public API) …

Definition at line 379 of file LibSq3Lite_sq3.h.

◆ SQ3_BLOBN

typedef const struct Sq3BlobS* SQ3_BLOBN

class-shortcut for const struct Sq3BlobS *, all const shortcut using the XX_YYYC syntax (only for public API) …

Definition at line 382 of file LibSq3Lite_sq3.h.

◆ SQ3_BLOBR

typedef struct Sq3BlobS SQ3_BLOBR

reference-shortcut for struct Sq3BlobS, all shortcut using the XX_YYYR syntax (only for public API) …

Definition at line 385 of file LibSq3Lite_sq3.h.

Function Documentation

◆ Sq3BlobC_ObjCreate()

static SQ3_BLOB Sq3BlobC_ObjCreate ( sqlite3_blob * hdl )

inlinestatic

return Programming-Language-Micro-Kernel (PLMK) instance from native hdl …

Definition at line 210 of file Sq3BlobC_def_sq3.h.

                                                                                          {
  MkRtSetup_NULL;
  return Sq3GetBlobFromNat(hdl);
}

Here is the caller graph for this function:

◆ Sq3BlobC_ObjNew()

static MK_ARTIFICIAL SQ3_BLOB Sq3BlobC_ObjNew ( sqlite3_blob * hdl )

inlinestatic

return Programming-Language-Micro-Kernel (PLMK) instance from native hdl …

Definition at line 203 of file Sq3BlobC_def_sq3.h.

                                                                                       {
  MkRtSetup_NULL;
  return Sq3GetBlobFromNat(hdl);
}

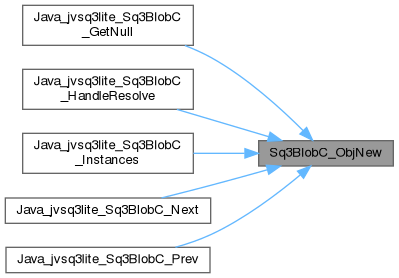

Here is the caller graph for this function:

◆ Sq3BlobGetNull()

static SQ3_BLOB Sq3BlobGetNull ( void )

inlinestatic

Null-Slot - return a Sq3BlobC typed NULL instance …

Definition at line 290 of file Sq3BlobC_def_sq3.h.

                                             {
    return (SQ3_BLOB)MK_NULL;
  }

Here is the caller graph for this function:

◆ Sq3BlobGetNullP()

SQ3_BLOB Sq3BlobGetNullP ( void )

Non-inline replacement for Sq3BlobGetNull …

◆ Sq3BlobHandleGet_RT()

static MK_HDL Sq3BlobHandleGet_RT	(	MK_RT	mkrt,
		SQ3_BLOB const	blob )

inlinestatic

Handle-Get-Slot - returns a export-hdl to the Sq3BlobC useable for external storage

The export-hdl is a reference to an instance that can be stored in software and converted back into an instance using the Sq3BlobHandleResolve.

By default, the export-hdl is initialized to "0", which is equivalent to does not exist. This function returns a non-zero and unique export-hdl that is recreated if necessary.

The export-hdl is only valid until the Programming-Language-Micro-Kernel (PLMK) ends.

example: The export-hdl is used in rpc to identify an object across the network.

Parameters

[in]	mkrt	the MkRuntimeS instance to work on - the runtime argument, used by MK_RT_CALL (C-only)
[in]	blob	Programming-Language-Micro-Kernel (PLMK) instance from sqlite3_blob

Returns: the required export-hdl

Definition at line 232 of file Sq3BlobC_def_sq3.h.

  {
  return MkObjectHandleGet(blob?MkOBJ(blob):NULL);
}

◆ Sq3BlobHandleGetP()

MK_HDL Sq3BlobHandleGetP	(	MK_RT	mkrt,
		SQ3_BLOB const	blob )

Non-inline replacement for Sq3BlobHandleGet …

◆ Sq3BlobHandleResolve_RT()

static SQ3_BLOB Sq3BlobHandleResolve_RT	(	MK_RT	mkrt,
		MK_HDL const	netHdl )

inlinestatic

Handle-Resolve-Slot - return a Sq3BlobC from netHdl or null if invalid…

The Sq3BlobHandleResolve undo the Sq3BlobHandleGet and is intended to export a unique identifer into external code not belonging to the Programming-Language-Micro-Kernel (PLMK).

Parameters

[in]	mkrt	the MkRuntimeS instance to work on - the runtime argument, used by MK_RT_CALL (C-only)
[in]	netHdl	handle former exported with Sq3BlobHandleGet

Returns: the required handle or null if netHdl is invalid

Definition at line 249 of file Sq3BlobC_def_sq3.h.

  {
  return Sq3Blob(MkObjectHandleResolve(netHdl));
}

◆ Sq3BlobHandleResolveP()

SQ3_BLOB Sq3BlobHandleResolveP	(	MK_RT	mkrt,
		MK_HDL const	netHdl )

Non-inline replacement for Sq3BlobHandleResolve …

◆ Sq3BlobInstances_RT()

static SQ3_BLOB Sq3BlobInstances_RT ( MK_RT mkrt )

inlinestatic

get head-instance from linked-list of Sq3BlobS type …

The head-instance is the last instance created.

Definition at line 314 of file Sq3BlobC_def_sq3.h.

                                                            {
  SQ3_STATIC_RT;
  return (SQ3_BLOB)MkTypeInstances(Sq3BlobC_TT);
}

◆ Sq3BlobInstancesP()

SQ3_BLOB Sq3BlobInstancesP ( MK_RT mkrt )

Non-inline replacement for Sq3BlobInstances …

◆ Sq3BlobNext()

static SQ3_BLOB Sq3BlobNext ( SQ3_BLOB const blob )

inlinestatic

get next instance from linked-list of Sq3BlobS type

Definition at line 321 of file Sq3BlobC_def_sq3.h.

                                                    {
  MK_INSTANCE_HDL(blob);
  return (SQ3_BLOB)Sq3BlobC_X2obj(blob)->obj_protect.next;
}

Here is the caller graph for this function:

◆ Sq3BlobNextP()

SQ3_BLOB Sq3BlobNextP ( SQ3_BLOB const blob )

Non-inline replacement for Sq3BlobNext …

◆ Sq3BlobPrev()

static SQ3_BLOB Sq3BlobPrev ( SQ3_BLOB const blob )

inlinestatic

get previous instance from linked-list of Sq3BlobS type

Definition at line 328 of file Sq3BlobC_def_sq3.h.

                                                    {
  MK_INSTANCE_HDL(blob);
  return (SQ3_BLOB)Sq3BlobC_X2obj(blob)->obj_protect.prev;
}

Here is the caller graph for this function:

◆ Sq3BlobPrevP()

SQ3_BLOB Sq3BlobPrevP ( SQ3_BLOB const blob )

Non-inline replacement for Sq3BlobPrev …

Topics

Macros

Typedefs

Sq3BlobC - Export - inline - interact with an external software

Sq3BlobC - Misc - function - unspecified functions to perform different tasks

Sq3BlobC - Introspection - inline - access to all instances created by class starting with the last one

Sq3BlobC - Export - function

Sq3BlobC - Introspection - function

Sq3BlobC - Misc - function

Sq3BlobC - Export - overload

Sq3BlobC - Introspection - overload

Detailed Description

Macro Definition Documentation

◆ Sq3BlobHandleGet

◆ Sq3BlobHandleGet_NULL

◆ Sq3BlobHandleResolve

◆ Sq3BlobHandleResolve_e

◆ Sq3BlobHandleResolve_NULL

◆ Sq3BlobInstances

◆ Sq3BlobInstances_NULL

◆ Sq3GetBlobFromNat

Typedef Documentation

◆ SQ3_BLOB

◆ SQ3_BLOBN

◆ SQ3_BLOBR

Function Documentation

◆ Sq3BlobC_ObjCreate()

◆ Sq3BlobC_ObjNew()

◆ Sq3BlobGetNull()

◆ Sq3BlobGetNullP()

◆ Sq3BlobHandleGet_RT()

◆ Sq3BlobHandleGetP()

◆ Sq3BlobHandleResolve_RT()

◆ Sq3BlobHandleResolveP()

◆ Sq3BlobInstances_RT()

◆ Sq3BlobInstancesP()

◆ Sq3BlobNext()

◆ Sq3BlobNextP()

◆ Sq3BlobPrev()

◆ Sq3BlobPrevP()
