Sq3FileC_def_sq3.h File Reference

#include "LibSq3Lite_sq3.h"

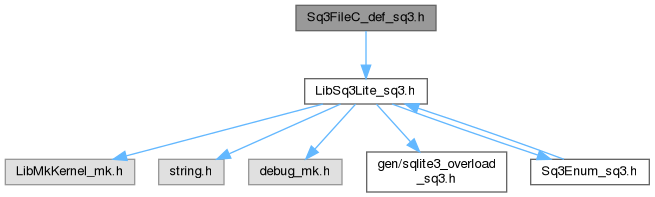

Include dependency graph for Sq3FileC_def_sq3.h:

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Classes
struct	libsq3lite::Sq3FileS
	Struct to represent the data of the Sq3FileC … More...

Namespaces
namespace	libsq3lite

Macros
#define	Sq3GetFileFromNat(_nat)
	helper for libsq3lite::Sq3FileC_ObjNew …
Sq3FileC - signature define
#define	Sq3FileC_SIGNATURE   (MkObjectC_SIGNATURE ^ (21u<<10))
#define	Sq3FileC_MASK   (((1u<<22)-1)<<10)
Sq3FileC - cast to superclass
#define	Sq3FileC_X2file(x)
#define	Sq3FileC_X2obj(x)

Functions
Sq3FileC - Misc - function - unspecified functions to perform different tasks
static SQ3_FILE	libsq3lite::Sq3FileGetNull (void)
	Null-Slot - return a Sq3FileC typed NULL instance …
Sq3FileC - Introspection - inline - access to all instances created by class starting with the last one
static SQ3_FILE	libsq3lite::Sq3FileInstances_RT (MK_RT mkrt)
	get head-instance from linked-list of Sq3FileS type …
static SQ3_FILE	libsq3lite::Sq3FileNext (SQ3_FILE const file)
	get next instance from linked-list of Sq3FileS type
static SQ3_FILE	libsq3lite::Sq3FilePrev (SQ3_FILE const file)
	get previous instance from linked-list of Sq3FileS type

Sq3FileC - type definition
#define	Sq3FileC_T   ( (struct MkTypeDefS *) (Sq3FileC_TT) )
	class as MkTypeDefS-class-type (cast from Sq3FileC_TT into MkTypeS) …
#define	Sq3FileST   Sq3FileC_T
	instance-type as MkTypeDefS-class-type …
#define	Sq3FileSTT   (MkTYP(Sq3FileST))
	instance-type as MkTypeS-class-type (cast from Sq3FileST into MkTypeS) …
#define	Sq3FileC_type   SQ3_FILE
	same as Sq3FileS but useable in a class-macro as: class##_type …
#define	Sq3FileCT_X(instance)
	cast from an instance into the MkTypeDefS-class-type …
#define	Sq3FileCTT_X(instance)
	cast from an instance into the MkTypeS-class-type …
#define	Sq3FileCT_TT(typ)
	cast from an MkTypeS-class-type into an MkTypeDefS-class-type …
#define	Sq3FileC_NS   SQ3
	map class to namespace …
#define	Sq3FileCTT   Sq3FileCTT
	class as MkTypeS-class-type for Sq3FileC in the Target-Programming-Language (TPL) …
#define	Sq3FileCT   ( (struct MkTypeDefS *) Sq3FileCTT )
	class as MkTypeDefS-class-type for Sq3FileC in the Target-Programming-Language (TPL) …
typedef struct Sq3FileS	libsq3lite::Sq3FileCR
	instance-struct-reference same as struct Sq3FileS, useable in a class-macro as: class##R …
typedef const struct Sq3FileS	libsq3lite::Sq3FileCNR
	const instance-struct-reference same as const struct Sq3FileS, useable in a class-macro as: class##R …
__thread MK_TYP	libsq3lite::Sq3FileC_TT
	class as MkTypeDefS-class-type …

Sq3FileC - signature check
#define	Sq3FileC_Check(mng)
static bool	libsq3lite::Sq3FileCheck (MK_MNGN mng)
	check Sq3FileS -> libmkkernel::MkObjectS::signature …
static bool	libsq3lite::Sq3FileCheckO (MK_OBJN obj)
	check Sq3FileS -> libmkkernel::MkObjectS::signature …

Sq3FileC - cast from a defined or a undefined instance
#define	Sq3FileRaise(_file)
	raise an error if class-instance is not valid
#define	Sq3FILE_R(x)
	cast a known-object into an Sq3FileS reference
#define	Sq3FILE(x)
	cast a known-object into an Sq3FileS pointer
static SQ3_FILE	libsq3lite::Sq3File (MK_MNG mng)
	cast a unknown-object into an Sq3FileS pointer or NULL if not possible
static SQ3_FILEN	libsq3lite::Sq3FileN (MK_MNGN mng)
	(const) cast a unknown-object into an Sq3FileS pointer or NULL if not possible

Sq3FileC - Export - inline - interact with an external software
#define	Sq3FileHandleResolve_e(netHdl)
	wrapper for Sq3FileHandleResolve with error-handline
static MK_ARTIFICIAL SQ3_FILE	libsq3lite::Sq3FileC_ObjNew (sqlite3_file *hdl)
	return Programming-Language-Micro-Kernel (PLMK) instance from native hdl …
static SQ3_FILE	libsq3lite::Sq3FileC_ObjCreate (sqlite3_file *hdl)
	return Programming-Language-Micro-Kernel (PLMK) instance from native hdl …
static MK_HDL	libsq3lite::Sq3FileHandleGet_RT (MK_RT mkrt, SQ3_FILE const file)
	Handle-Get-Slot - returns a export-hdl to the Sq3FileC useable for external storage
static SQ3_FILE	libsq3lite::Sq3FileHandleResolve_RT (MK_RT mkrt, MK_HDL const netHdl)
	Handle-Resolve-Slot - return a Sq3FileC from netHdl or MK_NULL if invalid…
