MqTypeCtxS - the instance-base for the MqContextC … More...

#include <LibMqMsgque_mq.h>

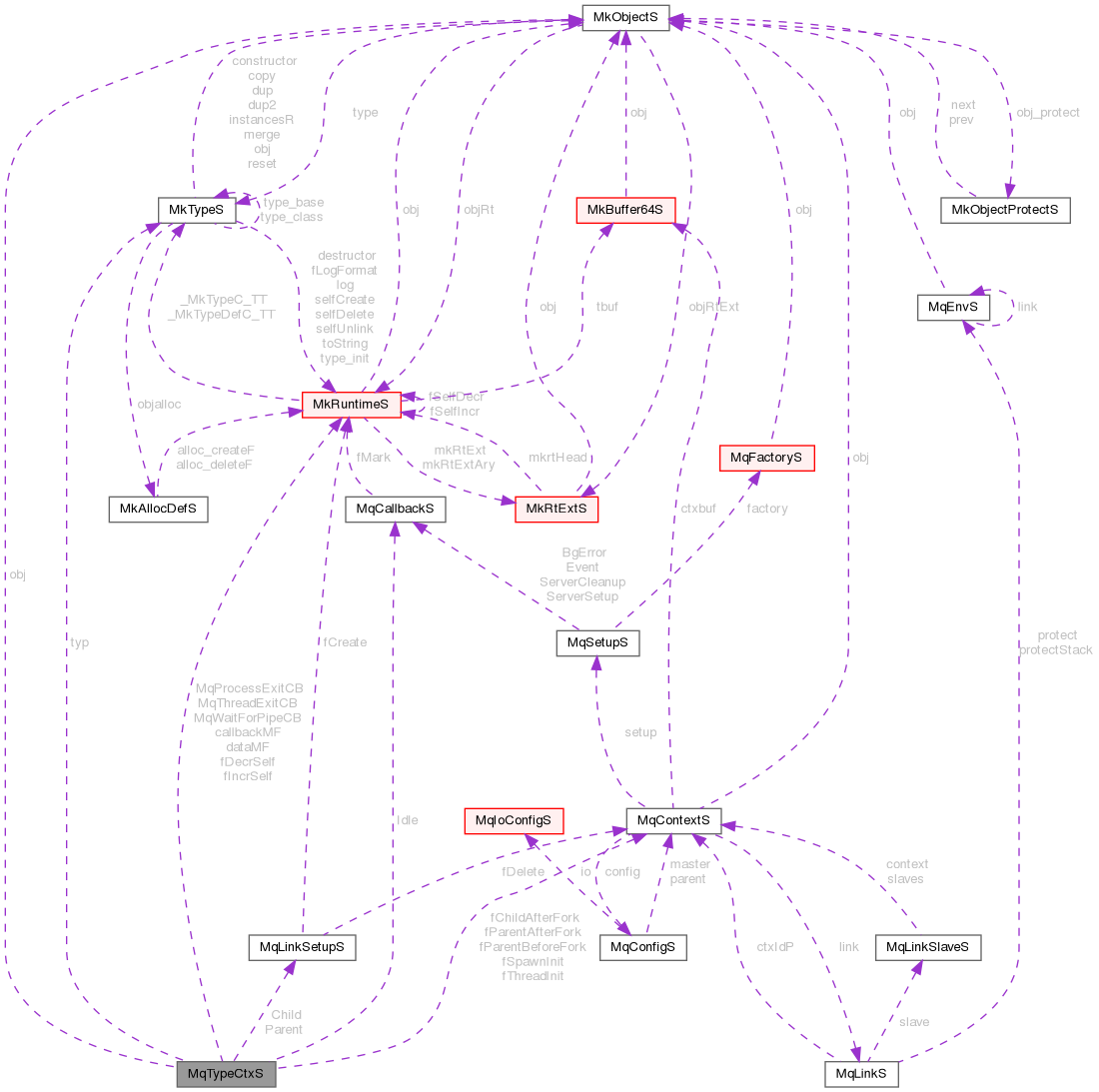

Collaboration diagram for MqTypeCtxS:

Public Attributes
union {

struct MkObjectS obj

struct MkTypeS typ

}	super

bool	argvFix
	add first argument in MkBufferListC argument to MqLinkCreate and MqLinkCreateChild

bool	ignoreThread
	do not allow the usage of threads

bool	ignoreSpawn
	do not allow the usage of spawn

bool	ignoreFork
	do not allow the usage of fork

MqRefCountF	fIncrSelf
	increment the MqContextS::obj->self reference counting

MqRefCountF	fDecrSelf
	decrement the MqContextS::obj->self reference counting

MqSetupF	fParentBeforeFork
	setup and initialize a fork-process before a new fork-process is created by csmqmsgque

MqSetupF	fParentAfterFork
	cleanup a parent fork-process after a new fork-process is created by csmqmsgque

MqSetupF	fChildAfterFork
	cleanup a child fork-process after a new fork-process is created by csmqmsgque

MqExitF	MqProcessExitCB
	exit/cleanup a process

MqExitF	MqThreadExitCB
	exit/cleanup a thread

MqWaitForPipeF	MqWaitForPipeCB
	wait for pipe target to finish

struct MqLinkSetupS	Child
	setup/cleanup a CHILD object

struct MqLinkSetupS	Parent
	setup/cleanup a PARENT object

struct MqCallbackS	Idle
	Create a link to the calling tool idle-event-handling …

MkMarkF	dataMF
	Mark the data-pointer.

MkMarkF	callbackMF
	Mark the callback-data-pointer.

MqHelpF	fHelp
	Create a link to the calling tool help function.

MqSetupF	fThreadInit
	setup and initialize a thread before a new thread is created by csmqmsgque

MqSetupF	fSpawnInit
	setup and initialize a spawn-process before a new spawn-process is created by csmqmsgque

bool	ignoreDisasterSetup
	do not setup the disaster-handler at startup.

Detailed Description

MqTypeCtxS - the instance-base for the MqContextC …

The MqTypeCtxS is the instance-base for the MqContextC and has all attributes shared with all MqContextC instances.

Definition at line 3772 of file LibMqMsgque_mq.h.

Member Data Documentation

◆ argvFix

bool MqTypeCtxS::argvFix

add first argument in MkBufferListC argument to MqLinkCreate and MqLinkCreateChild

On C, the startup arguments are available as argc and argv arguments of the main procedure. The first argument (argv[0]) has the executable name. Other programming languages like TCL or CSharp does NOT provide the executable name as first argument of the main argv. If argsFix is set to true this will be fixed. Default is false.

See also: MqLinkCreate MqLinkCreateChild

Definition at line 3791 of file LibMqMsgque_mq.h.

◆ callbackMF

MkMarkF MqTypeCtxS::callbackMF

Mark the callback-data-pointer.

Definition at line 3858 of file LibMqMsgque_mq.h.

◆ Child

struct MqLinkSetupS MqTypeCtxS::Child

setup/cleanup a CHILD object

Attention

Always call this functions using MqLinkCreate and MqLinkDelete.
A child is a parent with MqConfigS::parent != NULL.

Definition at line 3834 of file LibMqMsgque_mq.h.

◆ dataMF

MkMarkF MqTypeCtxS::dataMF

Mark the data-pointer.

Definition at line 3855 of file LibMqMsgque_mq.h.

◆ fChildAfterFork

MqSetupF MqTypeCtxS::fChildAfterFork

cleanup a child fork-process after a new fork-process is created by csmqmsgque

Definition at line 3819 of file LibMqMsgque_mq.h.

◆ fDecrSelf

MqRefCountF MqTypeCtxS::fDecrSelf

decrement the MqContextS::obj->self reference counting

"Embedding" csmqmsgque into an other language create TWO views on the same ctx … an other-language-view and an c-api-view. The MqContextS::obj->self is the connection c-api -> other-lng and the other-lng has something equal. Usually the other-lng using MqContextS->MkObjectS::refCount++ and MqContextS->MkObjectS::refCount– to bind the c-api-view to the other-language-view. For the special purpose of "embedding" a slave into a master*… as example… the *slave is entirely controlled by the master and the MqContextS::obj->self have to be protected*… this protection is done with *other-lng-refCount-protection

Definition at line 3810 of file LibMqMsgque_mq.h.

◆ fHelp

MqHelpF MqTypeCtxS::fHelp

Create a link to the calling tool help function.

type	default	option	application	context
POINTER	NULL	NO	server/client	parent

As a service to the programmer the csmqmsgque startup code in MqLinkCreate checks for the both options -h and --help to provide a tool-specific help-page and exit.

Definition at line 3868 of file LibMqMsgque_mq.h.

◆ fIncrSelf

MqRefCountF MqTypeCtxS::fIncrSelf

increment the MqContextS::obj->self reference counting

"Embedding" csmqmsgque into an other language create TWO views on the same ctx … an other-language-view and an c-api-view. The MqContextS::obj->self is the connection c-api -> other-lng and the other-lng has something equal. Usually the other-lng using MqContextS->MkObjectS::refCount++ and MqContextS->MkObjectS::refCount– to bind the c-api-view to the other-language-view. For the special purpose of "embedding" a slave into a master*… as example… the *slave is entirely controlled by the master and the MqContextS::obj->self have to be protected*… this protection is done with *other-lng-refCount-protection

Definition at line 3805 of file LibMqMsgque_mq.h.

◆ fParentAfterFork

MqSetupF MqTypeCtxS::fParentAfterFork

cleanup a parent fork-process after a new fork-process is created by csmqmsgque

Definition at line 3816 of file LibMqMsgque_mq.h.

◆ fParentBeforeFork

MqSetupF MqTypeCtxS::fParentBeforeFork

setup and initialize a fork-process before a new fork-process is created by csmqmsgque

Definition at line 3813 of file LibMqMsgque_mq.h.

◆ fSpawnInit

MqSetupF MqTypeCtxS::fSpawnInit

setup and initialize a spawn-process before a new spawn-process is created by csmqmsgque

Definition at line 3874 of file LibMqMsgque_mq.h.

◆ fThreadInit

MqSetupF MqTypeCtxS::fThreadInit

setup and initialize a thread before a new thread is created by csmqmsgque

Definition at line 3871 of file LibMqMsgque_mq.h.

◆ Idle

struct MqCallbackS MqTypeCtxS::Idle

Create a link to the calling tool idle-event-handling …

The Idle-Function is used to process tasks in the background to give the tool-user the feeling of a non-blocking application. For example Tcl using the event-handling to update the Tk user-interface while the application is waiting for data. The Idle-Function is called on idle-time and is designed for a very short function execution time. Do only one action per function call. This function will be called with a ~10000 usec interval to guarantee a parallel like execution.

Attention: The MqCallbackS::data will not be freed or protected against garbage collection, -> only use MqCallbackS::fCall

Definition at line 3852 of file LibMqMsgque_mq.h.

◆ ignoreDisasterSetup

bool MqTypeCtxS::ignoreDisasterSetup

do not setup the disaster-handler at startup.

The disaster-handler bind the function MkDisasterSignal to the signal SIGSEGV and is used to print the stack-trace and additional MqContextC data to MkLogDataS::logFILE on crash.

The problem is, if a target-application (language) needs SIGSEGV, this function can be deactivated with ignoreDisasterSetup = true.

Definition at line 3883 of file LibMqMsgque_mq.h.

◆ ignoreFork

bool MqTypeCtxS::ignoreFork

do not allow the usage of fork

Definition at line 3800 of file LibMqMsgque_mq.h.

◆ ignoreSpawn

bool MqTypeCtxS::ignoreSpawn

do not allow the usage of spawn

Definition at line 3797 of file LibMqMsgque_mq.h.

◆ ignoreThread

bool MqTypeCtxS::ignoreThread

do not allow the usage of threads

Definition at line 3794 of file LibMqMsgque_mq.h.

◆ MqProcessExitCB

MqExitF MqTypeCtxS::MqProcessExitCB

exit/cleanup a process

Definition at line 3822 of file LibMqMsgque_mq.h.

◆ MqThreadExitCB

MqExitF MqTypeCtxS::MqThreadExitCB

exit/cleanup a thread

Definition at line 3825 of file LibMqMsgque_mq.h.

◆ MqWaitForPipeCB

MqWaitForPipeF MqTypeCtxS::MqWaitForPipeCB

wait for pipe target to finish

Definition at line 3828 of file LibMqMsgque_mq.h.

◆ obj

struct MkObjectS MqTypeCtxS::obj

Definition at line 3776 of file LibMqMsgque_mq.h.

◆ Parent

struct MqLinkSetupS MqTypeCtxS::Parent

setup/cleanup a PARENT object

Attention: always call this functions using MqLinkCreate and MqLinkDelete

Definition at line 3838 of file LibMqMsgque_mq.h.

◆ [union]

union { ... } MqTypeCtxS::super

◆ typ

struct MkTypeS MqTypeCtxS::typ

Definition at line 3777 of file LibMqMsgque_mq.h.

The documentation for this struct was generated from the following file:

LibMqMsgque_mq.h
