MqContextC_SendApi_Return_CC_API

MqContextC - finish the send-data-block on the server and optional return the results. … More...

Collaboration diagram for MqContextC_SendApi_Return_CC_API:

Functions
void	ccmqmsgque::MqContextC::SendERROR ()
	C++: ctx.SendERROR() → C-API send the data from the MkErrorC to the link target . …
void	ccmqmsgque::MqContextC::SendRETURN ()
	C++: ctx.SendRETURN() → C-API MqContextC - finish the send-data-block on the server and optional return the results. …
void	ccmqmsgque::MqContextC::SendRETURN_SUB ()
	C++: ctx.SendRETURN_SUB() → C-API return Sub-Data-Blocks required by MqSendEND_AND_SUB …

Detailed Description

MqContextC - finish the send-data-block on the server and optional return the results. …

Every service-handler have to use this function at the end to return the results or the error. If an error is returned the local MkErrorC is reset. The following behaviour is used:

• if a shortterm transaction is ongoing this function return the data or the error to the link target
• if the answer does not return any data no previous MqSendSTART is required.
• if no transaction is ongoing this function does just return. If an error is available report an asynchronous error to the link target.

Parameters

[in]	mkrt	the MkRuntimeS instance to work on - the runtime argument, used by MK_RT_CALL (C-only)
[in]	ctx	the MqContextS instance to work on

Exceptions

MkExceptionC

→ The default-exception from the Programming-Language-Micro-Kernel (PLMK)

Every service-handler have to use this function at the end to return the results or the error. If an error is returned the local MkErrorC is reset. The following behaviour is used:

• if a shortterm transaction is ongoing this function return the data or the error to the link target
• if the answer does not return any data no previous MqSendSTART is required.
• if no transaction is ongoing this function does just return. If an error is available report an asynchronous error to the link target.

Parameters

[in]	mkrt	the MkRuntimeS instance to work on - the runtime argument, used by MK_RT_CALL (C-only)
[in]	ctx	the MqContextS instance to work on

Exceptions

MkExceptionC

→ The default-exception from the Programming-Language-Micro-Kernel (PLMK)

Function Documentation

SendERROR()

void ccmqmsgque::MqContextC::SendERROR ( )

inline

C++: ctx.SendERROR() → C-API
send the data from the MkErrorC to the link target . …

Definition at line 1867 of file MqContextC_inline_cc.hh.

                                      {
    MK_UNUSED auto ctx = getCTX();
    enum MkErrorE errVal = MqSendERROR(ctx);
    MkErrorC_Check(ctx, errVal);
  }

SendRETURN()

void ccmqmsgque::MqContextC::SendRETURN ( )

inline

C++: ctx.SendRETURN() → C-API
MqContextC - finish the send-data-block on the server and optional return the results. …

Definition at line 1874 of file MqContextC_inline_cc.hh.

                                       {
    MK_UNUSED auto ctx = getCTX();
    enum MkErrorE errVal = MqSendRETURN(ctx);
    MkErrorC_Check(ctx, errVal);
  }

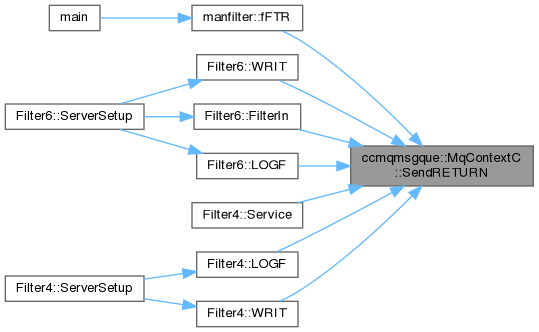

Here is the caller graph for this function:

SendRETURN_SUB()

void ccmqmsgque::MqContextC::SendRETURN_SUB ( )

inline

C++: ctx.SendRETURN_SUB() → C-API
return Sub-Data-Blocks required by MqSendEND_AND_SUB …

Definition at line 1881 of file MqContextC_inline_cc.hh.

                                           {
    MK_UNUSED auto ctx = getCTX();
    enum MkErrorE errVal = MqSendRETURN_SUB(ctx);
    MkErrorC_Check(ctx, errVal);
  }
