MkRuntimeC_C_API

MkRuntimeC - The class known as mkrt or runtime is the main tclmkkernel application environment … More...

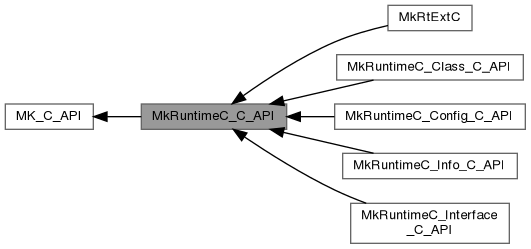

Collaboration diagram for MkRuntimeC_C_API:

Topics
	MkRtExtC
	MkRtExtS - extend the MkRuntimeC with a library specific feature …
	MkRuntimeC_Class_C_API
	MkRuntimeC - define the class …
	MkRuntimeC_Interface_C_API
	MkRuntimeC - The MkRuntimeRLS, a thread-local storage for application-global data …
	MkRuntimeC_Config_C_API
	MkRuntimeC - various functions to configure the MkRuntimeRLS (only C) …
	MkRuntimeC_Info_C_API
	MkRuntimeC - various functions to print information about the rt …

Data Structures
struct	MkThreadDataS
struct	MkRuntimeS
	The MkRuntimeS provide a per-thread environment for tclmkkernel … More...

Macros
#define	MkDbgRt_1(c)
#define	MkDbgRt()
#define	MkDbgRtChkX(x)

Typedefs
typedef struct MkThreadDataS	MkThreadDataS

Variables
bool	MkRuntimeSysPipeHandlerUse
	block SIGPIPE ignore handlern default=true, Java require this

Detailed Description

MkRuntimeC - The class known as mkrt or runtime is the main tclmkkernel application environment …

The runtime is automatically created as thread-local-storage at startup, so that each new thread receives a thread-specific runtime. Each instance of the thread has a link to the runtime it was created in:

• MkOBJ_R(instance).objRt = MkObjectS::objRt

runtime-separation

• The runtime and also the runtime-related-thread in the Programming-Language-Micro-Kernel (PLMK) are treated as an independent-process without any process overhead.
• The runtime is completly independent of any other runtime and can also be used in a separate process without changing the code.
• The technology behind the so-called runtime-separation is the tclmkkernel technology.

the runtime provide the following features

• The default-error -> MkErrorC
• The runtime-local-storage (RLS) -> MkKernel_Storage_C_API
• The application wide configuration data like debug, logfile or silent
• The storage and the management of the Programming-Language-Micro-Kernel (PLMK) default-types like MkBufferC -> MkTypeC_C_API

THREAD ENABLED LIBRARY

The thread-enabled-libry is a library compiled with the --enable-thread configure option of Nhi1Config

RUNTIME DEFAULT

The Programming-Language-Micro-Kernel (PLMK) always has one runtime per thread called the runtime-default. This runtime is created at MkSetup and destroyed at MkCleanup.
The runtime-enabled-function always get the runtime-default as first argument in a doc_mk_tcl_thread-enabled-library.

Macro Definition Documentation

MkDbgRt

#define MkDbgRt

(

)

Value:

MkDbgRt_1(MK_COLOR_PURPLE)

Definition at line 12027 of file LibMkKernel_mk.h.

MkDbgRt_1

#define MkDbgRt_1

(

c

)

Value:

mk_dbg_color_ln(c,"mkrt<%p>, MkRT<%p>", mkrt, MkRT)

Definition at line 12026 of file LibMkKernel_mk.h.

MkDbgRtChkX

#define MkDbgRtChkX

(

x

)

Value:

(MkRT_X(x)==MkRT?"ok":"wrong")

Definition at line 12028 of file LibMkKernel_mk.h.

Typedef Documentation

MkThreadDataS

typedef struct MkThreadDataS MkThreadDataS

Variable Documentation

MkRuntimeSysPipeHandlerUse

bool MkRuntimeSysPipeHandlerUse

extern

block SIGPIPE ignore handlern default=true, Java require this
