MkErrorC_Class_Define_C_API

MkErrorC - low level definition, access and cast … More...

Collaboration diagram for MkErrorC_Class_Define_C_API:

MkErrorC - type definition
typedef struct MkErrorS	MkErrorCR
	instance-struct-reference same as struct MkErrorS, useable in a class-macro as: class##R …
typedef const struct MkErrorS	MkErrorCNR
	const instance-struct-reference same as const struct MkErrorS, useable in a class-macro as: class##R …
#define	MkErrorC_T   (&MK_RT_REF._MkErrorC_T)
	class as MkTypeDefS-class-type, useable in a class-macro as: class##_T …
#define	MkErrorC_TT   (MkTYP(MkErrorC_T))
	class as MkTypeS-class-type, useable in a class-macro as: class##_TT …
#define	MkErrorST   MkErrorC_T
	instance-type as MkTypeDefS-class-type …
#define	MkErrorSTT   (MkTYP(MkErrorST))
	instance-type as MkTypeS-class-type (cast from MkErrorST into MkTypeS) …
#define	MkErrorC_type   MK_ERR
	same as MkErrorS but useable in a class-macro as: class##_type …
#define	MkErrorCT_X(instance)
	cast from an instance into the MkTypeDefS-class-type …
#define	MkErrorCTT_X(instance)
	cast from an instance into the MkTypeS-class-type …
#define	MkErrorCT_TT(typ)
	cast from an MkTypeS-class-type into an MkTypeDefS-class-type …
#define	MkErrorC_NS   MK
	map class to namespace …
#define	MkErrorCTT   MkErrorCTT
	class as MkTypeS-class-type for MkErrorC in the Target-Programming-Language (TPL) …
#define	MkErrorCT   ( (struct MkTypeDefS *) MkErrorCTT )
	class as MkTypeDefS-class-type for MkErrorC in the Target-Programming-Language (TPL) …

MkErrorC - signature check
static bool	MkErrCheck (MK_MNGN mng)
	check MkErrorS -> MkObjectS::signature …
static bool	MkErrCheckO (MK_OBJN obj)
	check MkErrorS -> MkObjectS::signature …

MkErrorC - cast from a defined or a undefined instance
static MK_ERR	MkErr (MK_MNG mng)
	cast a unknown-object into an MkErrorS pointer or NULL if not possible
static MK_ERRN	MkErrN (MK_MNGN mng)
	(const) cast a unknown-object into an MkErrorS pointer or NULL if not possible
#define	MkErrRaise(_err)
	raise an error if class-instance is not valid
#define	MkERR_R(x)
	cast a known-object into an MkErrorS reference
#define	MkERR(x)
	cast a known-object into an MkErrorS pointer

MkErrorC - MkErrorC_Class_Define_C_API - function
MK_ERR	MkErrP (MK_MNG mng)
	Non-inline replacement for MkErr …
MK_BOOL	MkErrCheckP (MK_MNGN mng)
	Non-inline replacement for MkErrCheck …
MK_BOOL	MkErrCheckOP (MK_OBJN obj)
	Non-inline replacement for MkErrCheckO …
MK_ERRN	MkErrNP (MK_MNGN mng)
	Non-inline replacement for MkErrN …

MkErrorC - signature define
#define	MkErrorC_SIGNATURE   (MkObjectC_SIGNATURE ^ (4u<<10))
#define	MkErrorC_MASK   (((1u<<22)-1)<<10)

MkErrorC - cast to superclass
#define	MkErrorC_X2err(x)
#define	MkErrorC_X2obj(x)

Detailed Description

MkErrorC - low level definition, access and cast …

Macro Definition Documentation

MkERR

#define MkERR

(

x

)

Value:

(&MkERR_R(x))

cast a known-object into an MkErrorS pointer

Definition at line 9846 of file LibMkKernel_mk.h.

MkERR_R

#define MkERR_R

(

x

)

Value:

(*(x)).super.err

cast a known-object into an MkErrorS reference

Definition at line 9844 of file LibMkKernel_mk.h.

MkErrorC_MASK

#define MkErrorC_MASK   (((1u<<22)-1)<<10)

Definition at line 9744 of file LibMkKernel_mk.h.

MkErrorC_NS

#define MkErrorC_NS   MK

map class to namespace …

Definition at line 9782 of file LibMkKernel_mk.h.

MkErrorC_SIGNATURE

#define MkErrorC_SIGNATURE   (MkObjectC_SIGNATURE ^ (4u<<10))

Definition at line 9743 of file LibMkKernel_mk.h.

MkErrorC_T

#define MkErrorC_T   (&MK_RT_REF._MkErrorC_T)

class as MkTypeDefS-class-type, useable in a class-macro as: class##_T …

Definition at line 9766 of file LibMkKernel_mk.h.

MkErrorC_TT

#define MkErrorC_TT   (MkTYP(MkErrorC_T))

class as MkTypeS-class-type, useable in a class-macro as: class##_TT …

Definition at line 9768 of file LibMkKernel_mk.h.

MkErrorC_type

#define MkErrorC_type   MK_ERR

same as MkErrorS but useable in a class-macro as: class##_type …

Definition at line 9774 of file LibMkKernel_mk.h.

MkErrorC_X2err

#define MkErrorC_X2err

(

x

)

Value:

(x)

Definition at line 9752 of file LibMkKernel_mk.h.

MkErrorC_X2obj

#define MkErrorC_X2obj

(

x

)

Value:

MkOBJ(x)

Definition at line 9753 of file LibMkKernel_mk.h.

MkErrorCT

#define MkErrorCT   ( (struct MkTypeDefS *) MkErrorCTT )

class as MkTypeDefS-class-type for MkErrorC in the Target-Programming-Language (TPL) …

Definition at line 9786 of file LibMkKernel_mk.h.

MkErrorCT_TT

#define MkErrorCT_TT

(

typ

)

Value:

( (struct MkTypeDefS *) (typ) )

cast from an MkTypeS-class-type into an MkTypeDefS-class-type …

Definition at line 9780 of file LibMkKernel_mk.h.

MkErrorCT_X

#define MkErrorCT_X

(

instance

)

Value:

( (struct MkTypeDefS *) (MkOBJ_R(instance).type) )

cast from an instance into the MkTypeDefS-class-type …

Definition at line 9776 of file LibMkKernel_mk.h.

MkErrorCTT

#define MkErrorCTT   MkErrorCTT

class as MkTypeS-class-type for MkErrorC in the Target-Programming-Language (TPL) …

Definition at line 9784 of file LibMkKernel_mk.h.

MkErrorCTT_X

#define MkErrorCTT_X

(

instance

)

Value:

(MkOBJ_R(instance).type)

cast from an instance into the MkTypeS-class-type …

Definition at line 9778 of file LibMkKernel_mk.h.

MkErrorST

#define MkErrorST   MkErrorC_T

instance-type as MkTypeDefS-class-type …

Definition at line 9770 of file LibMkKernel_mk.h.

MkErrorSTT

#define MkErrorSTT   (MkTYP(MkErrorST))

instance-type as MkTypeS-class-type (cast from MkErrorST into MkTypeS) …

Definition at line 9772 of file LibMkKernel_mk.h.

MkErrRaise

#define MkErrRaise

(

_err

)

Value:

    if (!_MkCheckX(MkErrorC,_err)) { \
    MkErrorSetC_1E("'MkErrorC' hdl is NULL"); \
    goto error ; \
  }

raise an error if class-instance is not valid

Definition at line 9838 of file LibMkKernel_mk.h.

  #define MkErrRaise(_err) if (!_MkCheckX(MkErrorC,_err)) { \
    MkErrorSetC_1E("'MkErrorC' hdl is NULL"); \
    goto error ; \
  }

Typedef Documentation

MkErrorCNR

typedef const struct MkErrorS MkErrorCNR

const instance-struct-reference same as const struct MkErrorS, useable in a class-macro as: class##R …

Definition at line 9764 of file LibMkKernel_mk.h.

MkErrorCR

typedef struct MkErrorS MkErrorCR

instance-struct-reference same as struct MkErrorS, useable in a class-macro as: class##R …

Definition at line 9762 of file LibMkKernel_mk.h.

Function Documentation

MkErr()

static MK_ERR MkErr ( MK_MNG mng )

inlinestatic

cast a unknown-object into an MkErrorS pointer or NULL if not possible

Definition at line 9825 of file LibMkKernel_mk.h.

                                     {
    return (MkErrCheck(mng) ? (MK_ERR)mng : NULL);
  }

Here is the caller graph for this function:

MkErrCheck()

static bool MkErrCheck ( MK_MNGN mng )

inlinestatic

check MkErrorS -> MkObjectS::signature …

Returns

TRUE on valid err and FALSE an invalid err

Definition at line 9801 of file LibMkKernel_mk.h.

                                          {
    return MkSanitizeCheck(MkErrorC,mng);
  }

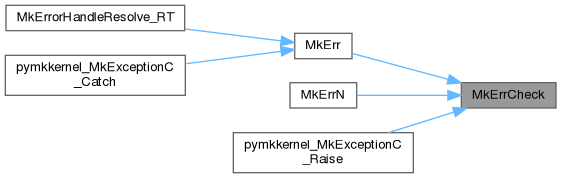

Here is the caller graph for this function:

MkErrCheckO()

static bool MkErrCheckO ( MK_OBJN obj )

inlinestatic

check MkErrorS -> MkObjectS::signature …

Returns

TRUE on valid err and FALSE an invalid err

Definition at line 9809 of file LibMkKernel_mk.h.

                                           {
    return MkSanitizeCheckO(MkErrorC,obj);
  }

MkErrCheckOP()

MK_BOOL MkErrCheckOP

(

MK_OBJN

obj

)

Non-inline replacement for MkErrCheckO …

MkErrCheckP()

MK_BOOL MkErrCheckP

(

MK_MNGN

mng

)

Non-inline replacement for MkErrCheck …

MkErrN()

static MK_ERRN MkErrN ( MK_MNGN mng )

inlinestatic

(const) cast a unknown-object into an MkErrorS pointer or NULL if not possible

Definition at line 9833 of file LibMkKernel_mk.h.

                                        {
    return (MkErrCheck(mng) ? (MK_ERRN)mng : NULL);
  }

MkErrNP()

MK_ERRN MkErrNP

(

MK_MNGN

mng

)

Non-inline replacement for MkErrN …

MkErrP()

MK_ERR MkErrP

(

MK_MNG

mng

)

Non-inline replacement for MkErr …
