MkRuntimeC_Class_Define_C_API
MK_C_API » MkRuntimeC_C_API » MkRuntimeC_Class_C_API

MkRuntimeC - low level definition, access and cast … More...

+ Collaboration diagram for MkRuntimeC_Class_Define_C_API:

MkRuntimeC - type definition

typedef struct MkRuntimeS libmkkernel::MkRuntimeCR
 instance-struct-reference same as struct MkRuntimeS, useable in a class-macro as: class##R …

typedef const struct MkRuntimeS libmkkernel::MkRuntimeCNR
 const instance-struct-reference same as const struct MkRuntimeS, useable in a class-macro as: class##R …

#define MkRuntimeC_T   (&MK_RT_REF._MkRuntimeC_T)
 class as MkTypeDefS-class-type, useable in a class-macro as: class##_T …

#define MkRuntimeC_TT   (MkTYP(MkRuntimeC_T))
 class as MkTypeS-class-type, useable in a class-macro as: class##_TT …

#define MkRuntimeST   MkRuntimeC_T
 instance-type as MkTypeDefS-class-type …

#define MkRuntimeSTT   (MkTYP(MkRuntimeST))
 instance-type as MkTypeS-class-type (cast from MkRuntimeST into MkTypeS) …

#define MkRuntimeC_type   MK_RT
 same as MkRuntimeS but useable in a class-macro as: class##_type …

#define MkRuntimeCT_X(instance)
 cast from an instance into the MkTypeDefS-class-type …

#define MkRuntimeCTT_X(instance)
 cast from an instance into the MkTypeS-class-type …

#define MkRuntimeCT_TT(typ)
 cast from an MkTypeS-class-type into an MkTypeDefS-class-type …

#define MkRuntimeC_NS   MK
 map class to namespace …

#define MkRuntimeCTT   MkRuntimeCTT
 class as MkTypeS-class-type for MkRuntimeC in the Target-Programming-Language (TPL) …

#define MkRuntimeCT   ( (struct MkTypeDefS *) MkRuntimeCTT )
 class as MkTypeDefS-class-type for MkRuntimeC in the Target-Programming-Language (TPL) …


MkRuntimeC - signature check

static bool libmkkernel::MkRtCheck (MK_MNGN mng)
 check MkRuntimeS -> libmkkernel::MkObjectS::signature …

static bool libmkkernel::MkRtCheckO (MK_OBJN obj)
 check MkRuntimeS -> libmkkernel::MkObjectS::signature …

#define MkRuntimeC_Check(mng)


MkRuntimeC - cast from a defined or a undefined instance

static MK_RT libmkkernel::MkRt (MK_MNG mng)
 cast a unknown-object into an MkRuntimeS pointer or NULL if not possible

static MK_RTN libmkkernel::MkRtN (MK_MNGN mng)
 (const) cast a unknown-object into an MkRuntimeS pointer or NULL if not possible

#define MkRtRaise(_rt)
 raise an error if class-instance is not valid


MkRuntimeC - signature define

#define MkRuntimeC_SIGNATURE   (MkObjectC_SIGNATURE ^ (10u<<10))

#define MkRuntimeC_MASK   (((1u<<22)-1)<<10)


MkRuntimeC - cast to superclass

#define MkRuntimeC_X2rt(x)

#define MkRuntimeC_X2obj(x)


Detailed Description

MkRuntimeC - low level definition, access and cast …

Macro Definition Documentation

◆ MkRtRaise

#define MkRtRaise ( _rt)
Value:
if (!_MkCheckX(MkRuntimeC,_rt)) { \
MkErrorSetC_1E("'MkRuntimeC' hdl is NULL"); \
goto error ; \
}
_MkCheckX
#define _MkCheckX(cls, x)
Definition LibMkKernel_mk.h:3298

raise an error if class-instance is not valid

Definition at line 12308 of file LibMkKernel_mk.h.

12308// MkRuntime_C_API
12309
12310// =========================================================================
12311// BEGIN-MkRuntimeS-Export - created by 'c_Class.tcl -i NHI1_HOME/theKernel/c/gen/c_mkkernel.meta' - DO NOT change

◆ MkRuntimeC_Check

#define MkRuntimeC_Check ( mng)
Value:
MkRtCheck(mng)

Definition at line 12283 of file LibMkKernel_mk.h.

◆ MkRuntimeC_MASK

#define MkRuntimeC_MASK   (((1u<<22)-1)<<10)

Definition at line 12213 of file LibMkKernel_mk.h.

◆ MkRuntimeC_NS

#define MkRuntimeC_NS   MK

map class to namespace …

Definition at line 12251 of file LibMkKernel_mk.h.

◆ MkRuntimeC_SIGNATURE

#define MkRuntimeC_SIGNATURE   (MkObjectC_SIGNATURE ^ (10u<<10))

Definition at line 12212 of file LibMkKernel_mk.h.

◆ MkRuntimeC_T

#define MkRuntimeC_T   (&MK_RT_REF._MkRuntimeC_T)

class as MkTypeDefS-class-type, useable in a class-macro as: class##_T …

Definition at line 12235 of file LibMkKernel_mk.h.

◆ MkRuntimeC_TT

#define MkRuntimeC_TT   (MkTYP(MkRuntimeC_T))

class as MkTypeS-class-type, useable in a class-macro as: class##_TT …

Definition at line 12237 of file LibMkKernel_mk.h.

◆ MkRuntimeC_type

#define MkRuntimeC_type   MK_RT

same as MkRuntimeS but useable in a class-macro as: class##_type …

Definition at line 12243 of file LibMkKernel_mk.h.

◆ MkRuntimeC_X2obj

#define MkRuntimeC_X2obj ( x)
Value:
MkOBJ(x)
MkOBJ
#define MkOBJ(x)
cast a known-object into an MkObjectS pointer
Definition LibMkKernel_mk.h:3551

Definition at line 12222 of file LibMkKernel_mk.h.

◆ MkRuntimeC_X2rt

#define MkRuntimeC_X2rt ( x)
Value:
(x)

Definition at line 12221 of file LibMkKernel_mk.h.

◆ MkRuntimeCT

#define MkRuntimeCT   ( (struct MkTypeDefS *) MkRuntimeCTT )

class as MkTypeDefS-class-type for MkRuntimeC in the Target-Programming-Language (TPL) …

Definition at line 12255 of file LibMkKernel_mk.h.

◆ MkRuntimeCT_TT

#define MkRuntimeCT_TT ( typ)
Value:
( (struct MkTypeDefS *) (typ) )

cast from an MkTypeS-class-type into an MkTypeDefS-class-type …

Definition at line 12249 of file LibMkKernel_mk.h.

◆ MkRuntimeCT_X

#define MkRuntimeCT_X ( instance)
Value:
( (struct MkTypeDefS *) (MkOBJ_R(instance).type) )
MkOBJ_R
#define MkOBJ_R(x)
cast a known-object into an MkObjectS reference
Definition LibMkKernel_mk.h:3549

cast from an instance into the MkTypeDefS-class-type …

Definition at line 12245 of file LibMkKernel_mk.h.

◆ MkRuntimeCTT

#define MkRuntimeCTT   MkRuntimeCTT

class as MkTypeS-class-type for MkRuntimeC in the Target-Programming-Language (TPL) …

Definition at line 12253 of file LibMkKernel_mk.h.

◆ MkRuntimeCTT_X

#define MkRuntimeCTT_X ( instance)
Value:
(MkOBJ_R(instance).type)

cast from an instance into the MkTypeS-class-type …

Definition at line 12247 of file LibMkKernel_mk.h.

◆ MkRuntimeST

#define MkRuntimeST   MkRuntimeC_T

instance-type as MkTypeDefS-class-type …

Definition at line 12239 of file LibMkKernel_mk.h.

◆ MkRuntimeSTT

#define MkRuntimeSTT   (MkTYP(MkRuntimeST))

instance-type as MkTypeS-class-type (cast from MkRuntimeST into MkTypeS) …

Definition at line 12241 of file LibMkKernel_mk.h.

Typedef Documentation

◆ MkRuntimeCNR

typedef const struct MkRuntimeS libmkkernel::MkRuntimeCNR

const instance-struct-reference same as const struct MkRuntimeS, useable in a class-macro as: class##R …

Definition at line 12233 of file LibMkKernel_mk.h.

◆ MkRuntimeCR

typedef struct MkRuntimeS libmkkernel::MkRuntimeCR

instance-struct-reference same as struct MkRuntimeS, useable in a class-macro as: class##R …

Definition at line 12231 of file LibMkKernel_mk.h.

Function Documentation

◆ MkRt()

static MK_RT libmkkernel::MkRt ( MK_MNG mng)
inlinestatic

cast a unknown-object into an MkRuntimeS pointer or NULL if not possible

Definition at line 12295 of file LibMkKernel_mk.h.

◆ MkRtCheck()

static bool libmkkernel::MkRtCheck ( MK_MNGN mng)
inlinestatic

check MkRuntimeS -> libmkkernel::MkObjectS::signature …

Returns
TRUE on valid rt and FALSE an invalid rt

Definition at line 12270 of file LibMkKernel_mk.h.

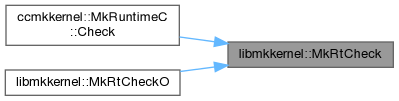

+ Here is the caller graph for this function:

◆ MkRtCheckO()

static bool libmkkernel::MkRtCheckO ( MK_OBJN obj)
inlinestatic

check MkRuntimeS -> libmkkernel::MkObjectS::signature …

Returns
TRUE on valid rt and FALSE an invalid rt

Definition at line 12278 of file LibMkKernel_mk.h.

◆ MkRtN()

static MK_RTN libmkkernel::MkRtN ( MK_MNGN mng)
inlinestatic

(const) cast a unknown-object into an MkRuntimeS pointer or NULL if not possible

Definition at line 12303 of file LibMkKernel_mk.h.
