MkBufferListC_Class_Define_C_API

MkBufferListC - low level definition, access and cast … More...

Collaboration diagram for MkBufferListC_Class_Define_C_API:

MkBufferListC - type definition
typedef struct MkBufferListS	libmkkernel::MkBufferListCR
	instance-struct-reference same as struct MkBufferListS, useable in a class-macro as: class##R …
typedef const struct MkBufferListS	libmkkernel::MkBufferListCNR
	const instance-struct-reference same as const struct MkBufferListS, useable in a class-macro as: class##R …
#define	MkBufferListC_T   (&MK_RT_REF._MkBufferListC_T)
	class as MkTypeDefS-class-type, useable in a class-macro as: class##_T …
#define	MkBufferListC_TT   (MkTYP(MkBufferListC_T))
	class as MkTypeS-class-type, useable in a class-macro as: class##_TT …
#define	MkBufferListST   MkBufferListC_T
	instance-type as MkTypeDefS-class-type …
#define	MkBufferListSTT   (MkTYP(MkBufferListST))
	instance-type as MkTypeS-class-type (cast from MkBufferListST into MkTypeS) …
#define	MkBufferListC_type   MK_BFL
	same as MkBufferListS but useable in a class-macro as: class##_type …
#define	MkBufferListCT_X(instance)
	cast from an instance into the MkTypeDefS-class-type …
#define	MkBufferListCTT_X(instance)
	cast from an instance into the MkTypeS-class-type …
#define	MkBufferListCT_TT(typ)
	cast from an MkTypeS-class-type into an MkTypeDefS-class-type …
#define	MkBufferListC_NS   MK
	map class to namespace …
#define	MkBufferListCTT   MkBufferListCTT
	class as MkTypeS-class-type for MkBufferListC in the Target-Programming-Language (TPL) …
#define	MkBufferListCT   ( (struct MkTypeDefS *) MkBufferListCTT )
	class as MkTypeDefS-class-type for MkBufferListC in the Target-Programming-Language (TPL) …

MkBufferListC - signature check
static bool	libmkkernel::MkBflCheck (MK_MNGN mng)
	check MkBufferListS -> libmkkernel::MkObjectS::signature …
static bool	libmkkernel::MkBflCheckO (MK_OBJN obj)
	check MkBufferListS -> libmkkernel::MkObjectS::signature …
#define	MkBufferListC_Check(mng)

MkBufferListC - cast from a defined or a undefined instance
static MK_BFL	libmkkernel::MkBfl (MK_MNG mng)
	cast a unknown-object into an MkBufferListS pointer or NULL if not possible
static MK_BFLN	libmkkernel::MkBflN (MK_MNGN mng)
	(const) cast a unknown-object into an MkBufferListS pointer or NULL if not possible
#define	MkBflRaise(_bfl)
	raise an error if class-instance is not valid
#define	MkBFL_R(x)
	cast a known-object into an MkBufferListS reference
#define	MkBFL(x)
	cast a known-object into an MkBufferListS pointer

MkBufferListC - signature define
#define	MkBufferListC_SIGNATURE   (MkObjectC_SIGNATURE ^ (2u<<10))
#define	MkBufferListC_MASK   (((1u<<22)-1)<<10)

MkBufferListC - cast to superclass
#define	MkBufferListC_X2bfl(x)
#define	MkBufferListC_X2obj(x)

Detailed Description

MkBufferListC - low level definition, access and cast …

Macro Definition Documentation

MkBFL

#define MkBFL

(

x

)

Value:

(&MkBFL_R(x))

cast a known-object into an MkBufferListS pointer

Definition at line 206 of file MkBufferListC_def_mk.h.

MkBFL_R

#define MkBFL_R

(

x

)

Value:

(*(x)).super.bfl

cast a known-object into an MkBufferListS reference

Definition at line 204 of file MkBufferListC_def_mk.h.

MkBflRaise

#define MkBflRaise

(

_bfl

)

Value:

    if (!_MkCheckX(MkBufferListC,_bfl)) { \
    MkErrorSetC_1E("'MkBufferListC' hdl is NULL"); \
    goto error ; \
  }

raise an error if class-instance is not valid

Definition at line 198 of file MkBufferListC_def_mk.h.

  #define MkBflRaise(_bfl) if (!_MkCheckX(MkBufferListC,_bfl)) { \
    MkErrorSetC_1E("'MkBufferListC' hdl is NULL"); \
    goto error ; \
  }

MkBufferListC_Check

#define MkBufferListC_Check

(

mng

)

Value:

MkBflCheck(mng)

Definition at line 173 of file MkBufferListC_def_mk.h.

MkBufferListC_MASK

#define MkBufferListC_MASK   (((1u<<22)-1)<<10)

Definition at line 103 of file MkBufferListC_def_mk.h.

MkBufferListC_NS

#define MkBufferListC_NS   MK

map class to namespace …

Definition at line 141 of file MkBufferListC_def_mk.h.

MkBufferListC_SIGNATURE

#define MkBufferListC_SIGNATURE   (MkObjectC_SIGNATURE ^ (2u<<10))

Definition at line 102 of file MkBufferListC_def_mk.h.

MkBufferListC_T

#define MkBufferListC_T   (&MK_RT_REF._MkBufferListC_T)

class as MkTypeDefS-class-type, useable in a class-macro as: class##_T …

Definition at line 125 of file MkBufferListC_def_mk.h.

MkBufferListC_TT

#define MkBufferListC_TT   (MkTYP(MkBufferListC_T))

class as MkTypeS-class-type, useable in a class-macro as: class##_TT …

Definition at line 127 of file MkBufferListC_def_mk.h.

MkBufferListC_type

#define MkBufferListC_type   MK_BFL

same as MkBufferListS but useable in a class-macro as: class##_type …

Definition at line 133 of file MkBufferListC_def_mk.h.

MkBufferListC_X2bfl

#define MkBufferListC_X2bfl

(

x

)

Value:

(x)

Definition at line 111 of file MkBufferListC_def_mk.h.

MkBufferListC_X2obj

#define MkBufferListC_X2obj

(

x

)

Value:

MkOBJ(x)

Definition at line 112 of file MkBufferListC_def_mk.h.

MkBufferListCT

#define MkBufferListCT   ( (struct MkTypeDefS *) MkBufferListCTT )

class as MkTypeDefS-class-type for MkBufferListC in the Target-Programming-Language (TPL) …

Definition at line 145 of file MkBufferListC_def_mk.h.

MkBufferListCT_TT

#define MkBufferListCT_TT

(

typ

)

Value:

( (struct MkTypeDefS *) (typ) )

cast from an MkTypeS-class-type into an MkTypeDefS-class-type …

Definition at line 139 of file MkBufferListC_def_mk.h.

MkBufferListCT_X

#define MkBufferListCT_X

(

instance

)

Value:

( (struct MkTypeDefS *) (MkOBJ_R(instance).type) )

cast from an instance into the MkTypeDefS-class-type …

Definition at line 135 of file MkBufferListC_def_mk.h.

MkBufferListCTT

#define MkBufferListCTT   MkBufferListCTT

class as MkTypeS-class-type for MkBufferListC in the Target-Programming-Language (TPL) …

Definition at line 143 of file MkBufferListC_def_mk.h.

MkBufferListCTT_X

#define MkBufferListCTT_X

(

instance

)

Value:

(MkOBJ_R(instance).type)

cast from an instance into the MkTypeS-class-type …

Definition at line 137 of file MkBufferListC_def_mk.h.

MkBufferListST

#define MkBufferListST   MkBufferListC_T

instance-type as MkTypeDefS-class-type …

Definition at line 129 of file MkBufferListC_def_mk.h.

MkBufferListSTT

#define MkBufferListSTT   (MkTYP(MkBufferListST))

instance-type as MkTypeS-class-type (cast from MkBufferListST into MkTypeS) …

Definition at line 131 of file MkBufferListC_def_mk.h.

Typedef Documentation

MkBufferListCNR

typedef const struct MkBufferListS libmkkernel::MkBufferListCNR

const instance-struct-reference same as const struct MkBufferListS, useable in a class-macro as: class##R …

Definition at line 123 of file MkBufferListC_def_mk.h.

MkBufferListCR

typedef struct MkBufferListS libmkkernel::MkBufferListCR

instance-struct-reference same as struct MkBufferListS, useable in a class-macro as: class##R …

Definition at line 121 of file MkBufferListC_def_mk.h.

Function Documentation

MkBfl()

static MK_BFL libmkkernel::MkBfl ( MK_MNG mng )

inlinestatic

cast a unknown-object into an MkBufferListS pointer or NULL if not possible

Definition at line 185 of file MkBufferListC_def_mk.h.

                                     {
    return (MkBflCheck(mng) ? (MK_BFL)mng : NULL);
  }

Here is the caller graph for this function:

MkBflCheck()

static bool libmkkernel::MkBflCheck ( MK_MNGN mng )

inlinestatic

check MkBufferListS -> libmkkernel::MkObjectS::signature …

Returns

TRUE on valid bfl and FALSE an invalid bfl

Definition at line 160 of file MkBufferListC_def_mk.h.

                                          {
    return MkSanitizeCheck(MkBufferListC,mng);
  }

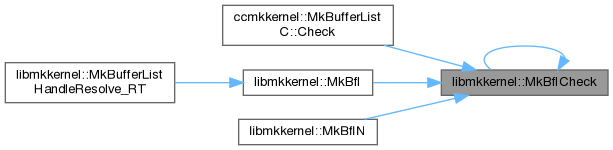

Here is the caller graph for this function:

MkBflCheckO()

static bool libmkkernel::MkBflCheckO ( MK_OBJN obj )

inlinestatic

check MkBufferListS -> libmkkernel::MkObjectS::signature …

Returns

TRUE on valid bfl and FALSE an invalid bfl

Definition at line 168 of file MkBufferListC_def_mk.h.

                                           {
    return MkSanitizeCheckO(MkBufferListC,obj);
  }

Here is the caller graph for this function:

MkBflN()

static MK_BFLN libmkkernel::MkBflN ( MK_MNGN mng )

inlinestatic

(const) cast a unknown-object into an MkBufferListS pointer or NULL if not possible

Definition at line 193 of file MkBufferListC_def_mk.h.

                                        {
    return (MkBflCheck(mng) ? (MK_BFLN)mng : NULL);
  }
