This is an circel storage of a linked-list connected with a "lock" at MkCacheS … More...

#include <LibMkKernel_mk.h>

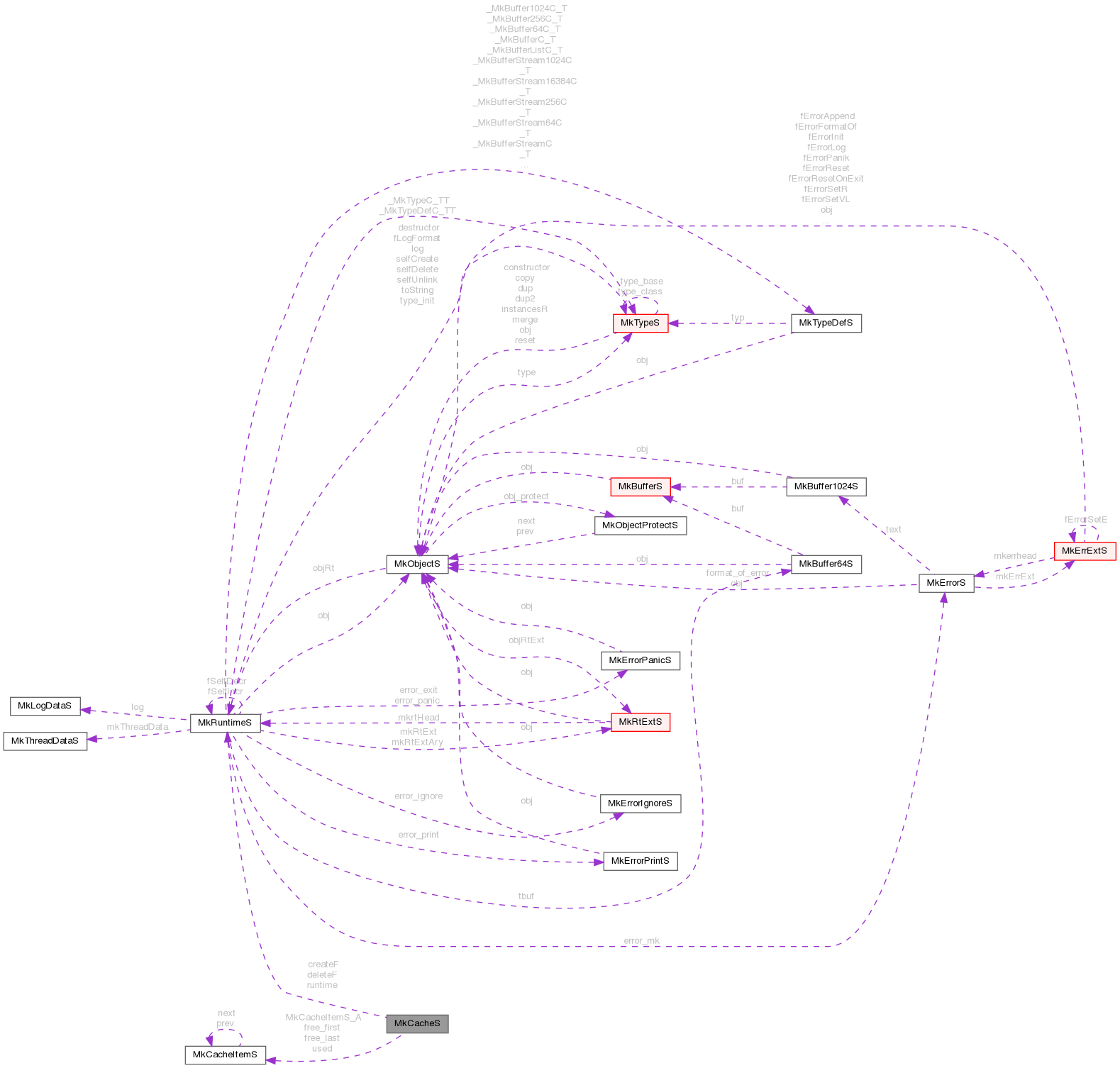

Collaboration diagram for MkCacheS:

Data Fields
MK_RT	runtime
	link to the runtime

MK_STRB	name [MkCacheS_name_size]
	name of the cache

struct MkCacheItemS *	used
	used cache items

struct MkCacheItemS *	free_first
	free first cache item

struct MkCacheItemS *	free_last
	free last cache item

MkCacheCF	createF
	function to create 'data'

MkCacheDF	deleteF
	function to delete 'data'

MK_PTR	createD
	additional create data item

MK_NUM	num
	MIN num items in cache.

struct MkCacheItemS	MkCacheItemS_A [MkCacheS_MkCacheItemS_size]

MK_NUM	MkCacheItemS_N

Detailed Description

This is an circel storage of a linked-list connected with a "lock" at MkCacheS …

a new item is taken from the free_first saved on top of the used.
an old item is taken from the used and saved into the free_last.

The number of items between free_first and free_last is MIN num, so that between a reuse of an old-item is always min items used bevor.

Definition at line 2325 of file LibMkKernel_mk.h.

Field Documentation

◆ createD

MK_PTR MkCacheS::createD

additional create data item

Definition at line 2334 of file LibMkKernel_mk.h.

◆ createF

MkCacheCF MkCacheS::createF

function to create 'data'

Definition at line 2332 of file LibMkKernel_mk.h.

◆ deleteF

MkCacheDF MkCacheS::deleteF

function to delete 'data'

Definition at line 2333 of file LibMkKernel_mk.h.

◆ free_first

struct MkCacheItemS* MkCacheS::free_first

free first cache item

Definition at line 2330 of file LibMkKernel_mk.h.

◆ free_last

struct MkCacheItemS* MkCacheS::free_last

free last cache item

Definition at line 2331 of file LibMkKernel_mk.h.

◆ MkCacheItemS_A

struct MkCacheItemS MkCacheS::MkCacheItemS_A[MkCacheS_MkCacheItemS_size]

Definition at line 2338 of file LibMkKernel_mk.h.

◆ MkCacheItemS_N

MK_NUM MkCacheS::MkCacheItemS_N

Definition at line 2339 of file LibMkKernel_mk.h.

◆ name

MK_STRB MkCacheS::name[MkCacheS_name_size]

name of the cache

Definition at line 2328 of file LibMkKernel_mk.h.

◆ num

MK_NUM MkCacheS::num

MIN num items in cache.

Definition at line 2335 of file LibMkKernel_mk.h.

◆ runtime

MK_RT MkCacheS::runtime

link to the runtime

Definition at line 2326 of file LibMkKernel_mk.h.

◆ used

struct MkCacheItemS* MkCacheS::used

used cache items

Definition at line 2329 of file LibMkKernel_mk.h.

The documentation for this struct was generated from the following file:

LibMkKernel_mk.h
