cclcconfig::LcSettingDeleteCallbackC Struct Reference

infrastructur to use the cclcconfig specific callback … More...

#include <LcCall_cc.hh>

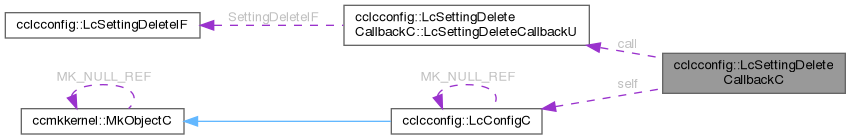

Collaboration diagram for cclcconfig::LcSettingDeleteCallbackC:

Classes
union	LcSettingDeleteCallbackU
	storage to hold the callback More...

Public Types
enum	LcSettingDeleteCallbackE { PC_LcSettingDeleteCB , PC_LcSettingDeleteIF }

Static Public Member Functions
static MK_CBP	Create (MK_RT mkrt, LcSettingDeleteSCB const callback, LcConfigC *self=NULL)
static MK_CBP	Create (MK_RT mkrt, LcSettingDeleteIF *callback, LcConfigC *self=NULL)
static enum MkErrorE	Call (LcSettingDeleteCallF_ARGS)
static void	Free (LcSettingDeleteFreeF_ARGS)

Public Attributes
enum cclcconfig::LcSettingDeleteCallbackC::LcSettingDeleteCallbackE	type
union cclcconfig::LcSettingDeleteCallbackC::LcSettingDeleteCallbackU	call
LcConfigC *	self

Detailed Description

infrastructur to use the cclcconfig specific callback …

Definition at line 55 of file LcCall_cc.hh.

Member Enumeration Documentation

LcSettingDeleteCallbackE

enum cclcconfig::LcSettingDeleteCallbackC::LcSettingDeleteCallbackE

Enumerator
PC_LcSettingDeleteCB
PC_LcSettingDeleteIF

Definition at line 56 of file LcCall_cc.hh.

                                   {
      PC_LcSettingDeleteCB,
      PC_LcSettingDeleteIF,
    } type;

Member Function Documentation

Call()

enum MkErrorE cclcconfig::LcSettingDeleteCallbackC::Call ( LcSettingDeleteCallF_ARGS )

static

Definition at line 83 of file LcCall_cc.cc.

  {
    LcSettingDeleteCallF_CHECK;

    auto pdata = static_cast<LcSettingDeleteCallbackC* const> (cfg->fSettingDeleteData);
    auto hdl = MkObjectHandleGet_1X(cfs);

    try {
      switch (pdata->type) {
        case PC_LcSettingDeleteIF:
          (pdata->call.SettingDeleteIF->LcSettingDelete)(hdl);
          break;
        default:
          MkErrorSetC_2M(cfg,"LcSettingDeleteCB: callback-data-type-error");
          goto error;
      }
    } catch (const MkExceptionC& ex) {
      MkExceptionC::Catch(cfg,ex);
      goto error;
    } catch (const exception& ex) {
      MkExceptionC::Catch(cfg,ex);
      goto error;
    } catch (...) {
      // http://groups.google.com/group/comp.programming.threads/browse_thread/thread/652bcf186fbbf697/f63757846514e5e5
      throw;
    }

    // everything is OK
error:
    return MkErrorStack_0E_Check();
  }

Here is the caller graph for this function:

Create() [1/2]

static MK_CBP cclcconfig::LcSettingDeleteCallbackC::Create ( MK_RT mkrt, LcSettingDeleteIF * callback, LcConfigC * self = NULL )

inlinestatic

Definition at line 83 of file LcCall_cc.hh.

                                                                                          {
        return callback ? new LcSettingDeleteCallbackC(PC_LcSettingDeleteIF,callback,self) : NULL;
      }

Create() [2/2]

static MK_CBP cclcconfig::LcSettingDeleteCallbackC::Create ( MK_RT mkrt, LcSettingDeleteSCB const callback, LcConfigC * self = NULL )

inlinestatic

Definition at line 79 of file LcCall_cc.hh.

                                                                                               {
        return callback ? new LcSettingDeleteCallbackC(PC_LcSettingDeleteCB,callback,self) : NULL;
      }

Here is the caller graph for this function:

Free()

void cclcconfig::LcSettingDeleteCallbackC::Free ( LcSettingDeleteFreeF_ARGS )

static

Definition at line 74 of file LcCall_cc.cc.

  {
    delete static_cast<LcSettingDeleteCallbackC*>(cfg->fSettingDeleteData);

    cfg->fSettingDeleteData = NULL;
    cfg->fSettingDeleteCall = NULL;
    cfg->fSettingDeleteFree = NULL;
  }

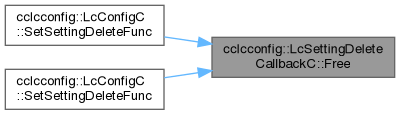

Here is the caller graph for this function:

Member Data Documentation

call

union cclcconfig::LcSettingDeleteCallbackC::LcSettingDeleteCallbackU cclcconfig::LcSettingDeleteCallbackC::call

self

LcConfigC* cclcconfig::LcSettingDeleteCallbackC::self

Definition at line 69 of file LcCall_cc.hh.

type

enum cclcconfig::LcSettingDeleteCallbackC::LcSettingDeleteCallbackE cclcconfig::LcSettingDeleteCallbackC::type

---

The documentation for this struct was generated from the following files:

• LcCall_cc.hh
• LcCall_cc.cc
