MqContextC_ReadApi_TCL_API

MqContextC - extract data from an incoming read-data-package … More...

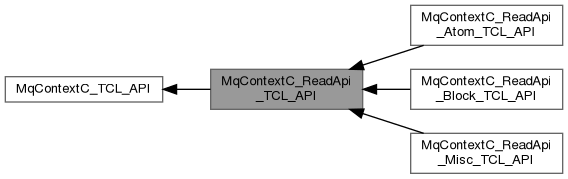

Collaboration diagram for MqContextC_ReadApi_TCL_API:

Topics
	MqContextC_ReadApi_Atom_TCL_API
	MqContextC - read a single-data-item outof a read-data-package …
	MqContextC_ReadApi_Block_TCL_API
	MqContextC - read a block-of-data outof a read-data-package …
	MqContextC_ReadApi_Misc_TCL_API
	MqContextC - various functions to work on a read-data-package …

Detailed Description

MqContextC - extract data from an incoming read-data-package …

A data-package is read in two different scenarios:

• on a server to serve an incoming service-call from the client
• on a client to process the return-data from a previous service-call

Reading data is a passive-task and the opposite of sending data, which is an active-task. Passive means that the reading process is triggered by an incoming-data-package and not by the software workflow or by the user.
There is a read function and some help functions for each basic type defined in MkBufferC .

Read-Safe

Each service-call has a private read-data-package. This means that during a service-call that is in progress, another service-call can be served without damaging the read-data-package of the current service-call.

Type-Safe

A data-item in a read-data-package is type safe, this mean that every read of a data-item have to match the data-type of the previous write. One exception is available, the cast from and to the string data-type (TYPE=C) is allowed.

Example from server.tcl → read-safety: Make a nested service-call

  method Ot_CSV1 {} {

    # read the input-data from the CSV1-service-call
    # client → server
    set inI   [my ReadI32]
    incr inI

    # call the CSV2-service at the client, wait 10sec for timeout
    # server → client → server
    set retI  [my Send "Wt" 10 "CSV2:I@I" $inI]
    incr retI

    # answer the CSV1-service-call with the result from the CSV2-service-call
    # server → client
    my Send "R" "I" $retI
  }
