MqFactoryC_RB_API

MqFactoryC - the class known as fct or factory is used to provide an interface to create one or more new MqContextC … More...

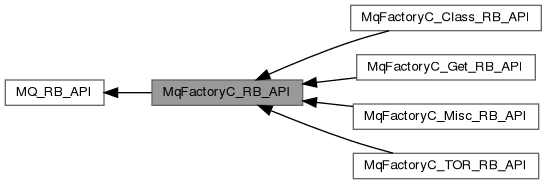

Collaboration diagram for MqFactoryC_RB_API:

Topics
	MqFactoryC_Class_RB_API
	MqFactoryC - define the class …
	MqFactoryC_TOR_RB_API
	MqFactoryC - various functions to create, initialize and destroy a factory …
	MqFactoryC_Get_RB_API
	MqFactoryC - various functions to 'get' data out of a factory …
	MqFactoryC_Misc_RB_API
	MqFactoryC - various functions to work on a factory …

Detailed Description

MqFactoryC - the class known as fct or factory is used to provide an interface to create one or more new MqContextC …

The factory is an important part of the object management and has the following basic features:

1. create/delete a MqContextC defined by a MqFactoryC
2. infrastructure to host multiple MqFactoryC in a single executable
3. provide an identifier used for factory-lookup and as an unique-application-name
4. identification of a client and a server in an application-link

Without a factory only the pipe-feature without the child-feature is guaranteed to work. Other features may work, this depends of the "flexibility" of the programming-language.

The link between the MqFactoryS-identifier and the MqFactoryC is important for the future development of rbmqmsgque. Message-Routing, Service-Location and Persistent-Transactions depend on this feature.

The relationship between the MqFactoryC and the MqContextC is the same as the relationship between a type (MqFactoryS) and an object (MqContextS) of a regular programming language. The MqFactoryC define the type of the server and the MqContextC define a single object of the server process or thread.

                                     Application
|-------------------------------------------------------------------------------------|
|--------------- physical host 1 -----------------------|------ physical host 2 ------|
|-------- process-1 --------|-------- process-2 --------|-- process-3 --|---- … ------|
 thread-1     thread-2…      thread-1…     thread-2…      thread-1…       thread-…
  factory-A     factory-X     factory-Y…    factory-Z…
   object-1     object-1   object-…    …
   object-2     object-2   …
   object-3     object-3
   …              …

A server has a single MqFactoryC object per thread or process but multiple MqFactoryC objects per application. Decreasing the size and the complexity of a MqContextC object will improve the server performance. In future more fields, defined in the MqSetupS attribute of the the MqContextC object, will move into MqFactoryC object.
