MqDumpC_RB_API

MqDumpC - the class known as dmp or dump is used to export a rbmqmsgque data package as binary … More...

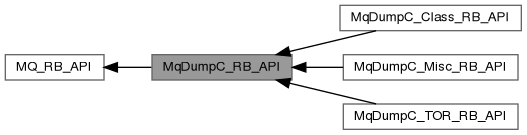

Collaboration diagram for MqDumpC_RB_API:

Topics
	MqDumpC_Class_RB_API
	MqDumpC - define the class …
	MqDumpC_TOR_RB_API
	MqDumpC - various functions to create, initialize and destroy a dump …
	MqDumpC_Misc_RB_API
	MqDumpC - various functions to work on a dump …

Detailed Description

MqDumpC - the class known as dmp or dump is used to export a rbmqmsgque data package as binary …

The dump is used to exchange data with external counterparts such as a database or a user-specific infrastructure.

There are 3 different function that deal with a dump:

1. The MqDumpExport export the read-data-package from the calling context to a dump.
2. The MqDumpImport imports the dump into the read-data-package of the calling context. All MqContextC READ API functions can be used to read the data from the read-data-package.
3. The MqProxyForward imports the dump into the send-data-package of the calling context. All MqContextC SEND API functions can be used to write the data into the send-data-package

See also

MqContextC PROXY API
