MqDumpS Struct Reference

MqDumpC - the class known as dmp or dump is used to export a jvmqmsgque data package as binary … More...

#include <LibMqMsgque_mq.h>

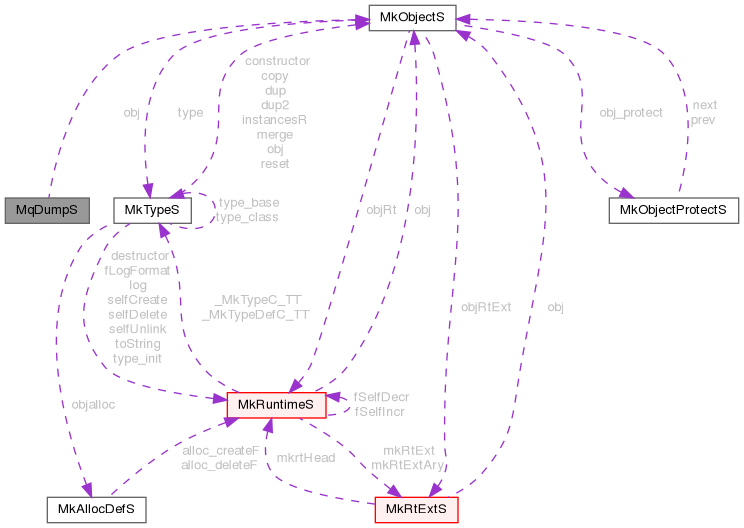

Collaboration diagram for MqDumpS:

Public Attributes
union {
struct MkObjectS   obj
}	super
MK_BINN	dummy []

Detailed Description

MqDumpC - the class known as dmp or dump is used to export a jvmqmsgque data package as binary …

The dump is used to exchange data with external counterparts such as a database or a user-specific infrastructure.

There are 3 different function that deal with a dump:

1. The MqDumpExport export the read-data-package from the calling context to a dump.
2. The MqDumpImport imports the dump into the read-data-package of the calling context. All MqContextC READ API functions can be used to read the data from the read-data-package.
3. The MqProxyForward imports the dump into the send-data-package of the calling context. All MqContextC SEND API functions can be used to write the data into the send-data-package

See also

MqContextC PROXY API

Definition at line 8661 of file LibMqMsgque_mq.h.

Member Data Documentation

dummy

MK_BINN MqDumpS::dummy[]

Definition at line 8671 of file LibMqMsgque_mq.h.

obj

struct MkObjectS MqDumpS::obj

Definition at line 8665 of file LibMqMsgque_mq.h.

[union]

union { ... } MqDumpS::super

---

The documentation for this struct was generated from the following file:

• LibMqMsgque_mq.h
