MqMsgque_CS_API

MqMsgque PACKAGE - the package is the toplevel structure of the csmqmsgque … More...

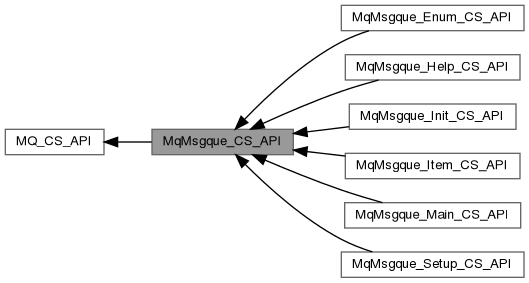

Collaboration diagram for MqMsgque_CS_API:

Topics
	MqMsgque_Main_CS_API
	MqMsgque PACKAGE - the package-main is a single piece of code evaluated only once at application startup …
	MqMsgque_Init_CS_API
	MqMsgque PACKAGE - initialize the MqContextC startup and/or external-object-link …
	MqMsgque_Item_CS_API
	MqMsgque PACKAGE - the package-item is a class-object and must use the MqContextC as the base-class …
	MqMsgque_Help_CS_API
	MqMsgque PACKAGE - access to a qualified help-message …
	MqMsgque_Enum_CS_API
	MqMsgque PACKAGE - enum definition …
	MqMsgque_Setup_CS_API
	MqMsgque PACKAGE - setup und cleanup the csmqmsgque …

Classes
class	csmqmsgque.MqMsgque
	MqMsgque PACKAGE - the package is the toplevel structure of the csmqmsgque … More...

Detailed Description

MqMsgque PACKAGE - the package is the toplevel structure of the csmqmsgque …

The csmqmsgque package is loaded with:

• using csmqmsgque;

and is a composition of one or more package-item and exact one package-main.

The csmqmsgque package add the following classes into MkObjectC_C_API :

Object	C-Short	Description
MqContextC	MQ_CTX	MqContextC - the class known as ctx or context is the application-handle of the application-server and also the main data-handle …
MqDumpC	MQ_DMP	MqDumpC - the class known as dmp or dump is used to export a csmqmsgque data package as binary …
MqFactoryC	MQ_FCT	MqFactoryC - the class known as fct or factory is used to provide an interface to create one or more new MqContextC …

The csmqmsgque package add the following types into MkObjectC_C_API :

ABSTRACT: MkTypeSTT (TypeTypeType = type of a TypeType)
|
|- ABSTRACT: MqTypeCtxC_TT (TypeType = type of a Type)
|  |
|  |- MqContextC_T
|
|- ABSTRACT: MkTypeDefSTT (TypeType = type of a Type)
   |
   |- MqFactoryST, MqDumpST
