MqTypeCtxC

MqTypeCtxS - the instance-base for the MqContextC … More...

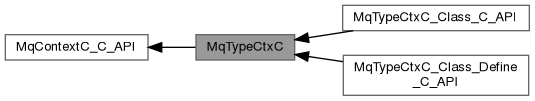

Collaboration diagram for MqTypeCtxC:

Topics
	MqTypeCtxC_Class_C_API
	MqTypeCtxS - define the class …
	MqTypeCtxC_Class_Define_C_API
	MqTypeCtxS - low level definition, access and cast …

Data Structures
struct	MqTypeCtxS
	MqTypeCtxS - the instance-base for the MqContextC … More...

Macros
#define	MqTypeCtxLog_1(typ)

Typedefs
typedef struct MqTypeCtxS *	MQ_CTXT
	object context type datatype, use &XX->type to cast to MK_TYP

Functions
static MQ_CTXT	MqCtxTyp (MK_MNG mng)
	type-check and cast a managed-pointer into an MqTypeCtxS pointer or MK_NULL if not possible
void	MqTypeCtxLog_RT (MK_RT mkrt, MQ_CTXT const ctxtype, MK_OBJN fmtobj, MK_DBG const debug, MK_STRN const callfunc, MK_I32 const lvl)
	log the MqTypeCtxS …

Detailed Description

MqTypeCtxS - the instance-base for the MqContextC …

The MqTypeCtxS is the instance-base for the MqContextC and has all attributes shared with all MqContextC instances.

Macro Definition Documentation

MqTypeCtxLog_1

#define MqTypeCtxLog_1

(

typ

)

Value:

MqTypeCtxLog_RT(MK_RT_CALL typ,NULL,0,__func__,0)

Definition at line 4006 of file LibMqMsgque_mq.h.

Typedef Documentation

MQ_CTXT

typedef struct MqTypeCtxS* MQ_CTXT

object context type datatype, use &XX->type to cast to MK_TYP

Definition at line 749 of file LibMqMsgque_mq.h.

Function Documentation

MqCtxTyp()

static MQ_CTXT MqCtxTyp ( MK_MNG mng )

inlinestatic

type-check and cast a managed-pointer into an MqTypeCtxS pointer or MK_NULL if not possible

Definition at line 3977 of file LibMqMsgque_mq.h.

                                       {
  if (!MkObjCheck(mng)) return NULL;
  MK_OBJ obj = (MK_OBJ) mng;
  if (MqCtxTypCheck(obj)) return (MQ_CTXT)obj;
  MQ_CTXT typ = (MQ_CTXT) obj->type;
  if (MqCtxTypCheck(typ)) return typ;
  return NULL;
}

MqTypeCtxLog_RT()

void MqTypeCtxLog_RT	(	MK_RT	mkrt,
		MQ_CTXT const	ctxtype,
		MK_OBJN	fmtobj,
		MK_DBG const	debug,
		MK_STRN const	callfunc,
		MK_I32 const	lvl )

log the MqTypeCtxS …

Parameters

[in]	mkrt	the MkRuntimeS instance to work on - the runtime argument, used by MK_RT_CALL (C-only)
[in]	ctxtype	the type of a MqContextC
[in]	fmtobj	managed object used to format the log-message (default=MK_NULL → use default-format)
[in]	debug	the debug level from MkRuntimeS::debug, use 0 <= debug <= 9 (default=0)
[in]	callfunc	a user-defined postfix to identify the calling-function or the environment (default = name-of-function, MK_NULL = resolve-own-name)
[in]	lvl	a user-defined prefix starting with "" for lvl=0 and increase with " " for lvl+1 (default=0)

See also

MkObjectC_C_API
