MkBufferStreamC_CS_API

MkBufferStreamC - the abstract class known as bus or stream is a subclass of MkBufferC and is used for package-based-io … More...

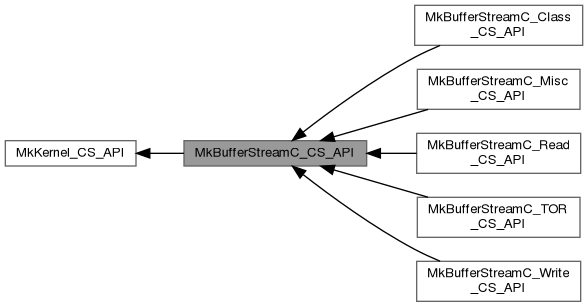

Collaboration diagram for MkBufferStreamC_CS_API:

Topics
	MkBufferStreamC_Class_CS_API
	MkBufferStreamC - define the class …
	MkBufferStreamC_TOR_CS_API
	MkBufferStreamC - various functions to create and destroy a MkBufferStreamC …
	MkBufferStreamC_Write_CS_API
	MkBufferStreamC - various functions to write into a MkBufferStreamS …
	MkBufferStreamC_Read_CS_API
	MkBufferStreamC - various functions to 'read' data from a MkBufferStreamS …
	MkBufferStreamC_Misc_CS_API
	MkBufferStreamC - various functions to create and destroy a MkBufferStreamS …

Classes
class	csmkkernel.MkBufferStreamC
	MkBufferStreamC - the abstract class known as bus or stream is a subclass of MkBufferC and is used for package-based-io … More...

Detailed Description

MkBufferStreamC - the abstract class known as bus or stream is a subclass of MkBufferC and is used for package-based-io …

The MkBufferStreamC is required to send data via a socket (pipe,tcp,uds,...). The data is organized as a continuous binary-array. Each item is preceded by type and, if applicable, size information.

‍See also: MkBufferC, MkBufferListC

C-Kernel-Details

The ABSTRACT-CLASS MkBufferStreamS has the private-parent-class MkBufferS and is used to store typed-data in a continuous binary-array at MkBufferS::storage.

private-parent-class mean:

MkBufferStreamS use the features of MkBufferS but does not expose the API

In addition to the binary-array the MkBufferStreamS also include features like:

1. the encoding: MkBufferStreamS::endian_is_wrong
2. the total number of items: MkBufferStreamS::numItems
3. current position pointer: MkBufferStreamS::cur
4. support for recursion: embedding a MkBufferStreamS into a MkBufferStreamS

The MkBufferStreamS inherits the following features from MkBufferS:

1. the storage: MkBufferS::storage
2. the type: MkBufferS::type
3. the ILS: MkBufferS::ils

The ABSTRACT-CLASS MkBufferStreamS is missing the ILS-storage, the FINAL-CLASSES are:

‍MkBufferStream16384S, MkBufferStream256S, MkBufferStream64S and MkBufferStream1024S

See also

MkBufferC, MkBufferListC
