MkLogFileC_CC_API

MkLogFileC - the class known as lfl or log-file is used to control the target of the logging-output … More...

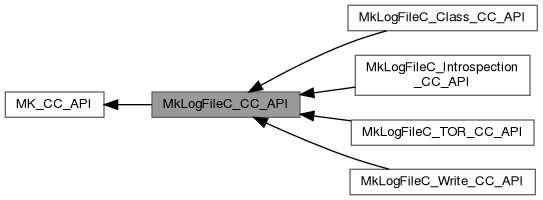

Collaboration diagram for MkLogFileC_CC_API:

Topics
	MkLogFileC_TOR_CC_API
	MkLogFileC - various functions to 'create and delete' a MkLogFileS …
	MkLogFileC_Write_CC_API
	MkLogFileC - various functions to 'write' into a MkLogFileS …
	MkLogFileC_Introspection_CC_API
	MkLogFileC_Class_CC_API
	MkLogFileC - define the class …

Classes
struct	ccmkkernel::MkLogFileC_A
	define a MkLogFileC object … → C-API: libmkkernel::MkLogFileS More...
class	ccmkkernel::MkLogFileC
	define a MkLogFileC object … → C-API: libmkkernel::MkLogFileS More...

Functions
	ccmkkernel::MkLogFileC::MkLogFileC (MK_LFL hdl)
static MkLogFileC *	ccmkkernel::MkLogFileC::MkLogFileC_ObjNew (MK_RT_ARGS MK_LFL hdl)
	return MkLogFileC from LibMsgqueObject
MK_LFL	ccmkkernel::MkLogFileC::getLFL () const
	return the LibMsgqueObject from current MkLogFileC instance
MK_LFL	ccmkkernel::MkLogFileC::getLFL__null_allow () const
	return the LibMsgqueObject from current MkLogFileC instance
MK_LFLN	ccmkkernel::MkLogFileC::getLFLN () const
	(const) return the LibMsgqueObject from current MkLogFileC instance
MK_LFLN	ccmkkernel::MkLogFileC::getLFLN__null_allow () const
	(const) return the LibMsgqueObject from current MkLogFileC instance
static MK_LFL	ccmkkernel::MkLogFileC::getLFL (MkLogFileC *clsHdl)
	return LibMsgqueObject from current MkLogFileC pointer
static MK_LFL	ccmkkernel::MkLogFileC::getLFL__null_allow (MkLogFileC *clsHdl)
	return LibMsgqueObject from current MkLogFileC pointer
static MK_LFLN	ccmkkernel::MkLogFileC::getLFLN (const MkLogFileC *clsHdl)
	(const) return LibMsgqueObject from current MkLogFileC pointer
static MK_LFLN	ccmkkernel::MkLogFileC::getLFLN__null_allow (const MkLogFileC *clsHdl)
	(const) return LibMsgqueObject from current MkLogFileC pointer
static MK_LFL	ccmkkernel::MkLogFileC::getLFL (const MkLogFileC &clsHdl)
	return LibMsgqueObject from current MkLogFileC reference
static MK_LFL	ccmkkernel::MkLogFileC::getLFL__null_allow (const MkLogFileC &clsHdl)
	return LibMsgqueObject from current MkLogFileC reference
static MK_LFLN	ccmkkernel::MkLogFileC::getLFLN (const MkLogFileC &clsHdl)
	(const) return LibMsgqueObject from current MkLogFileC reference
static MK_LFLN	ccmkkernel::MkLogFileC::getLFLN__null_allow (const MkLogFileC &clsHdl)
	(const) return LibMsgqueObject from current MkLogFileC reference
bool	ccmkkernel::MkLogFileC::Check () const
	check if pointer is still valid

Variables
static thread_local MkLogFileC	ccmkkernel::MkLogFileC::MK_NULL_REF = {(MK_OBJ)0}

Detailed Description

MkLogFileC - the class known as lfl or log-file is used to control the target of the logging-output …

The logging-target is set direct by RuntimeLogTargetSet or using the class MkLogFileC.

The target is stored at the MkRuntimeC using a FILE-stream and can be set individually for each thread. The default is stderr.

• the handle is stored at MkLogDataS::logFILE
• the filename (if available) is stored at MkRuntimeS::log

possible values are:

value	decription	OS man-page
stdout	the standart output	stdio(3)
stderr	the standart error output	stdio(3)
fileName	an arbitary fileName	fopen(3)

Function Documentation

Check()

bool ccmkkernel::MkLogFileC::Check ( ) const

inline

check if pointer is still valid

Definition at line 152 of file MkLogFileC_cc.hh.

                         {
        return (hdl && MkLflCheck(hdl));
      };

getLFL() [1/3]

MK_LFL ccmkkernel::MkLogFileC::getLFL ( ) const

inline

return the LibMsgqueObject from current MkLogFileC instance

Definition at line 84 of file MkLogFileC_cc.hh.

                            {
        MK_LFL ret = reinterpret_cast<MK_LFL>(hdl);
        if (unlikely(ret == NULL)) InstHdlIsNullError();
        return ret;
      };

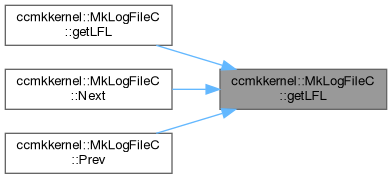

Here is the caller graph for this function:

getLFL() [2/3]

static MK_LFL ccmkkernel::MkLogFileC::getLFL ( const MkLogFileC & clsHdl )

inlinestatic

return LibMsgqueObject from current MkLogFileC reference

Definition at line 132 of file MkLogFileC_cc.hh.

                                                     {
        return clsHdl.getLFL();
      };

getLFL() [3/3]

static MK_LFL ccmkkernel::MkLogFileC::getLFL ( MkLogFileC * clsHdl )

inlinestatic

return LibMsgqueObject from current MkLogFileC pointer

Definition at line 108 of file MkLogFileC_cc.hh.

                                               {
        MK_LFL ret = clsHdl ? reinterpret_cast<MK_LFL>(clsHdl->hdl) : NULL;
        if (unlikely(ret == NULL)) ClassHdlIsNullError(MkLogFileC);
        return ret;
      };

getLFL__null_allow() [1/3]

MK_LFL ccmkkernel::MkLogFileC::getLFL__null_allow ( ) const

inline

return the LibMsgqueObject from current MkLogFileC instance

Definition at line 91 of file MkLogFileC_cc.hh.

                                        {
        return reinterpret_cast<MK_LFL>(hdl);
      };

Here is the caller graph for this function:

getLFL__null_allow() [2/3]

static MK_LFL ccmkkernel::MkLogFileC::getLFL__null_allow ( const MkLogFileC & clsHdl )

inlinestatic

return LibMsgqueObject from current MkLogFileC reference

Definition at line 137 of file MkLogFileC_cc.hh.

                                                                 {
        return clsHdl.getLFL__null_allow();
      };

getLFL__null_allow() [3/3]

static MK_LFL ccmkkernel::MkLogFileC::getLFL__null_allow ( MkLogFileC * clsHdl )

inlinestatic

return LibMsgqueObject from current MkLogFileC pointer

Definition at line 115 of file MkLogFileC_cc.hh.

                                                           {
        return clsHdl ? reinterpret_cast<MK_LFL>(clsHdl->hdl) : NULL;
      };

getLFLN() [1/3]

MK_LFLN ccmkkernel::MkLogFileC::getLFLN ( ) const

inline

(const) return the LibMsgqueObject from current MkLogFileC instance

Definition at line 96 of file MkLogFileC_cc.hh.

                              {
        MK_LFLN ret = reinterpret_cast<MK_LFLN>(hdl);
        if (unlikely(ret == NULL)) InstHdlIsNullError();
        return ret;
      };

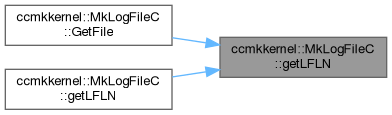

Here is the caller graph for this function:

getLFLN() [2/3]

static MK_LFLN ccmkkernel::MkLogFileC::getLFLN ( const MkLogFileC & clsHdl )

inlinestatic

(const) return LibMsgqueObject from current MkLogFileC reference

Definition at line 142 of file MkLogFileC_cc.hh.

                                                       {
        return clsHdl.getLFLN();
      };

getLFLN() [3/3]

static MK_LFLN ccmkkernel::MkLogFileC::getLFLN ( const MkLogFileC * clsHdl )

inlinestatic

(const) return LibMsgqueObject from current MkLogFileC pointer

Definition at line 120 of file MkLogFileC_cc.hh.

                                                       {
        MK_LFLN ret = clsHdl ? reinterpret_cast<MK_LFLN>(clsHdl->hdl) : NULL;
        if (unlikely(ret == NULL)) ClassHdlIsNullError(MkLogFileC);
        return ret;
      };

getLFLN__null_allow() [1/3]

MK_LFLN ccmkkernel::MkLogFileC::getLFLN__null_allow ( ) const

inline

(const) return the LibMsgqueObject from current MkLogFileC instance

Definition at line 103 of file MkLogFileC_cc.hh.

                                          {
        return reinterpret_cast<MK_LFLN>(hdl);
      };

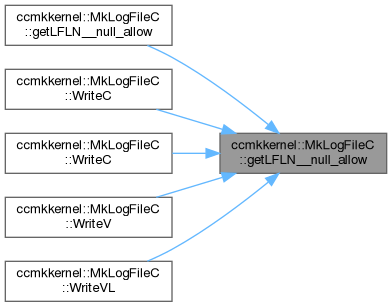

Here is the caller graph for this function:

getLFLN__null_allow() [2/3]

static MK_LFLN ccmkkernel::MkLogFileC::getLFLN__null_allow ( const MkLogFileC & clsHdl )

inlinestatic

(const) return LibMsgqueObject from current MkLogFileC reference

Definition at line 147 of file MkLogFileC_cc.hh.

                                                                   {
        return clsHdl.getLFLN__null_allow();
      };

getLFLN__null_allow() [3/3]

static MK_LFLN ccmkkernel::MkLogFileC::getLFLN__null_allow ( const MkLogFileC * clsHdl )

inlinestatic

(const) return LibMsgqueObject from current MkLogFileC pointer

Definition at line 127 of file MkLogFileC_cc.hh.

                                                                   {
        return clsHdl ? reinterpret_cast<MK_LFLN>(clsHdl->hdl) : NULL;
      };

MkLogFileC()

ccmkkernel::MkLogFileC::MkLogFileC ( MK_LFL hdl )

inline

Definition at line 75 of file MkLogFileC_cc.hh.

: MkObjectC(MkLogFileC_X2obj(hdl)) {};

MkLogFileC_ObjNew()

static MkLogFileC * ccmkkernel::MkLogFileC::MkLogFileC_ObjNew ( MK_RT_ARGS MK_LFL hdl )

inlinestatic

return MkLogFileC from LibMsgqueObject

Definition at line 79 of file MkLogFileC_cc.hh.

                                                                   {
        return (hdl ? static_cast<MkLogFileC*>(MkObjectC::atomObjNew(MK_RT_CALL MkLogFileC_X2obj(hdl))) : &MK_NULL_REF);
      }

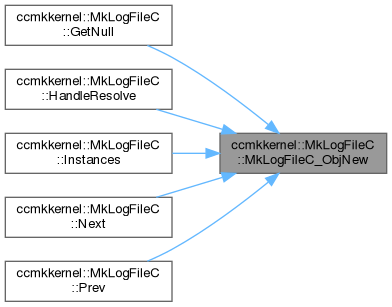

Here is the caller graph for this function:

Variable Documentation

MK_NULL_REF

thread_local MkLogFileC ccmkkernel::MkLogFileC::MK_NULL_REF = {(MK_OBJ)0}

static

Definition at line 36 of file MkLogFileC_cc.hh.
