Interface between libmkkernel and the Operating-System … More...

#include <LibMkKernel_mk.h>

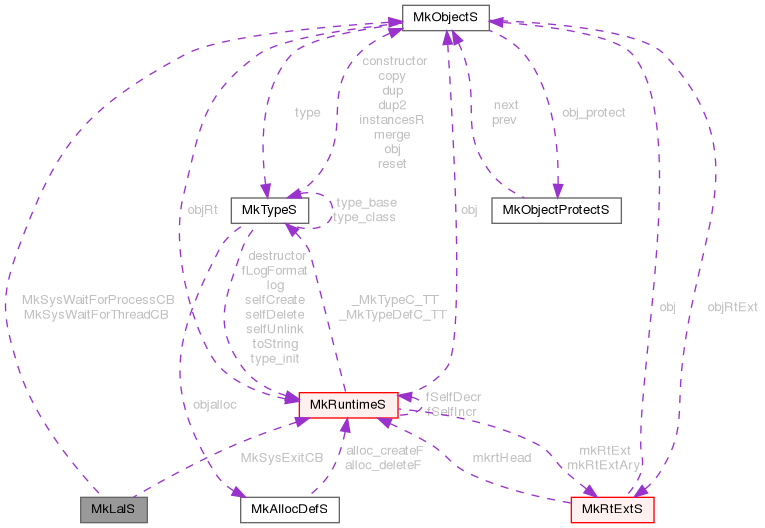

Collaboration diagram for MkLalS:

Data Fields
MkSysCallocF	SysCalloc
	calloc syscall …

MkSysMallocF	SysMalloc
	malloc syscall …

MkSysReallocF	SysRealloc
	realloc syscall …

MkSysStrNDupF	SysStrNDup
	strndup syscall …

MkSysStrDupF	SysStrDup
	strdup syscall …

MkSysStrNCpyF	SysStrNCpy
	strdup strncpy …

MkSysFreeF	SysFree
	free syscall …

MkSysForkF	SysFork
	fork syscall …

MK_PTR	SysForkData

MkSysWaitF	MkSysWaitForProcessCB
	wait for process to finish syscall with libmkkernel error plugin

MkSysWaitF	MkSysWaitForThreadCB
	wait for process to finish syscall with libmkkernel error plugin

enum MkErrorE(*	SysUSleep )(MK_OBJN const obj, unsigned int const usec)
	usleep syscall with libmkkernel error plugin

enum MkErrorE(*	SysSleep )(MK_OBJN const obj, unsigned int const sec)
	sleep syscall with libmkkernel error plugin

enum MkErrorE(*	SysDaemonize )(MK_RT mkrt, MK_OBJN const obj, MK_STRN pidfile)
	demonize the current process and save the resulting PID into the pidfile …

MkSysExitF	MkSysExitCB
	exit syscall with libmkkernel error plugin

void(*	SysAbort )(void)
	abort syscall …

enum MkErrorE(*	SysIgnorSIGCHLD )(MK_RT mkrt, MK_OBJ const obj)

enum MkErrorE(*	SysAllowSIGCHLD )(MK_RT mkrt, MK_OBJ const obj)

Detailed Description

Interface between libmkkernel and the Operating-System …

Definition at line 2469 of file LibMkKernel_mk.h.

Field Documentation

◆ MkSysExitCB

MkSysExitF MkLalS::MkSysExitCB

exit syscall with libmkkernel error plugin

Parameters

[in]	mkrt	the MkRuntimeS instance to work on - the runtime argument, used by MK_RT_CALL (C-only)
[in]	isThread	exit a thread?
[in]	num	exit code

Attention: No MK_NO_RETURN besause the MkSysExit can be an overload with MkLalS::MkSysExitCB

Example:

MK_NO_RETURN static void SysExit (
  MK_RT_ARGS
  int isThread,
  int num
) {
  if (isThread) {
#if META_HAS_THREAD
# if defined(HAVE_PTHREAD)
/*
    int state;
    pthread_attr_t attr;
    pthread_getattr_np(pthread_self(), &attr);
    pthread_attr_getdetachstate(&attr, &state);

    if (state == PTHREAD_CREATE_DETACHED)
      pthread_detach(pthread_self());
*/

    // BUG-FIX-pthread_detach
    // "pthread_detach" disable "pthread_join" an create a "random-crash" in "MkSysWait" called by "pIoDelete"
    pthread_exit(NULL);
# elif defined(META_IS_WINDOWS)
   _endthreadex(num);
# endif
#endif   /* META_HAS_THREAD */
#if 1
  }
  exit(num);
#else
  } else {

Attention: no MK_NO_RETURN besause the MkSysExitF can be an overload with MkLalS::MkSysExitCB

Definition at line 2534 of file LibMkKernel_mk.h.

◆ MkSysWaitForProcessCB

MkSysWaitF MkLalS::MkSysWaitForProcessCB

wait for process to finish syscall with libmkkernel error plugin

Parameters

[in]	fmtobj	managed object used to format the log-message (default=`MK_NULL` → use default-format)
[in]	id	process handle

Returns: The MkErrorE status from the DEFAULT MkErrorC in MkRuntimeS::error_mk

See also: MkSysWaitForProcess, MkSysWaitForThread

Definition at line 2488 of file LibMkKernel_mk.h.

◆ MkSysWaitForThreadCB

MkSysWaitF MkLalS::MkSysWaitForThreadCB

wait for process to finish syscall with libmkkernel error plugin

Parameters

[in]	fmtobj	managed object used to format the log-message (default=`MK_NULL` → use default-format)
[in]	id	process handle

Returns: The MkErrorE status from the DEFAULT MkErrorC in MkRuntimeS::error_mk

See also: MkSysWaitForProcess, MkSysWaitForThread

Definition at line 2490 of file LibMkKernel_mk.h.

◆ SysAbort

void(* MkLalS::SysAbort) (void)

abort syscall …

additional info: man abort

Returns: The MkErrorE status from the DEFAULT MkErrorC in MkRuntimeS::error_mk

Example:

__attribute__((noreturn)) static void SysAbort (void) {
  abort();
}

Definition at line 2544 of file LibMkKernel_mk.h.

◆ SysAllowSIGCHLD

enum MkErrorE(* MkLalS::SysAllowSIGCHLD) (MK_RT mkrt, MK_OBJ const obj)

Definition at line 2544 of file LibMkKernel_mk.h.

◆ SysCalloc

MkSysCallocF MkLalS::SysCalloc

calloc syscall …

additional info: man calloc

Definition at line 2471 of file LibMkKernel_mk.h.

◆ SysDaemonize

enum MkErrorE(* MkLalS::SysDaemonize) (MK_RT mkrt, MK_OBJN const obj, MK_STRN pidfile)

demonize the current process and save the resulting PID into the pidfile …

Parameters

[in]	obj	...
[in]	pidfile	file to save the process identifier, can be used to kill the process later

Returns: The MkErrorE status from the DEFAULT MkErrorC in MkRuntimeS::error_mk

Example:

static enum MkErrorE SysDaemonize (
  MK_RT_ARGS
  MK_OBJN const errobj,
  MK_STRN pidfile
) {
#if defined(META_IS_POSIX) && !defined(__CYGWIN__)
  int fd, fpid;
  struct MkIdS id;

  // step 0 -> open the pidfile
  if ((fpid = open(pidfile, O_WRONLY|O_CREAT|O_TRUNC, S_IRUSR|S_IWUSR|S_IRGRP|S_IROTH)) == -1)
    return MkErrorSysOS (open);

  // step 1 -> delete initial process
  MkErrorCheck(pMkSysFork(MK_RT_CALL errobj, &id));
  if (id.val != 0UL)
    _exit(0);

  // step 2 -> create a new session
  if (setsid() == -1)
    return MkErrorSysOS (setsid);

  // step 3 -> fork the new process, parent write the pid
  MkErrorCheck(pMkSysFork(MK_RT_CALL errobj, &id));
  if (id.val != 0UL) {
    char buf[40];
    int num = snprintf(buf, 40, "%lu", (long unsigned)id.val);
    write(fpid,buf,(size_t)num);
    _exit(0);
  }

  // step 4 -> close the fpid after writing
  if (close(fpid) == -1)
    return MkErrorSys (close);

  // step 5 -> close default io
  fd = open("/dev/null", O_RDONLY);
  if (fd != 0) {
    dup2(fd, 0);
    close(fd);
  }
  fd = open("/dev/null", O_WRONLY);
  if (fd != 1) {
    dup2(fd, 1);
    close(fd);
  }
  fd = open("/dev/null", O_WRONLY);
  if (fd != 2) {
    dup2(fd, 2);
    close(fd);
  }

  return MK_OK;
error:
  return MkErrorStack_1M(errobj);
#else
  return MkErrorDbV_1_OS(MK_ERROR_NOT_SUPPORTED, "SysDaemonize");
#endif
}

Definition at line 2490 of file LibMkKernel_mk.h.

◆ SysFork

MkSysForkF MkLalS::SysFork

fork syscall …

additional info: man fork

Returns: the process identifier of the new child (in the parent process) or 0 (in the child process)

Definition at line 2485 of file LibMkKernel_mk.h.

◆ SysForkData

MK_PTR MkLalS::SysForkData

Definition at line 2486 of file LibMkKernel_mk.h.

◆ SysFree

MkSysFreeF MkLalS::SysFree

free syscall …

additional info: man free

Definition at line 2483 of file LibMkKernel_mk.h.

◆ SysIgnorSIGCHLD

enum MkErrorE(* MkLalS::SysIgnorSIGCHLD) (MK_RT mkrt, MK_OBJ const obj)

Definition at line 2544 of file LibMkKernel_mk.h.

◆ SysMalloc

MkSysMallocF MkLalS::SysMalloc

malloc syscall …

additional info: man malloc

Definition at line 2473 of file LibMkKernel_mk.h.

◆ SysRealloc

MkSysReallocF MkLalS::SysRealloc

realloc syscall …

additional info: man realloc

Definition at line 2475 of file LibMkKernel_mk.h.

◆ SysSleep

enum MkErrorE(* MkLalS::SysSleep) (MK_OBJN const obj, unsigned int const sec)

sleep syscall with libmkkernel error plugin

Parameters

[in]	fmtobj	managed object used to format the log-message (default=`MK_NULL` → use default-format)
[in]	sec	the seconds to sleep

Returns: The MkErrorE status from the DEFAULT MkErrorC in MkRuntimeS::error_mk

Example:

static enum MkErrorE SysSleep (
  MK_OBJN const errobj,
  unsigned int const sec
) {
#if defined(META_IS_POSIX)
  if (sleep (sec) != 0) {
    return MkErrorSys (sleep);
  }
#elif defined (META_IS_WINDOWS)
  Sleep (sec * 1000);
#else
#   error not supported
#endif
  return MK_OK;
}

Definition at line 2490 of file LibMkKernel_mk.h.

◆ SysStrDup

MkSysStrDupF MkLalS::SysStrDup

strdup syscall …

additional info: man strdup

Definition at line 2479 of file LibMkKernel_mk.h.

◆ SysStrNCpy

MkSysStrNCpyF MkLalS::SysStrNCpy

strdup strncpy …

additional info: man strncpy

Definition at line 2481 of file LibMkKernel_mk.h.

◆ SysStrNDup

MkSysStrNDupF MkLalS::SysStrNDup

strndup syscall …

additional info: man strndup

Definition at line 2477 of file LibMkKernel_mk.h.

◆ SysUSleep

enum MkErrorE(* MkLalS::SysUSleep) (MK_OBJN const obj, unsigned int const usec)

usleep syscall with libmkkernel error plugin

Parameters

[in]	fmtobj	managed object used to format the log-message (default=`MK_NULL` → use default-format)
[in]	usec	the micro (10^-6) seconds to sleep

Returns: The MkErrorE status from the DEFAULT MkErrorC in MkRuntimeS::error_mk

Example:

static enum MkErrorE SysUSleep (
  MK_OBJN const errobj,
  unsigned int const usec
) {
#if defined(META_IS_POSIX)
  usleep (usec);
#elif defined (META_IS_WINDOWS)
  Sleep ((usec + 500) / 1000);
#else
#   error not supported
#endif
  return MK_OK;
}

static enum MkErrorE SysSleep (
  MK_OBJN const errobj,
  unsigned int const sec
) {
#if defined(META_IS_POSIX)
  if (sleep (sec) != 0) {
    return MkErrorSys (sleep);
  }

Definition at line 2490 of file LibMkKernel_mk.h.

The documentation for this struct was generated from the following file:

LibMkKernel_mk.h
