LcSettingC_Misc_C_API

LcSettingC - various functions to perform misc operations … More...

Collaboration diagram for LcSettingC_Misc_C_API:

Functions
void	liblcconfig::LcSettingLog_RT (MK_RT mkrt, LC_CFSN const setting, MK_OBJN fmtobj, MK_DBG const debug, MK_STRN const callfunc, MK_I32 const lvl)
	log the setting …
static LC_CFS	liblcconfig::LcSettingParent (LC_CFSN setting)
	This function returns the parent setting of the given setting, or NULL if setting is the root setting …
static MK_I32	liblcconfig::LcSettingIndex (LC_CFSN setting)
	This function returns the index of the given setting within its parent setting …
static MK_I32	liblcconfig::LcSettingLength (LC_CFSN setting)
	This function returns the number of settings in a group, or the number of elements in a list or array …
static MK_STRN	liblcconfig::LcSettingName (LC_CFSN setting)
	This function returns the name of the given setting, or NULL if the setting has no name …
static enum MkErrorE	liblcconfig::LcSettingRemove (LC_CFS parent, MK_STRN name)
	This function removes and destroys the setting named name from the parent setting parent, which must be a group …
static enum MkErrorE	liblcconfig::LcSettingRemoveElem (LC_CFS parent, MK_I32 idx)
	This function removes the child setting at the given index index from the setting parent, which must be a group, list, or array …
static MK_STRN	liblcconfig::LcSettingSourceFile (LC_CFSN setting)
	This function returns the name of the file from which the setting setting was read, or NULL if the setting was not read from a file …
static MK_I32	liblcconfig::LcSettingSourceLine (LC_CFSN setting)
	This function returns the line number of the configuration file or stream at which the setting setting was read, or 0 if no line number is available …
static enum LcConfigTypeE	liblcconfig::LcSettingType (LC_CFSN setting)
	This function returns the type of the given setting …
static LC_CFS	liblcconfig::LcSettingAddIfNotExists (LC_CFS setting, MK_STRN name, enum LcConfigTypeE cfgtype)
	addon - add name with type only if not exists in the setting …
static bool	liblcconfig::LcSettingExists (const LC_CFS setting, MK_STRN name)
	addon - return true if name exists in the setting otherwise false …

LcSettingC - LcSettingC_Misc_C_API - overload
#define	LcSettingLog_NULL(...)
#define	LcSettingLog(...)
#define	LcSettingLog_4(setting, fmtobj, debug, callfunc)
#define	LcSettingLog_3(setting, fmtobj, debug)
#define	LcSettingLog_2(setting, fmtobj)
#define	LcSettingLog_1(setting)
#define	LcSettingRemove_E(...)
#define	LcSettingRemove_C(...)
#define	LcSettingRemoveElem_E(...)
#define	LcSettingRemoveElem_C(...)

Detailed Description

LcSettingC - various functions to perform misc operations …

Macro Definition Documentation

LcSettingLog

#define LcSettingLog

(

...

)

Value:

LcSettingLog_RT(MK_RT_CALL __VA_ARGS__)

Definition at line 211 of file config_overload_lc.h.

LcSettingLog_1

#define LcSettingLog_1

(

setting

)

Value:

LcSettingLog(setting,NULL,0,__func__,0)

Definition at line 215 of file config_overload_lc.h.

LcSettingLog_2

#define LcSettingLog_2	(		setting,
			fmtobj )

Value:

LcSettingLog(setting,fmtobj,0,__func__,0)

Definition at line 214 of file config_overload_lc.h.

LcSettingLog_3

#define LcSettingLog_3	(		setting,
			fmtobj,
			debug )

Value:

LcSettingLog(setting,fmtobj,debug,__func__,0)

Definition at line 213 of file config_overload_lc.h.

LcSettingLog_4

#define LcSettingLog_4	(		setting,
			fmtobj,
			debug,
			callfunc )

Value:

LcSettingLog(setting,fmtobj,debug,callfunc,0)

Definition at line 212 of file config_overload_lc.h.

LcSettingLog_NULL

#define LcSettingLog_NULL

(

...

)

Value:

LcSettingLog_RT(MK_RT_CALL_NULL __VA_ARGS__)

Definition at line 210 of file config_overload_lc.h.

LcSettingRemove_C

#define LcSettingRemove_C

(

...

)

Value:

if (MkErrorCheckI(LcSettingRemove(__VA_ARGS__)))

Definition at line 217 of file config_overload_lc.h.

LcSettingRemove_E

#define LcSettingRemove_E

(

...

)

Value:

MkErrorCheck(LcSettingRemove(__VA_ARGS__))

Definition at line 216 of file config_overload_lc.h.

LcSettingRemoveElem_C

#define LcSettingRemoveElem_C

(

...

)

Value:

if (MkErrorCheckI(LcSettingRemoveElem(__VA_ARGS__)))

Definition at line 219 of file config_overload_lc.h.

LcSettingRemoveElem_E

#define LcSettingRemoveElem_E

(

...

)

Value:

MkErrorCheck(LcSettingRemoveElem(__VA_ARGS__))

Definition at line 218 of file config_overload_lc.h.

Function Documentation

LcSettingAddIfNotExists()

static LC_CFS liblcconfig::LcSettingAddIfNotExists ( LC_CFS setting, MK_STRN name, enum LcConfigTypeE cfgtype )

inlinestatic

addon - add name with type only if not exists in the setting …

If parent is an array or list, the name parameter is ignored and may be NULL.

The function returns the new setting on success, or NULL if parent is not a group, array, or list; or if there is already a child setting of parent named name; or if type is invalid. If type is a scalar type, the new setting will have a default value of 0, 0.0, false, or NULL, as appropriate.

Definition at line 474 of file LcSettingC_lc.h.

  {
  config_setting_t* mbr = config_setting_get_member(setting->nat,name);
  if (mbr == NULL) {
   mbr = config_setting_add ( setting->nat, name, cfgtype );
  }
  return LcSettingC_ObjNew(mbr);
}

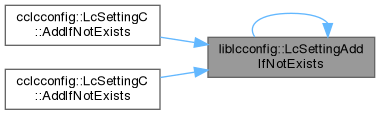

Here is the caller graph for this function:

LcSettingExists()

static bool liblcconfig::LcSettingExists ( const LC_CFS setting, MK_STRN name )

inlinestatic

addon - return true if name exists in the setting otherwise false …

Same as LcSettingGetMember but only test on exists

Definition at line 499 of file LcSettingC_lc.h.

  {
  return config_setting_get_member(setting->nat,name) != NULL;
}

Here is the caller graph for this function:

LcSettingIndex()

static MK_I32 liblcconfig::LcSettingIndex ( LC_CFSN setting )

inlinestatic

This function returns the index of the given setting within its parent setting …

If setting is the root setting, this function returns -1.

Definition at line 293 of file LcSettingC_lc.h.

                                                    {
    LC_INSTANCE_HDL(setting);
    return config_setting_index(setting->nat);
  }

Here is the caller graph for this function:

LcSettingLength()

static MK_I32 liblcconfig::LcSettingLength ( LC_CFSN setting )

inlinestatic

This function returns the number of settings in a group, or the number of elements in a list or array …

For other types of settings, it returns 0.

Definition at line 299 of file LcSettingC_lc.h.

                                                     {
    LC_INSTANCE_HDL(setting);
    return config_setting_length(setting->nat);
  }

Here is the caller graph for this function:

LcSettingLog_RT()

void liblcconfig::LcSettingLog_RT	(	MK_RT	mkrt,
		LC_CFSN const	setting,
		MK_OBJN	fmtobj,
		MK_DBG const	debug,
		MK_STRN const	callfunc,
		MK_I32 const	lvl )

log the setting …

Parameters

[in]	mkrt	the MkRuntimeS instance to work on - the runtime argument, used by MK_RT_CALL (C-only)
[in]	setting	same as config_setting_t
[in]	fmtobj	managed object used to format the log-message (default=MK_NULL → use default-format)
[in]	debug	the debug level from MkRuntimeS::debug, use 0 <= debug <= 9 (default=0)
[in]	callfunc	a user-defined postfix to identify the calling-function or the environment (default = name-of-function, MK_NULL = resolve-own-name)
[in]	lvl	a user-defined prefix starting with "" for lvl=0 and increase with " " for lvl+1 (default=0)

LcSettingName()

static MK_STRN liblcconfig::LcSettingName ( LC_CFSN setting )

inlinestatic

This function returns the name of the given setting, or NULL if the setting has no name …

Storage for the returned string is managed by the library and released automatically when the setting is destroyed; the string must not be freed by the caller.

Definition at line 305 of file LcSettingC_lc.h.

                                                    {
    LC_INSTANCE_HDL(setting);
    MK_STRN __retVal__L = config_setting_name(setting->nat);
    return __retVal__L;
  }

Here is the caller graph for this function:

LcSettingParent()

static LC_CFS liblcconfig::LcSettingParent ( LC_CFSN setting )

inlinestatic

This function returns the parent setting of the given setting, or NULL if setting is the root setting …

Definition at line 285 of file LcSettingC_lc.h.

                                                     {
    LC_INSTANCE_HDL(setting);
    return LcSettingC_ObjNew(config_setting_parent(setting->nat));
  }

Here is the caller graph for this function:

LcSettingRemove()

static enum MkErrorE liblcconfig::LcSettingRemove ( LC_CFS parent, MK_STRN name )

inlinestatic

This function removes and destroys the setting named name from the parent setting parent, which must be a group …

Any child settings of the setting are recursively destroyed as well.

The name parameter can also specify a setting path relative to the provided parent. (In that case, the setting will be looked up and removed.)

The function returns CONFIG_TRUE on success. If parent is not a group, or if it has no setting with the given name, it returns CONFIG_FALSE.

Definition at line 312 of file LcSettingC_lc.h.

                                                                        {
    LC_INSTANCE_HDL(parent);
    enum LcErrorE errVal = (enum LcErrorE)config_setting_remove(parent->nat, name);
    LcErrorE_Check(parent, errVal);
    return MK_OK;
  error:
    return MK_ERROR;
  }

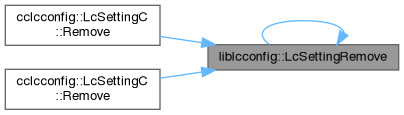

Here is the caller graph for this function:

LcSettingRemoveElem()

static enum MkErrorE liblcconfig::LcSettingRemoveElem ( LC_CFS parent, MK_I32 idx )

inlinestatic

This function removes the child setting at the given index index from the setting parent, which must be a group, list, or array …

Any child settings of the removed setting are recursively destroyed as well.

The function returns CONFIG_TRUE on success. If parent is not a group, list, or array, or if index is out of range, it returns CONFIG_FALSE.

Definition at line 322 of file LcSettingC_lc.h.

                                                                          {
    LC_INSTANCE_HDL(parent);
    enum LcErrorE errVal = (enum LcErrorE)config_setting_remove_elem(parent->nat, (MK_U32)idx);
    LcErrorE_Check(parent, errVal);
    return MK_OK;
  error:
    return MK_ERROR;
  }

Here is the caller graph for this function:

LcSettingSourceFile()

static MK_STRN liblcconfig::LcSettingSourceFile ( LC_CFSN setting )

inlinestatic

This function returns the name of the file from which the setting setting was read, or NULL if the setting was not read from a file …

This information is useful for reporting application-level errors. Storage for the returned string is managed by the library and released automatically when the configuration is destroyed; the string must not be freed by the caller.

Definition at line 332 of file LcSettingC_lc.h.

                                                          {
    LC_INSTANCE_HDL(setting);
    MK_STRN __retVal__L = config_setting_source_file(setting->nat);
    return __retVal__L;
  }

Here is the caller graph for this function:

LcSettingSourceLine()

static MK_I32 liblcconfig::LcSettingSourceLine ( LC_CFSN setting )

inlinestatic

This function returns the line number of the configuration file or stream at which the setting setting was read, or 0 if no line number is available …

This information is useful for reporting application-level errors.

Definition at line 339 of file LcSettingC_lc.h.

                                                         {
    LC_INSTANCE_HDL(setting);
    return (MK_I32)config_setting_source_line(setting->nat);
  }

Here is the caller graph for this function:

LcSettingType()

static enum LcConfigTypeE liblcconfig::LcSettingType ( LC_CFSN setting )

inlinestatic

This function returns the type of the given setting …

The return value is one of the constants CONFIG_TYPE_INT, CONFIG_TYPE_INT64, CONFIG_TYPE_FLOAT, CONFIG_TYPE_STRING, CONFIG_TYPE_BOOL, CONFIG_TYPE_ARRAY, CONFIG_TYPE_LIST, or CONFIG_TYPE_GROUP.

Definition at line 345 of file LcSettingC_lc.h.

                                                               {
    LC_INSTANCE_HDL(setting);
    return (enum LcConfigTypeE)config_setting_type(setting->nat);
  }

Here is the caller graph for this function:
