LcSettingC_CC_API

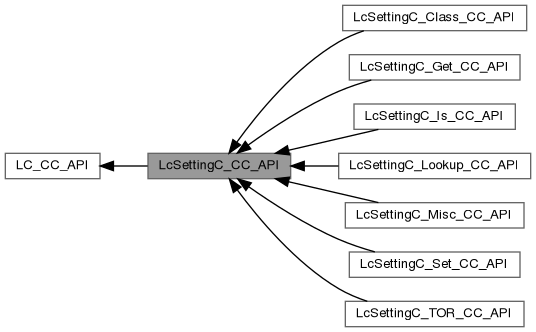

Collaboration diagram for LcSettingC_CC_API:

Topics
	LcSettingC_Class_CC_API
	LcSettingC - define the class …
	LcSettingC_TOR_CC_API
	LcSettingC - various functions to create, initialize and destroy …
	LcSettingC_Get_CC_API
	LcSettingC - various functions to get data from a setting …
	LcSettingC_Set_CC_API
	LcSettingC - various functions to set date into a setting …
	LcSettingC_Lookup_CC_API
	LcSettingC - various functions to lookup a setting …
	LcSettingC_Is_CC_API
	LcSettingC - various functions to check a setting …
	LcSettingC_Misc_CC_API
	LcSettingC - various functions to perform misc operations …

Classes
struct	cclcconfig::LcSettingC_A
	Struct to represent the data from the LcSettingC … → C-API: liblcconfig::LcSettingS More...
class	cclcconfig::LcSettingC
	Struct to represent the data from the LcSettingC … → C-API: liblcconfig::LcSettingS More...

Functions
	cclcconfig::LcSettingC::LcSettingC (LC_CFS hdl)
static LcSettingC *	cclcconfig::LcSettingC::LcSettingC_ObjNew (MK_RT_ARGS LC_CFS hdl)
	return LcSettingC from LibMsgqueObject
LC_CFS	cclcconfig::LcSettingC::getCFS () const
	return the LibMsgqueObject from current LcSettingC instance
LC_CFS	cclcconfig::LcSettingC::getCFS__null_allow () const
	return the LibMsgqueObject from current LcSettingC instance
LC_CFSN	cclcconfig::LcSettingC::getCFSN () const
	(const) return the LibMsgqueObject from current LcSettingC instance
LC_CFSN	cclcconfig::LcSettingC::getCFSN__null_allow () const
	(const) return the LibMsgqueObject from current LcSettingC instance
static LC_CFS	cclcconfig::LcSettingC::getCFS (LcSettingC *clsHdl)
	return LibMsgqueObject from current LcSettingC pointer
static LC_CFS	cclcconfig::LcSettingC::getCFS__null_allow (LcSettingC *clsHdl)
	return LibMsgqueObject from current LcSettingC pointer
static LC_CFSN	cclcconfig::LcSettingC::getCFSN (const LcSettingC *clsHdl)
	(const) return LibMsgqueObject from current LcSettingC pointer
static LC_CFSN	cclcconfig::LcSettingC::getCFSN__null_allow (const LcSettingC *clsHdl)
	(const) return LibMsgqueObject from current LcSettingC pointer
static LC_CFS	cclcconfig::LcSettingC::getCFS (const LcSettingC &clsHdl)
	return LibMsgqueObject from current LcSettingC reference
static LC_CFS	cclcconfig::LcSettingC::getCFS__null_allow (const LcSettingC &clsHdl)
	return LibMsgqueObject from current LcSettingC reference
static LC_CFSN	cclcconfig::LcSettingC::getCFSN (const LcSettingC &clsHdl)
	(const) return LibMsgqueObject from current LcSettingC reference
static LC_CFSN	cclcconfig::LcSettingC::getCFSN__null_allow (const LcSettingC &clsHdl)
	(const) return LibMsgqueObject from current LcSettingC reference
bool	cclcconfig::LcSettingC::Check () const
	check if pointer is still valid

Variables
static thread_local LcSettingC	cclcconfig::LcSettingC::MK_NULL_REF = {(MK_OBJ)0}

Detailed Description

Function Documentation

Check()

bool cclcconfig::LcSettingC::Check ( ) const

inline

check if pointer is still valid

Definition at line 152 of file LcSettingC_cc.hh.

                         {
        return (hdl && LcCfsCheck(hdl));
      };

getCFS() [1/3]

LC_CFS cclcconfig::LcSettingC::getCFS ( ) const

inline

return the LibMsgqueObject from current LcSettingC instance

Definition at line 84 of file LcSettingC_cc.hh.

                            {
        LC_CFS ret = reinterpret_cast<LC_CFS>(hdl);
        if (unlikely(ret == NULL)) InstHdlIsNullError();
        return ret;
      };

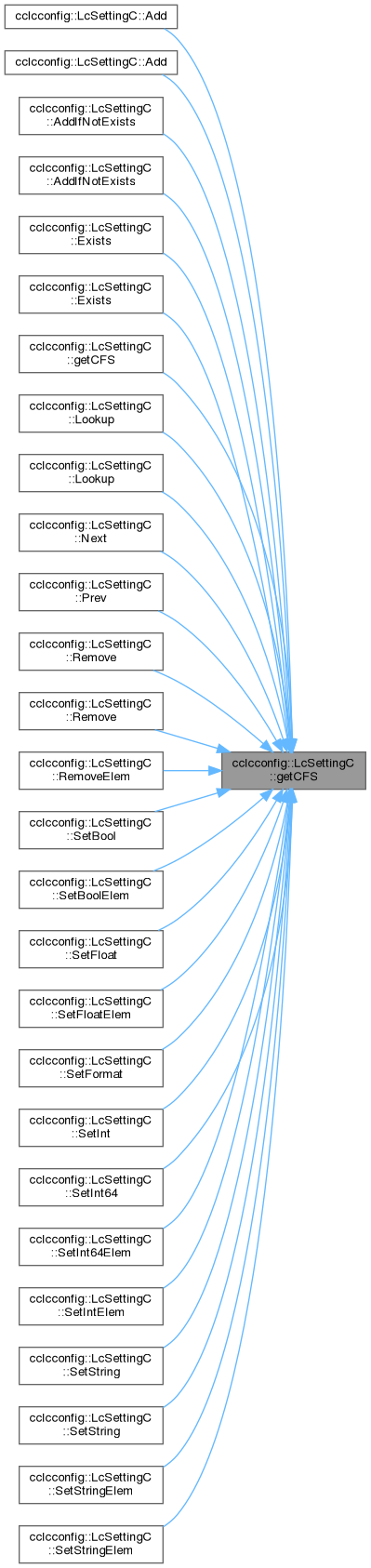

Here is the caller graph for this function:

getCFS() [2/3]

static LC_CFS cclcconfig::LcSettingC::getCFS ( const LcSettingC & clsHdl )

inlinestatic

return LibMsgqueObject from current LcSettingC reference

Definition at line 132 of file LcSettingC_cc.hh.

                                                     {
        return clsHdl.getCFS();
      };

getCFS() [3/3]

static LC_CFS cclcconfig::LcSettingC::getCFS ( LcSettingC * clsHdl )

inlinestatic

return LibMsgqueObject from current LcSettingC pointer

Definition at line 108 of file LcSettingC_cc.hh.

                                               {
        LC_CFS ret = clsHdl ? reinterpret_cast<LC_CFS>(clsHdl->hdl) : NULL;
        if (unlikely(ret == NULL)) ClassHdlIsNullError(LcSettingC);
        return ret;
      };

getCFS__null_allow() [1/3]

LC_CFS cclcconfig::LcSettingC::getCFS__null_allow ( ) const

inline

return the LibMsgqueObject from current LcSettingC instance

Definition at line 91 of file LcSettingC_cc.hh.

                                        {
        return reinterpret_cast<LC_CFS>(hdl);
      };

Here is the caller graph for this function:

getCFS__null_allow() [2/3]

static LC_CFS cclcconfig::LcSettingC::getCFS__null_allow ( const LcSettingC & clsHdl )

inlinestatic

return LibMsgqueObject from current LcSettingC reference

Definition at line 137 of file LcSettingC_cc.hh.

                                                                 {
        return clsHdl.getCFS__null_allow();
      };

getCFS__null_allow() [3/3]

static LC_CFS cclcconfig::LcSettingC::getCFS__null_allow ( LcSettingC * clsHdl )

inlinestatic

return LibMsgqueObject from current LcSettingC pointer

Definition at line 115 of file LcSettingC_cc.hh.

                                                           {
        return clsHdl ? reinterpret_cast<LC_CFS>(clsHdl->hdl) : NULL;
      };

getCFSN() [1/3]

LC_CFSN cclcconfig::LcSettingC::getCFSN ( ) const

inline

(const) return the LibMsgqueObject from current LcSettingC instance

Definition at line 96 of file LcSettingC_cc.hh.

                              {
        LC_CFSN ret = reinterpret_cast<LC_CFSN>(hdl);
        if (unlikely(ret == NULL)) InstHdlIsNullError();
        return ret;
      };

Here is the caller graph for this function:

getCFSN() [2/3]

static LC_CFSN cclcconfig::LcSettingC::getCFSN ( const LcSettingC & clsHdl )

inlinestatic

(const) return LibMsgqueObject from current LcSettingC reference

Definition at line 142 of file LcSettingC_cc.hh.

                                                       {
        return clsHdl.getCFSN();
      };

getCFSN() [3/3]

static LC_CFSN cclcconfig::LcSettingC::getCFSN ( const LcSettingC * clsHdl )

inlinestatic

(const) return LibMsgqueObject from current LcSettingC pointer

Definition at line 120 of file LcSettingC_cc.hh.

                                                       {
        LC_CFSN ret = clsHdl ? reinterpret_cast<LC_CFSN>(clsHdl->hdl) : NULL;
        if (unlikely(ret == NULL)) ClassHdlIsNullError(LcSettingC);
        return ret;
      };

getCFSN__null_allow() [1/3]

LC_CFSN cclcconfig::LcSettingC::getCFSN__null_allow ( ) const

inline

(const) return the LibMsgqueObject from current LcSettingC instance

Definition at line 103 of file LcSettingC_cc.hh.

                                          {
        return reinterpret_cast<LC_CFSN>(hdl);
      };

Here is the caller graph for this function:

getCFSN__null_allow() [2/3]

static LC_CFSN cclcconfig::LcSettingC::getCFSN__null_allow ( const LcSettingC & clsHdl )

inlinestatic

(const) return LibMsgqueObject from current LcSettingC reference

Definition at line 147 of file LcSettingC_cc.hh.

                                                                   {
        return clsHdl.getCFSN__null_allow();
      };

getCFSN__null_allow() [3/3]

static LC_CFSN cclcconfig::LcSettingC::getCFSN__null_allow ( const LcSettingC * clsHdl )

inlinestatic

(const) return LibMsgqueObject from current LcSettingC pointer

Definition at line 127 of file LcSettingC_cc.hh.

                                                                   {
        return clsHdl ? reinterpret_cast<LC_CFSN>(clsHdl->hdl) : NULL;
      };

LcSettingC()

cclcconfig::LcSettingC::LcSettingC ( LC_CFS hdl )

inline

Definition at line 75 of file LcSettingC_cc.hh.

: MkObjectC(LcSettingC_X2obj(hdl)) {};

LcSettingC_ObjNew()

static LcSettingC * cclcconfig::LcSettingC::LcSettingC_ObjNew ( MK_RT_ARGS LC_CFS hdl )

inlinestatic

return LcSettingC from LibMsgqueObject

Definition at line 79 of file LcSettingC_cc.hh.

                                                                   {
        return (hdl ? static_cast<LcSettingC*>(MkObjectC::atomObjNew(MK_RT_CALL LcSettingC_X2obj(hdl))) : &MK_NULL_REF);
      }

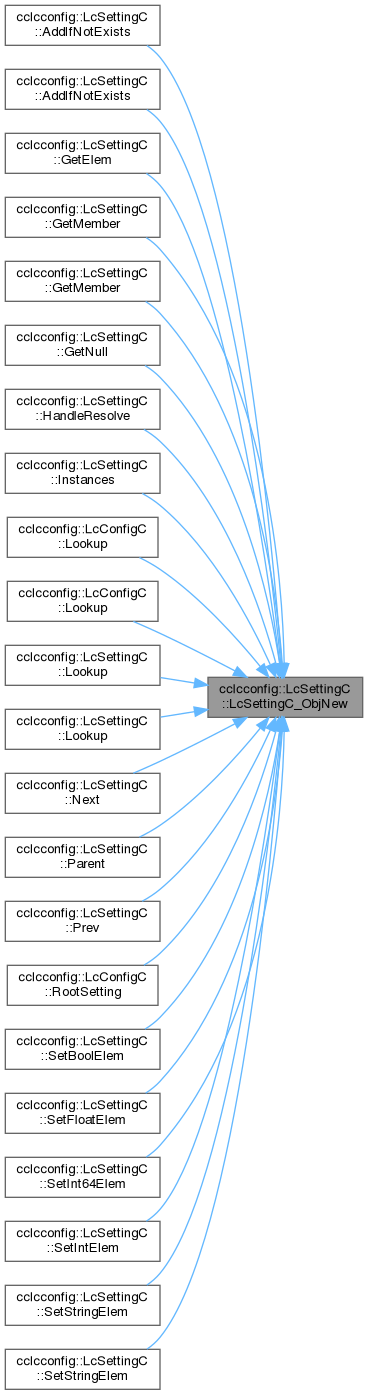

Here is the caller graph for this function:

Variable Documentation

MK_NULL_REF

thread_local LcSettingC cclcconfig::LcSettingC::MK_NULL_REF = {(MK_OBJ)0}

static

Definition at line 36 of file LcSettingC_cc.hh.
